Installing the Wireless Barricade Router
12

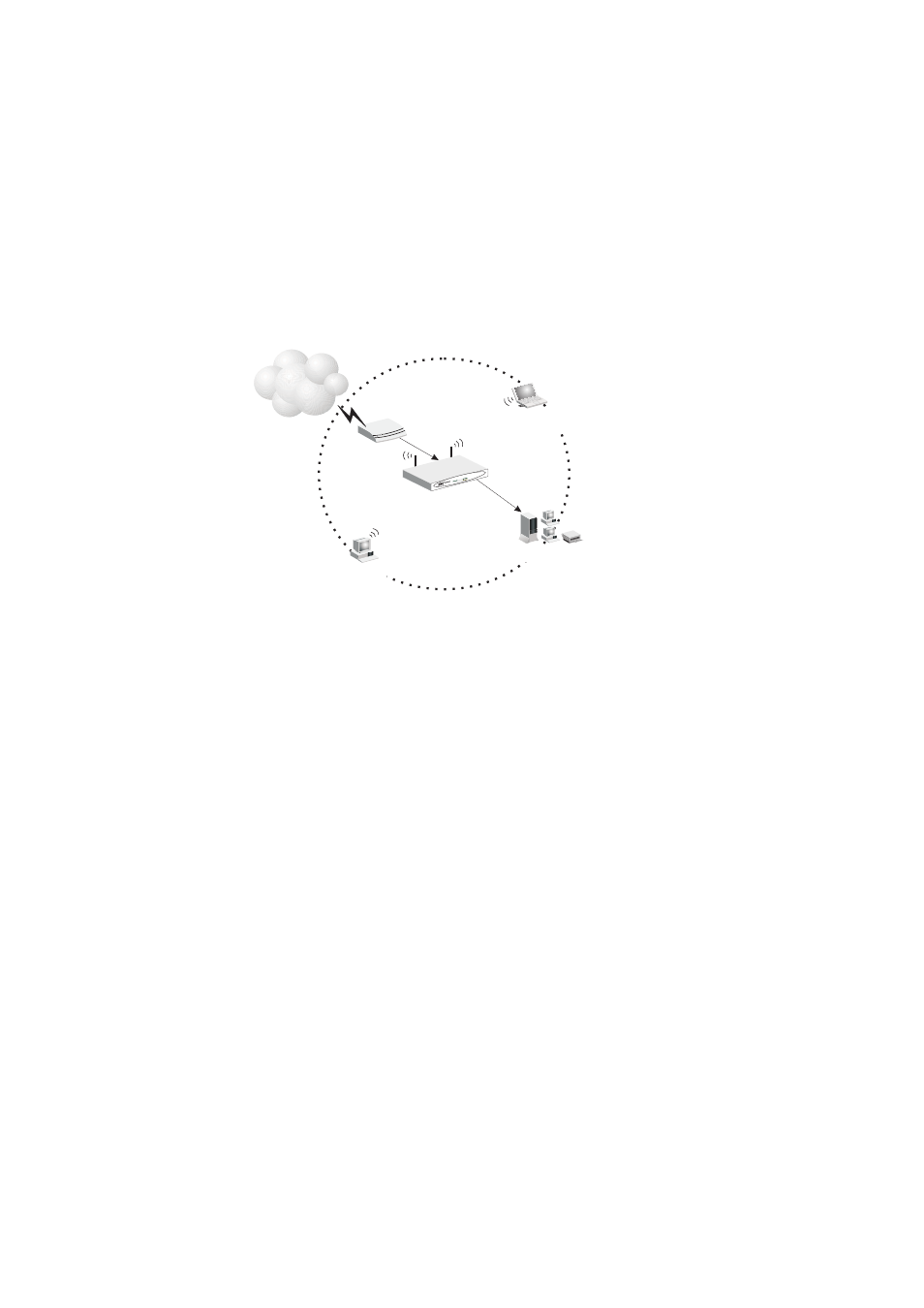

Figure 3. Making the WLAN Connections
Attach the Wireless Barricade Router to the Internet
If Internet services are provided through an xDSL or cable
modem, use unshielded or shielded twisted-pair Ethernet cable
(Category 3 or greater) with RJ-45 plugs to connect the
broadband modem directly to the WAN port on the Wireless
Barricade.
Note: When connecting to the WAN port, use 100-ohm
Category 3, 4, or 5 shielded or unshielded twisted-pair
cable with RJ-45 connectors at both ends for all
connections.
Connecting the Power Adapter
Plug the power adapter into the power socket on the Wireless
Barricade, and the other end into a power outlet. Check the
indicator marked “PWR” on the front panel to be sure it is on. If
the power indicator does not light, refer to “Troubleshooting” on
page 67.
