12 US
1 AM antenna (20)
2 VIDEO (S VIDEO/ANALOG L/R IN/
OUT) jacks (22)
3 TV/SAT (S VIDEO/ANALOG L/R IN)
jacks (22)
4 AUX (S VIDEO/ANALOG L/R IN)
jacks
5 MONITOR (S VIDEO OUT) jack (22)
6 COMPONENT VIDEO OUT jacks (22)
7 COMPONENT VIDEO OUT switch
(67, 72)
8 SPEAKERS jacks (18)
9 SUB WOOFER (ANALOG OUT) jack
(18)
0 DIGITAL (AUX COAX IN) jack
qa DIGITAL (TV/SAT OPT IN) jack (23)
qs DIGITAL (MD/DAT OPT IN) jack
qd DIGITAL (OPTICAL OUT) jack
qf FM 75
Ω
COAXIAL antenna jack (20)

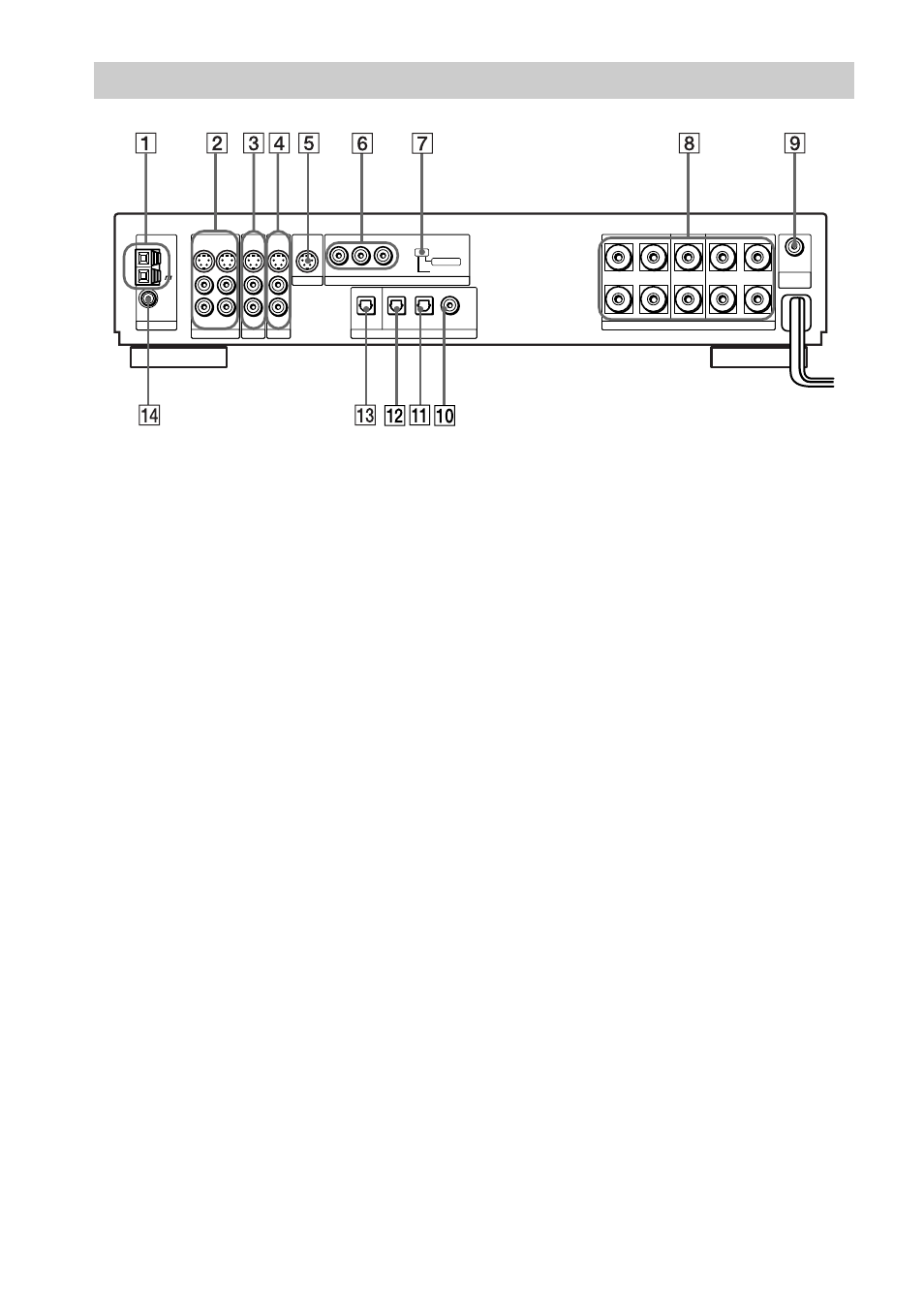

Rear Panel
