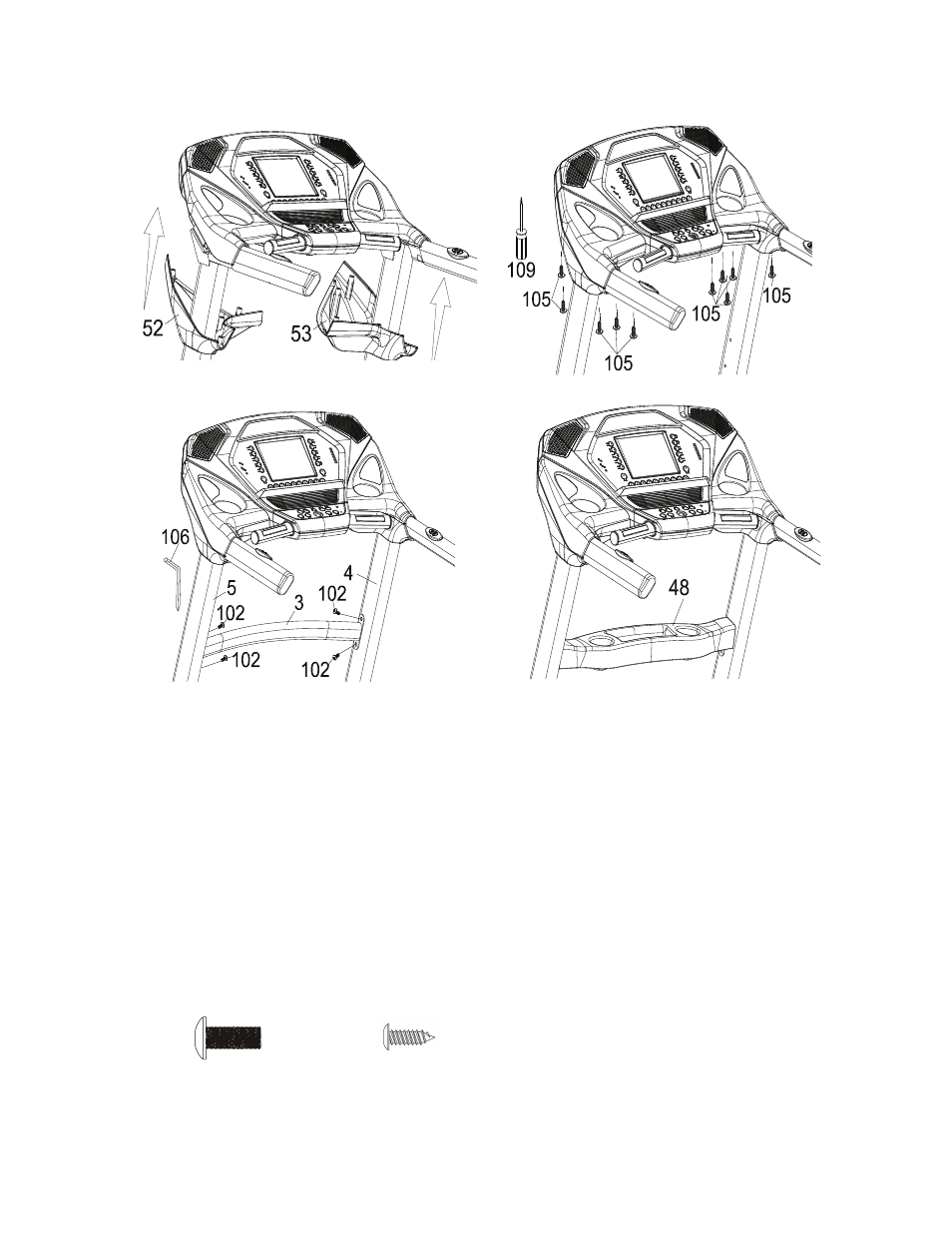

1. Attach the bottom console covers (52 & 53) to the console with five Sheet Metal Screws (105) on each side.

Tighten with the Phillips Head Screw Driver (109) or Combination M5 Allen Wrench & Phillips Head Screw
Driver (107).

2. Attach the cross brace (3) to the console mast tubes (4 & 5) with two Button Head Socket Bolts (102) on

each side. Tighten with the M6 Allen Wrench (106).

3. Firmly tighten the eight Button Head Socket Bolts inserted in Step 1 with the M6 Allen Wrench (106). Place the

accessory holder tray (48) securely on top of the cross brace (3).

STEP 3: Console Covers & Cross Brace

#102. 5/16” x 15mm

Button Head Socket

Bolt (4 pcs)

#105. 3.5 x 12mm

Sheet Metal Screw

(10 pcs)
