6

Treadmill

XT685

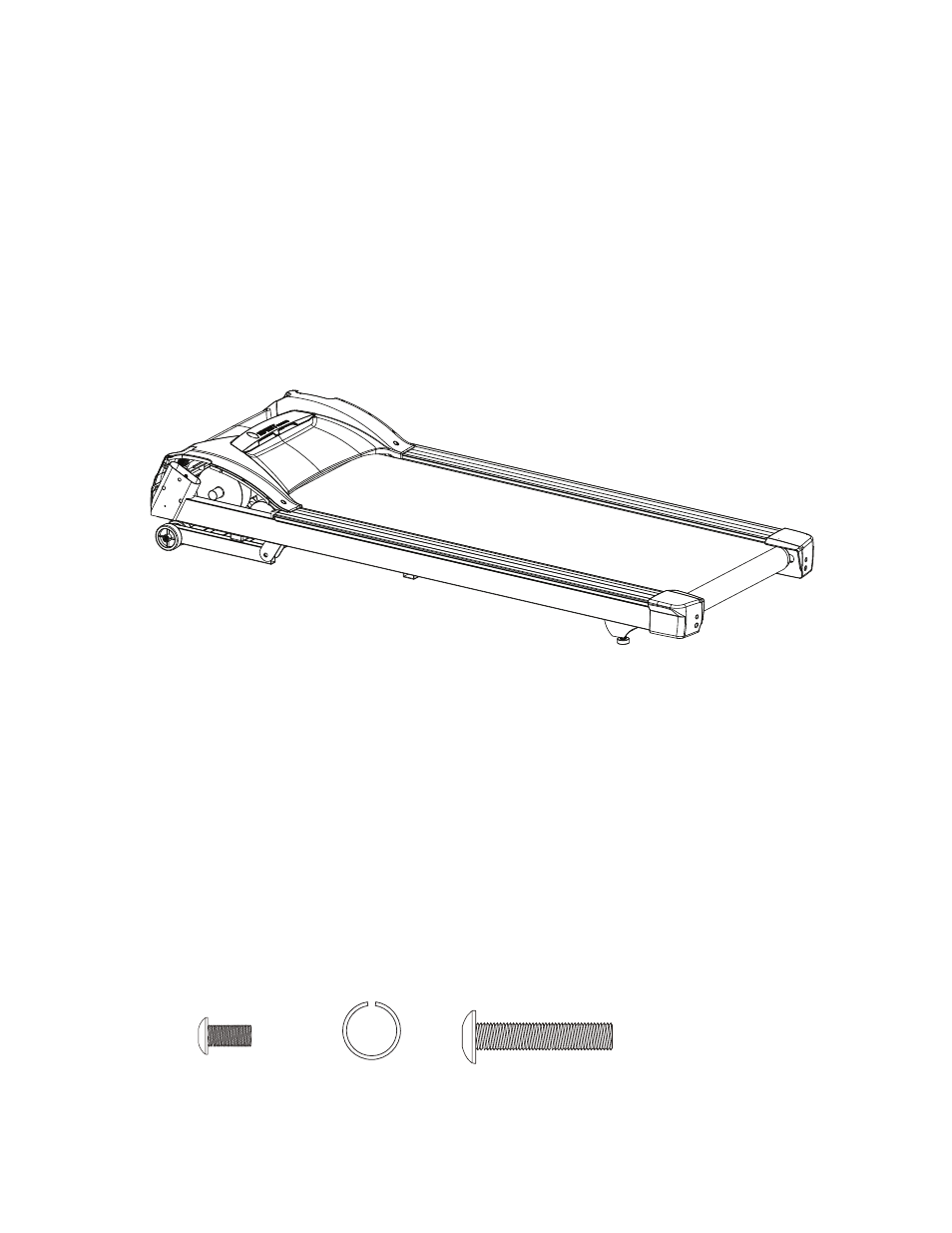

1. Slide the bottom console covers onto the console mast tubes (52 onto 5 Left side & 53 onto 4 Right side).

Make sure they are oriented as shown in the illustration.

2. Connect computer cables (32 & 33) on the right side.
3. Insert console mast tubes (4 & 5) into the frame. Caution: Be careful not to pinch the cables you

just connected. Doing so could affect the console function. Pull the end of the cable
tight as you insert the right console mast tube.

4. Insert three Button Head Socket Bolts (102) and one Button Head Socket Bolt (103) and Split Washer (108)

on each side. Partially tighten these using the M6 Allen Wrench (106).
Don’t completely tighten these until the end of step 3.

HARDWARE

STEP 1: Console Mast Tubes

#102. 5/16” x 15mm

Button Head Socket

Bolt (6 pcs)

#108. 3/8” x 2T

Split Washer

(2 pcs)

#103. 3/8” x 2”

Button Head Socket Bolt

(2 pcs)
