Heat Fab Part #
Ref Description Slant/Fin Part # (EZ Seal)
82 Concentric Vent Terminal 665197 SF35CC-1
— 6" long vent pipe 455020 9301
— 12" long vent pipe 455021 9302
— 18" long vent pipe 455022 9304
— 24" long vent pipe 455023 9305
— 37-1/2" long vent pipe 455024 9307
— Slip joint connector (6"-19") 455025 9324
— 45 Deg. elbow 455017 9311
— 90 Deg. elbow, tight radius 455018 9314
— 90 Deg. elbow, standard radius 455019 9314LR
— In-line condensate drain 455027 9321
84 Screen Term. Tee 440683 7390TEE
85 Screen Term. Straight 660548 7392GC
— Screen Term. Elbow 440678 7314TERM
— Support, 6" Clearance 440679 7323GCC
— Support, 2" Clearance 440692 7323GC2
— Support Clamp 440680 4327SS
— Firestop 440685 5318CI
87 3" x 5" Adapter 660549 73FINADP
86 GE-RTV 106, 3 oz. tube 440690
— Dow-Corning 732, 3 oz. tube 440691
— Dow-Corning 732, 10 oz. cartridge 440693

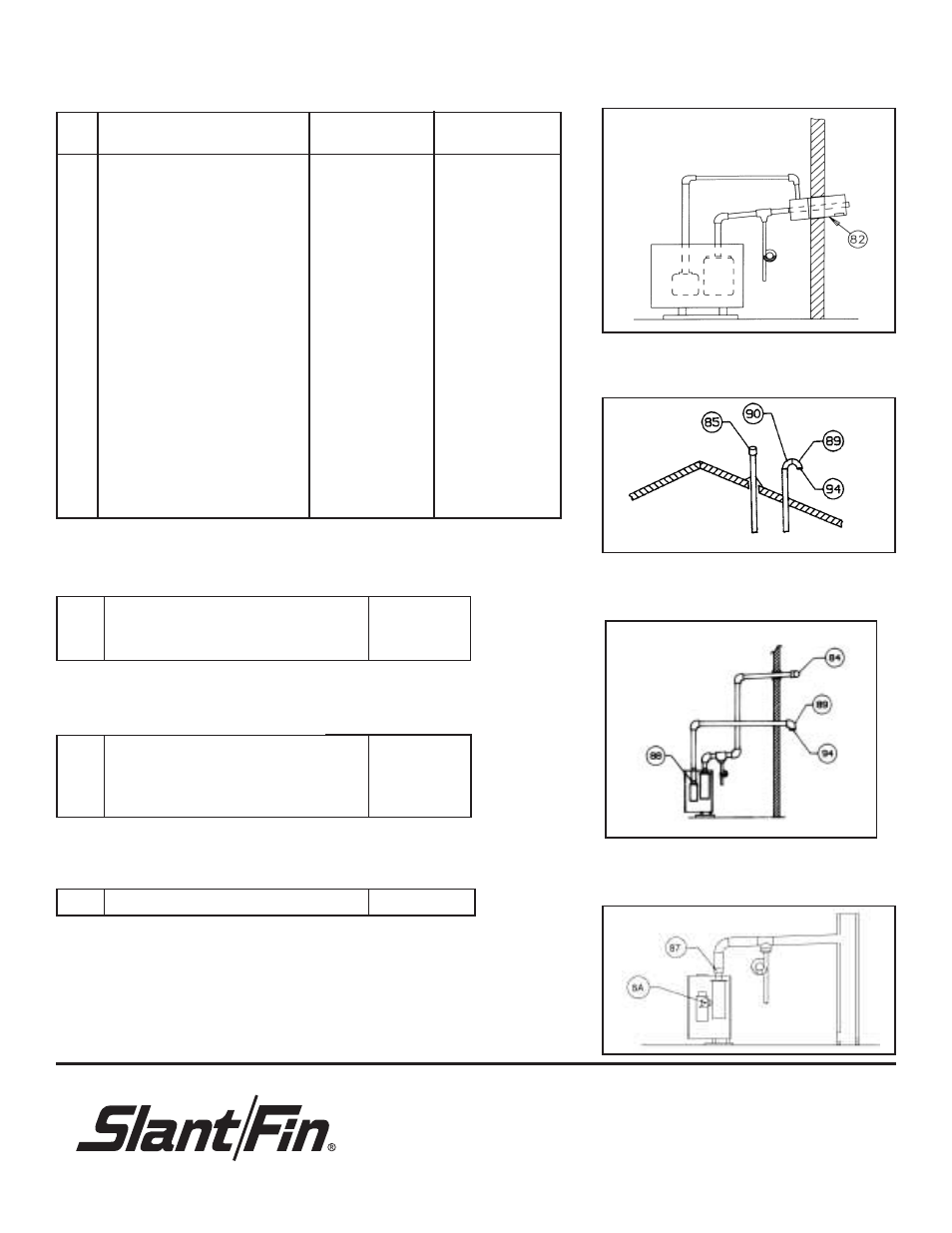

3" DIAMETER SAF-T VENT EZ SEAL SYSTEM (AL 29-4C STAINLESS STEEL)
OPTIONAL VENT SYSTEM PARTS AND KITS
Horizontal Venting Concentric Vent Terminal Kit
Part No. 665197
Ref # 82
SEALANTS FOR VENT SYSTEM
88 Coupling (sewer and drain) 660571
89 90° Elbow (Schedule 40) 660577
90 90° Street Elbow (Schedule 40) 660578
94 3" Air Inlet Screen (stainless) 660236
3" PVC FOR AIR INTAKE SYSTEM
MISCELLANEOUS PARTS
— Wall Passage Thimble* 440695
Vertical Venting Roof Termination Kit
Part No. 665192
Includes Ref # 85, 86, 89, 90, 94
Chimney and “B” Vent Adapter Kit
Part No. 665194
Includes Ref # 86, 87, 5A
Horizontal Venting Separation Kit
Part No. 665193
Includes Ref # 84, 86, 89, 94
* Not needed where concentric vent terminal used. Does require use of a
slip-joint connecter for vent passage.
