Step 1: Unpacking
Step 1: Unpacking
Check that you have the following items:
• Audio/video cord (pinplug
× 3 y pinplug × 3) (1)
• Mains lead (1)
• Aerial cable (1)
• Remote commander (remote) (1)
• R6 (size AA) batteries (2)

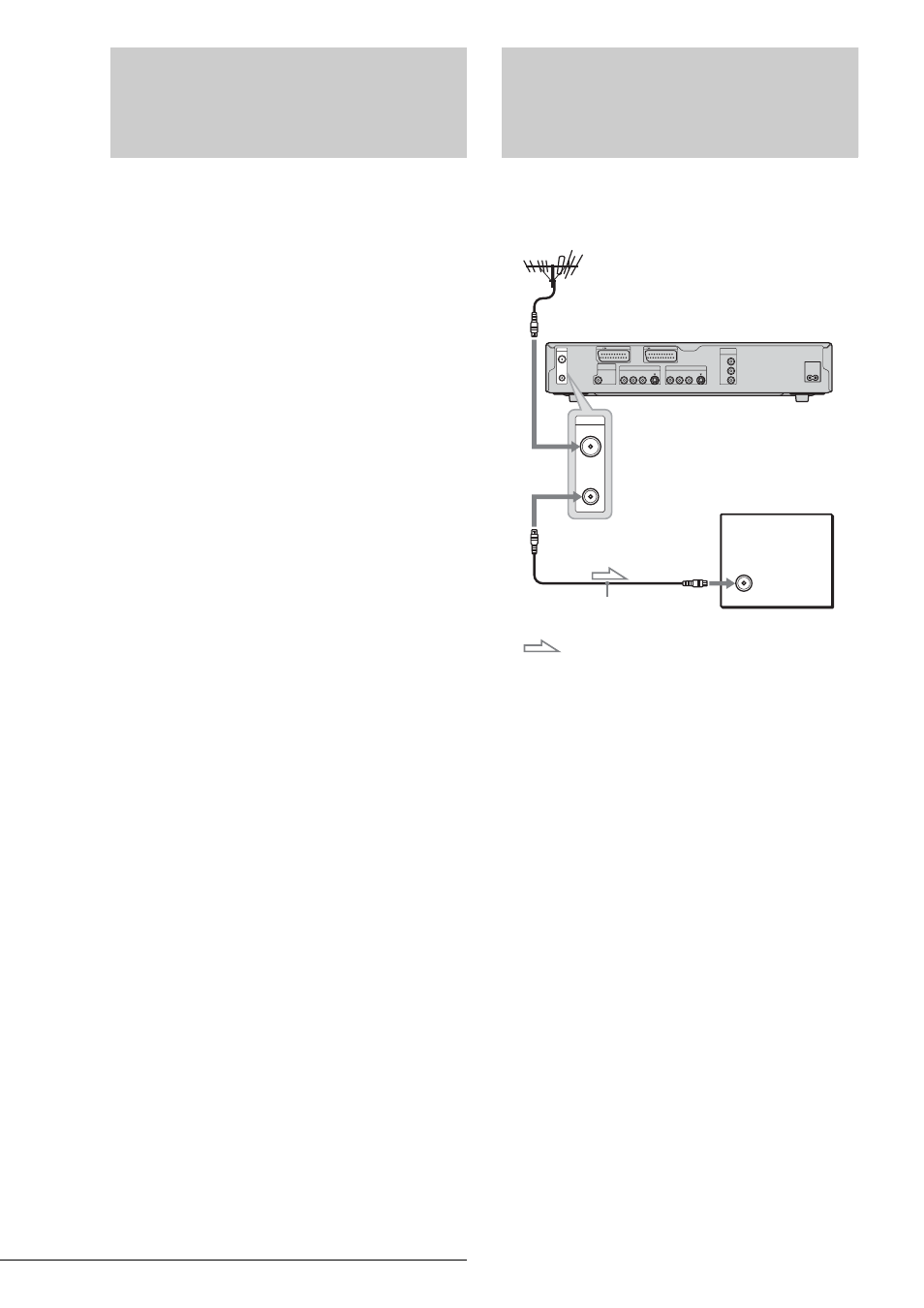

Step 2: Connecting the
Aerial Cable
Connect the aerial cable by following the steps below. Do not
connect the mains lead until you reach “Step 5: Connecting the
Mains Lead” (page 21).
a
Disconnect the aerial cable from your TV and
connect it to AERIAL IN on the rear panel of
the recorder.
b
Connect AERIAL OUT of the recorder to the
aerial input of your TV, using the supplied
aerial cable.
~ AC IN
LINE 2 OUT
S VIDEO VIDEO R-AUDIO-L
COMPONENT VIDEO OUT
CB
Y
CR
LINE 4 IN
S VIDEO VIDEO R-AUDIO-L
LINE 1 - TV AERIAL
IN
OUT
LINE 3/DECODER
DIGITAL OUT PCM/DTS/MPEG/ DOLBY DIGITAL
COAXIAL
AERIAL
IN
OUT
DVD recorder
TV
to aerial input
to AERIAL IN
to AERIAL OUT
Aerial cable (supplied)
: Signal flow
