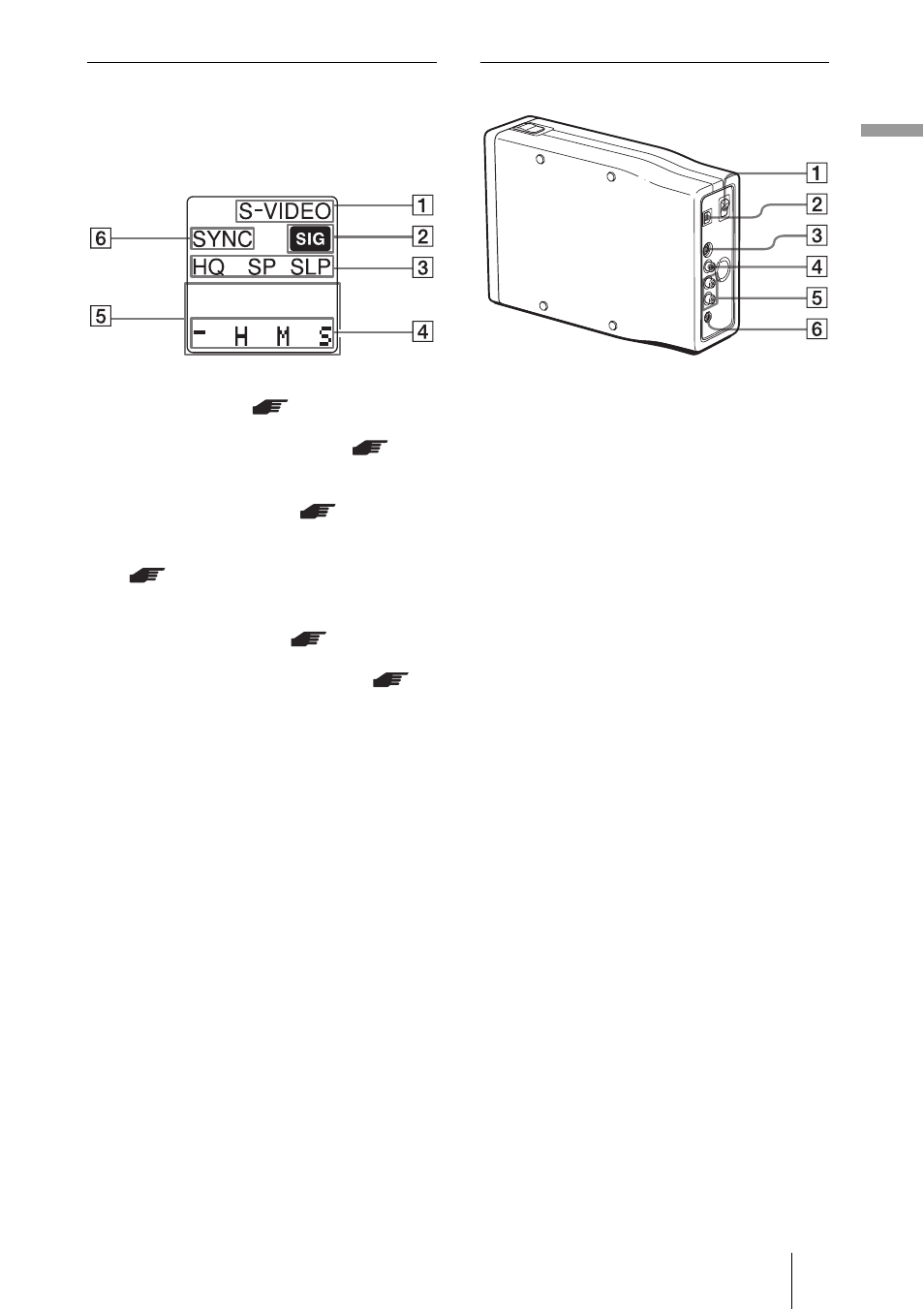

Display Window
The display window works only when the
drive is used as the stand-alone DVD
recorder (p. 11), and indicates the following:
A Input signal (
p. 14, 18)
B Video signal indicator (
p.
14, 18)
C Recording mode (
p. 21)
D Status and warning messages
( p. 48)
E Time display (time passed or
time remaining) ( p. 17, 20)
F Synchronized recording (
p.
14)
Rear Panel
A Power switch
Turns the drive on or off.
B USB connector
Connect a USB cable when connecting
the drive to a computer.
C S VIDEO IN connector
Connect an S VIDEO cable (not
supplied) when connecting the drive to a
video device such as a video camera or
VCR.
D VIDEO IN connector
Connect a video plug of AV cable (not
supplied) when connecting the drive to a
video device such as a video camera or
VCR.
E AUDIO IN L/R connectors
Connect audio plugs of AV cable (not
supplied) when connecting the drive to a
video device such as a video camera or
VCR.
F DC IN jack
Connect the supplied AC power adaptor.
