Parts and controls

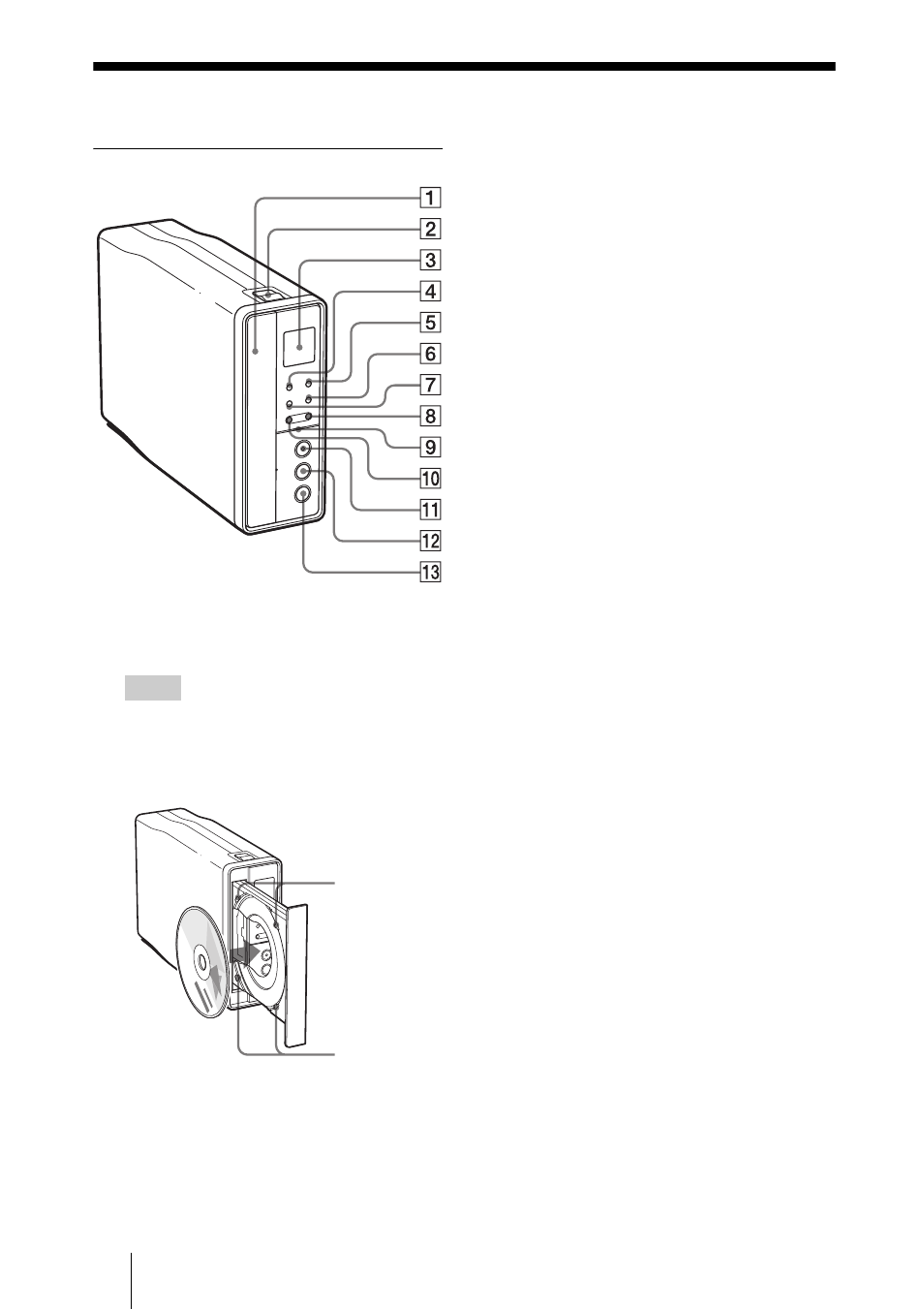

Front Panel

A Disc tray

Insert discs here, label side to the left.

Hint

When you insert a disc into the drive, make
sure that you set the disc inside the two lower
pins. When using the drive horizontally,
make sure that it is under the four pins.

B Eject button

Opens and closes the disc tray.

C Display window

D TIME button

Displays time passed or time remaining.

E SYNC (synchronize) button

Activates the synchronized recording.

F INPUT SELECT button

Selects an input signal to be recorded.

G REC MODE button

Selects a recording mode.

H SELECT button

Selects the mode of the function.

I Busy indicator

Indicates the drive status.
Lit (green)
• The power is on.
Blinking (greenish orange)
• The drive is accessing the disc, such as

reading, playing or writing.

Off
• The power is off.

J FUNCTION/ENTER button

Selects a function to be operated.

K REC (record) button

Starts recording videos.

L PAUSE button

Pauses recording.

M STOP button

Stops recording.

Pins
