Page 2
2
Package Contents
•
(1) Cyber 1S1P PCI board
•
(1) Driver CD
•
(1) Quick Installation Guide

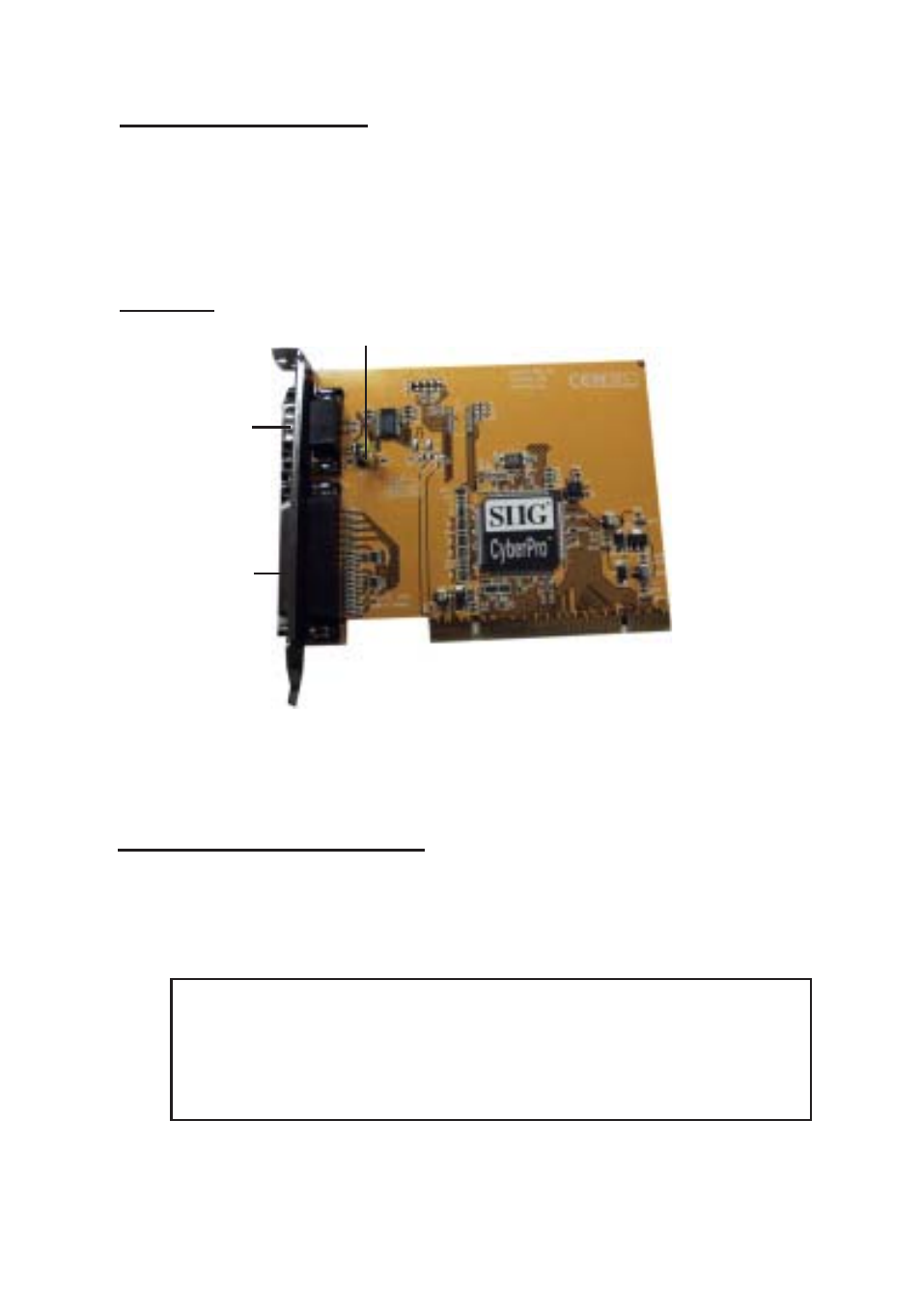

Layout
Figure 1. Layout
Jumper Settings (JP1)
Open = 0 volts (default)
Short 1-2 = 5v
Short 2-3 = 12v
Note: Most serial devices do not require additional
power through the serial port. Refer to your serial
device's manual for more information. This jumper
can be removed if it's not used.
JP1
Serial Port
Parallel Port
