SIIG 04-0322B - Manual (Page 3)

3
• Remove your computer’s cover and install the card
in an available PCI slot.
• Push the board down firmly, but gently, until it is
well seated. Install a slot bracket holding screw to
secure the card.
• Now go to Device Connection to connect your
Serial ATA hard disk drive(s).
Device Connection
If you plan to use more than two Serial ATA channels,
you will need to purchase additional Serial ATA data
and power cables.
1.
Install hard disk drive(s) into chassis.
2. Connect the Serial ATA hard disk drive to the system
power supply using the Serial ATA power cable.
3. Connect one end of the Serial ATA cable to the hard
disk drive.

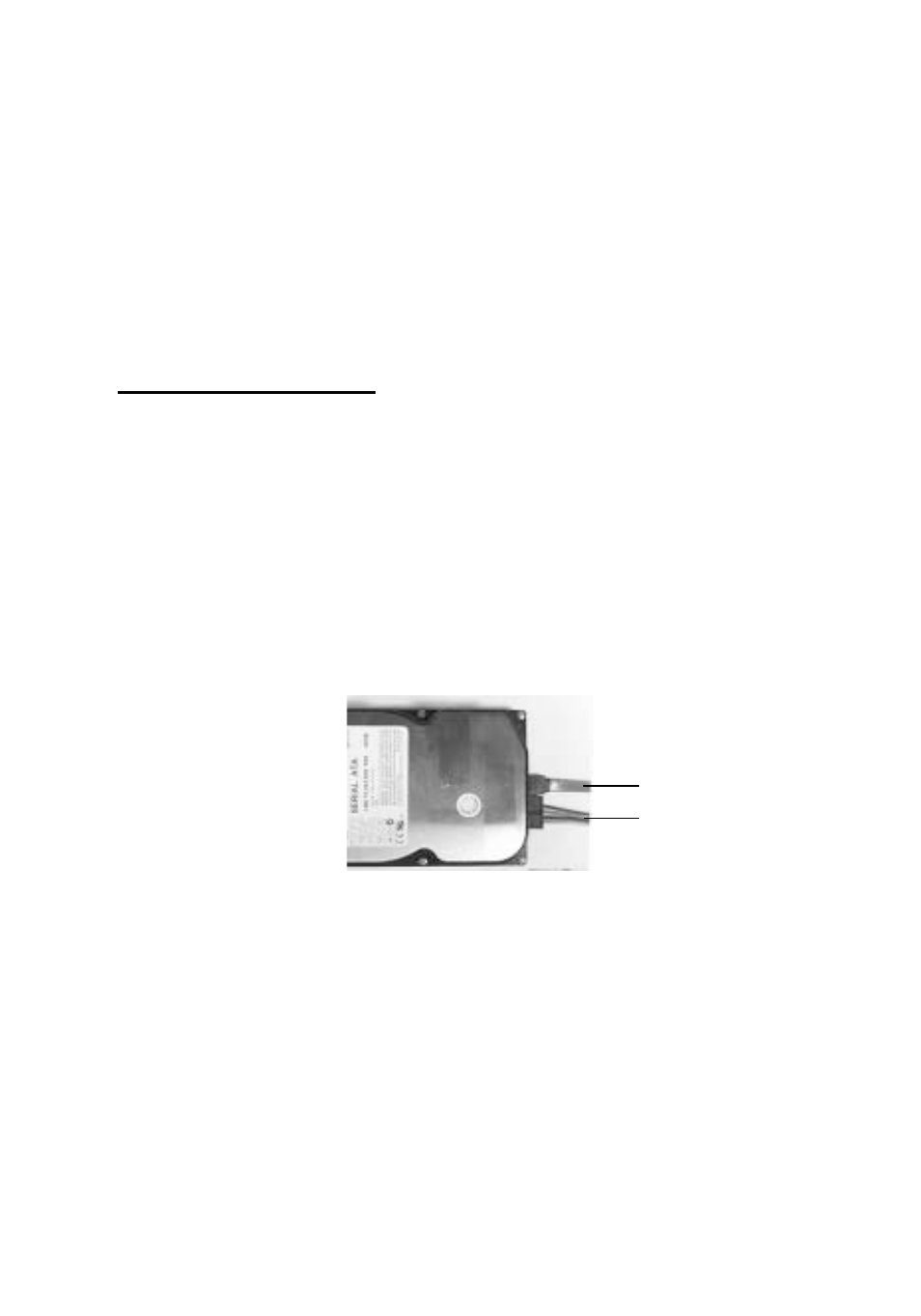

Serial ATA cable
Serial ATA power cable
Figure 3. Hard disk drive connections
4. Attach the other end of the Serial ATA cable to the
Serial ATA connector on the board.
5. Follow the same instructions when connecting
additional hard drives. Device connection is now
complete.
