2
Package Contents
• (1) Serial ATA 4-Channel PCI board
• (1) Driver CD
• (2) Serial ATA cable
• (1) Dual connector Serial ATA power cable
• This quick installation guide

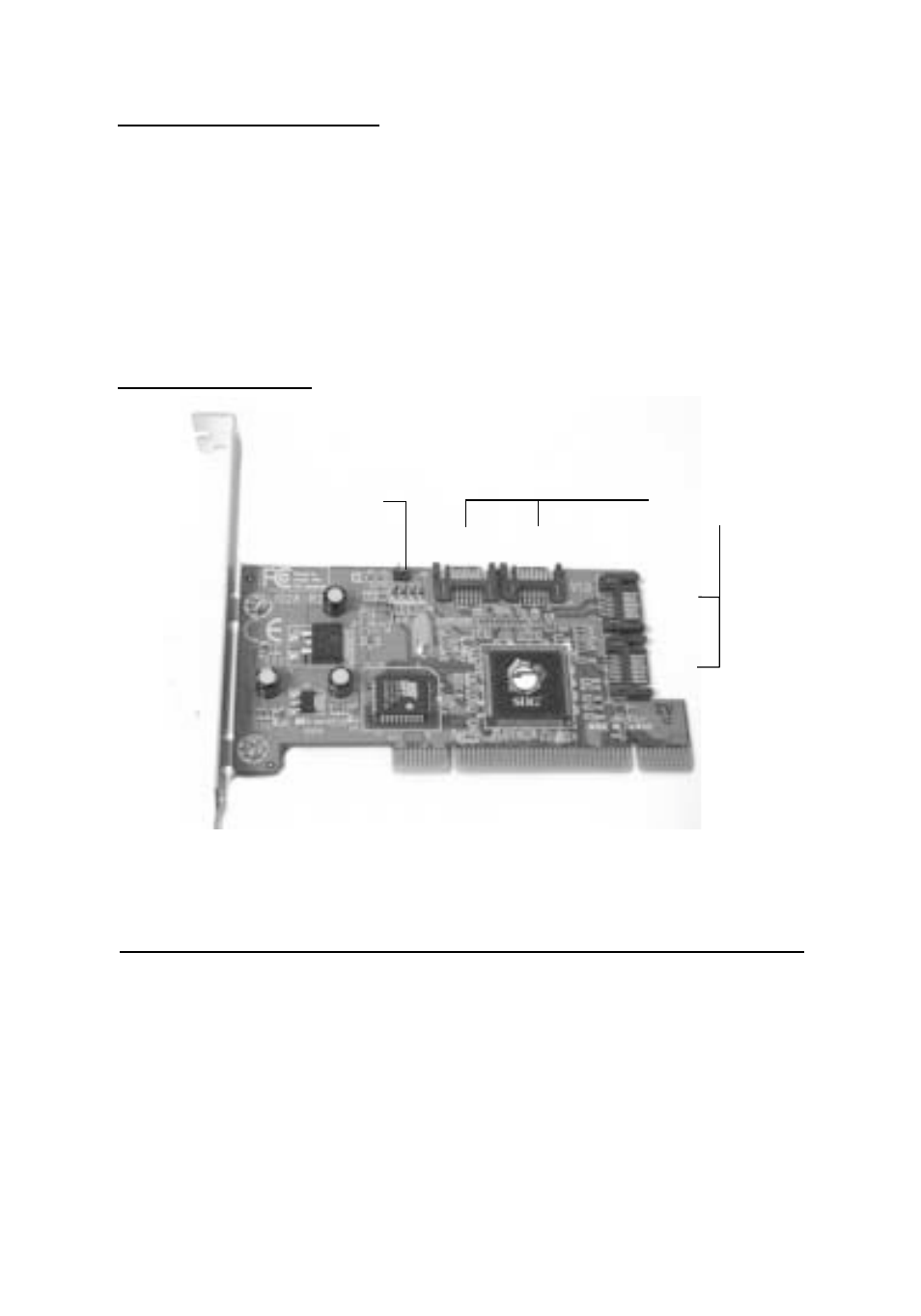

Board Layout
Serial ATA
Connectors
CN4 CN3
CN2
CN1
Hard Disk
LED Pins
Figure 1. Serial ATA 4-Channel PCI Layout
Hardware Installation
General instructions for installing the card are provided
below. Since the design of computer cases and
motherboards vary, refer to your computer’s reference
manual for further information, if needed.
•
Turn OFF the power to your computer and any
other connected peripheral devices. Unplug the
computer's power cord.
