Check the connection status between the camcorder and TV. The TV screen may not display the
right video information if the camcorder and TV are connected incorrectly.
When connecting the Audio/Video, make sure to match the color of the cable plugs to the TV
jacks.
We recommend that you use the AC power adaptor as a power source for the camcorder.
When “TV Display” is set to “Off,” the OSD (On-Screen-Display) does not appear on the TV
screen. page 57
•
•
•
•

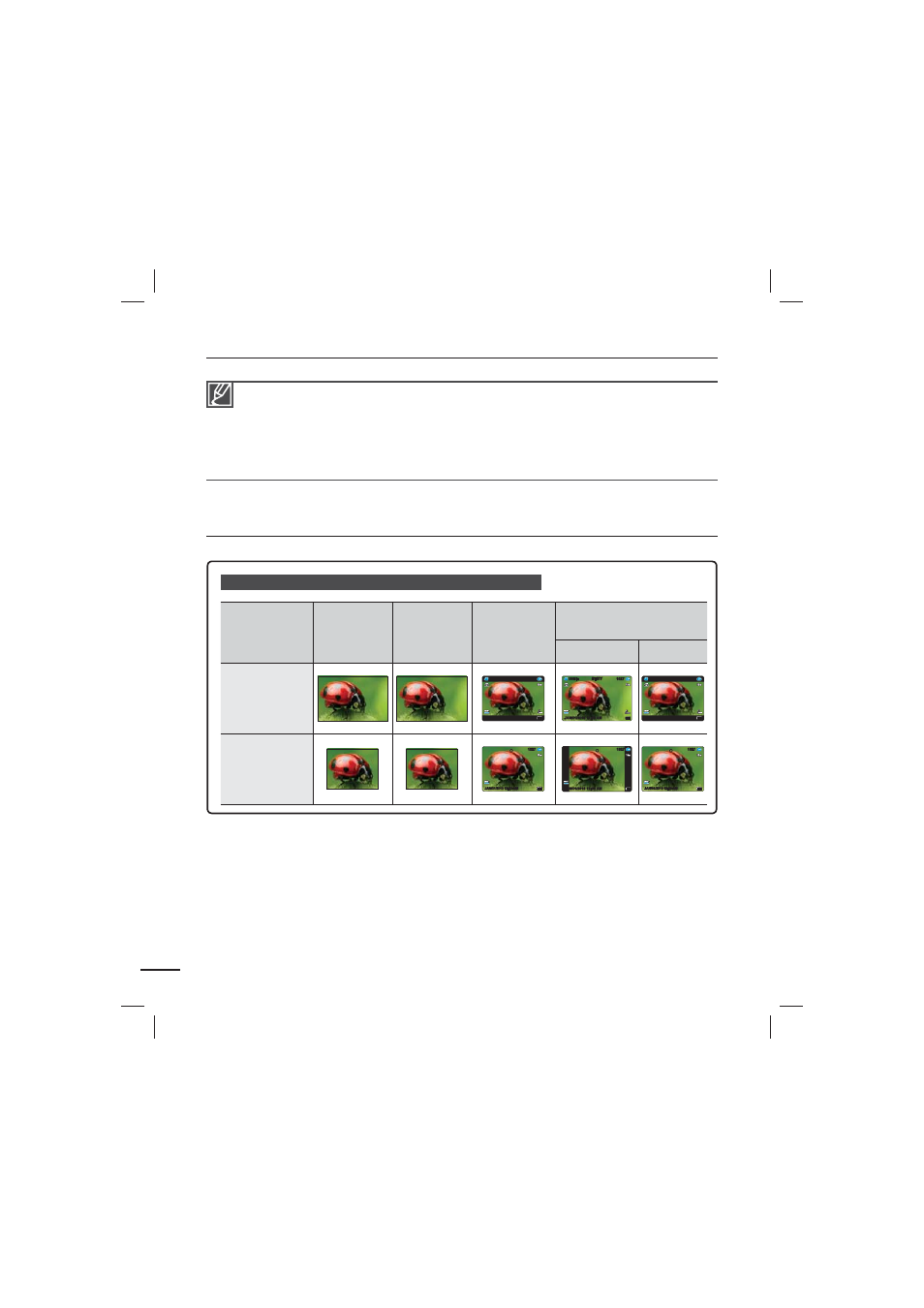

Image appearance depends on LCD or TV screen ratio
Recording ratio
Video
LCD
TV
16:9
4:3
Images recorded
in a 16:9 ratio
80Min
JAN/01/2010 12:00 AM
1627
STBY
80Min
JAN/01/2010 12:00 AM
1627
STBY
80Min
JAN/01/2010 12:00 AM
1627
STBY
Images recorded
in a 4:3 ratio
JAN/01/2010 12:00 AM
1627
●
JAN/01/2010 12:00 AM
1627
●
JAN/01/2010 12:00 AM
1627
●
