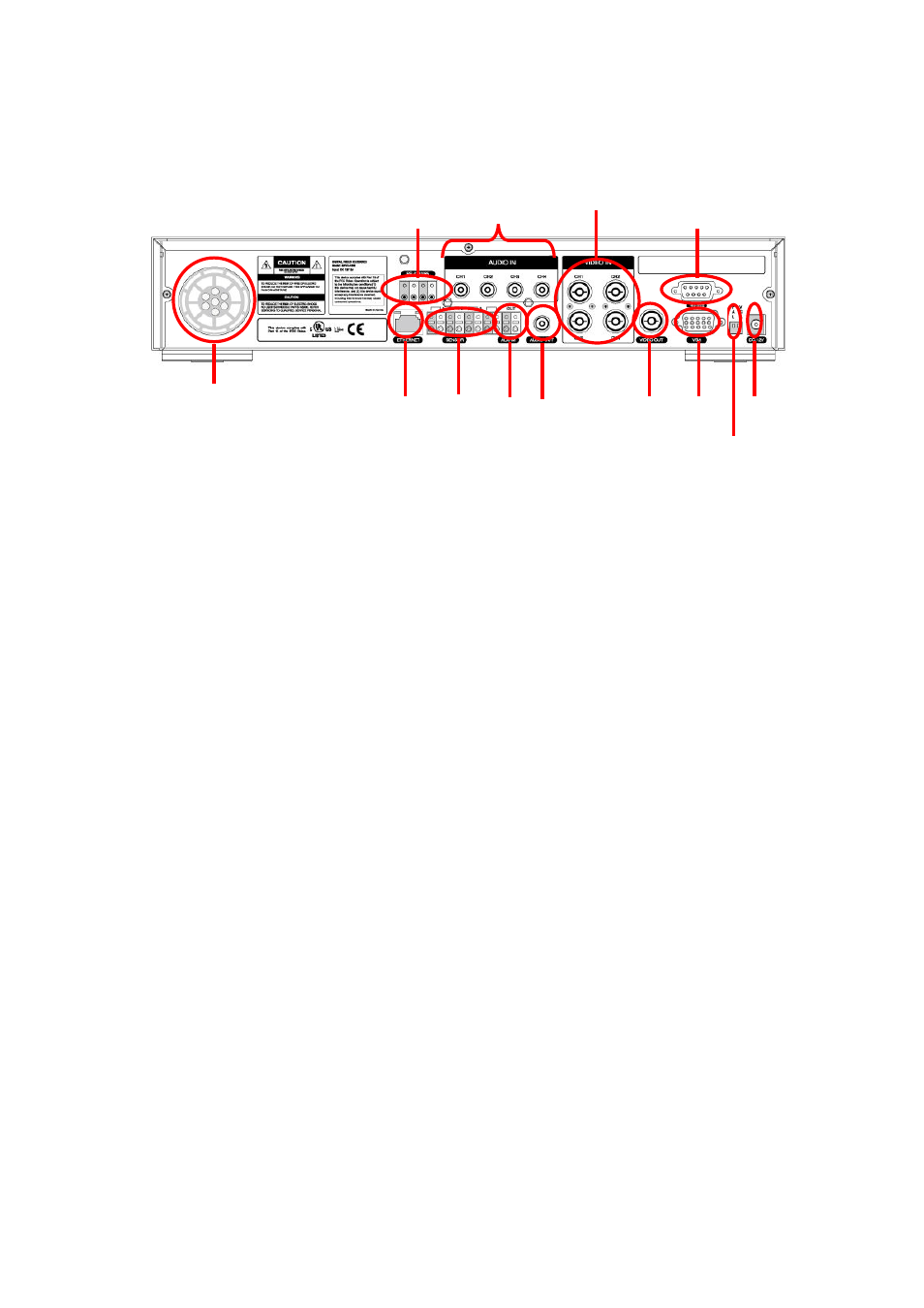

2.3.2 Rear Connection Terminals
① Video in : Camera Input(NTSC/PAL)
② Video out : Composite Video Output
③ VGA : VGA output for PC monitor
④ RS-232
⑤ Sensor in : Sensor Input
⑥ Alarm out : Alarm Output
⑦ LAN : RJ45 connector
⑧ DC12V : DC12V Power connector
⑨ AUDIO IN : Audio Input
⑩ AUDIO OUT : Audio Output
⑪ Switches
NTSC/PAL, BNC/VGA Select Switch
⑫ RS-485/422 : PTZ Camera control use
⑬ Fan
②
③
④
⑤
⑫
⑦
⑧
⑩
⑪
⑥
⑬
①
⑨
