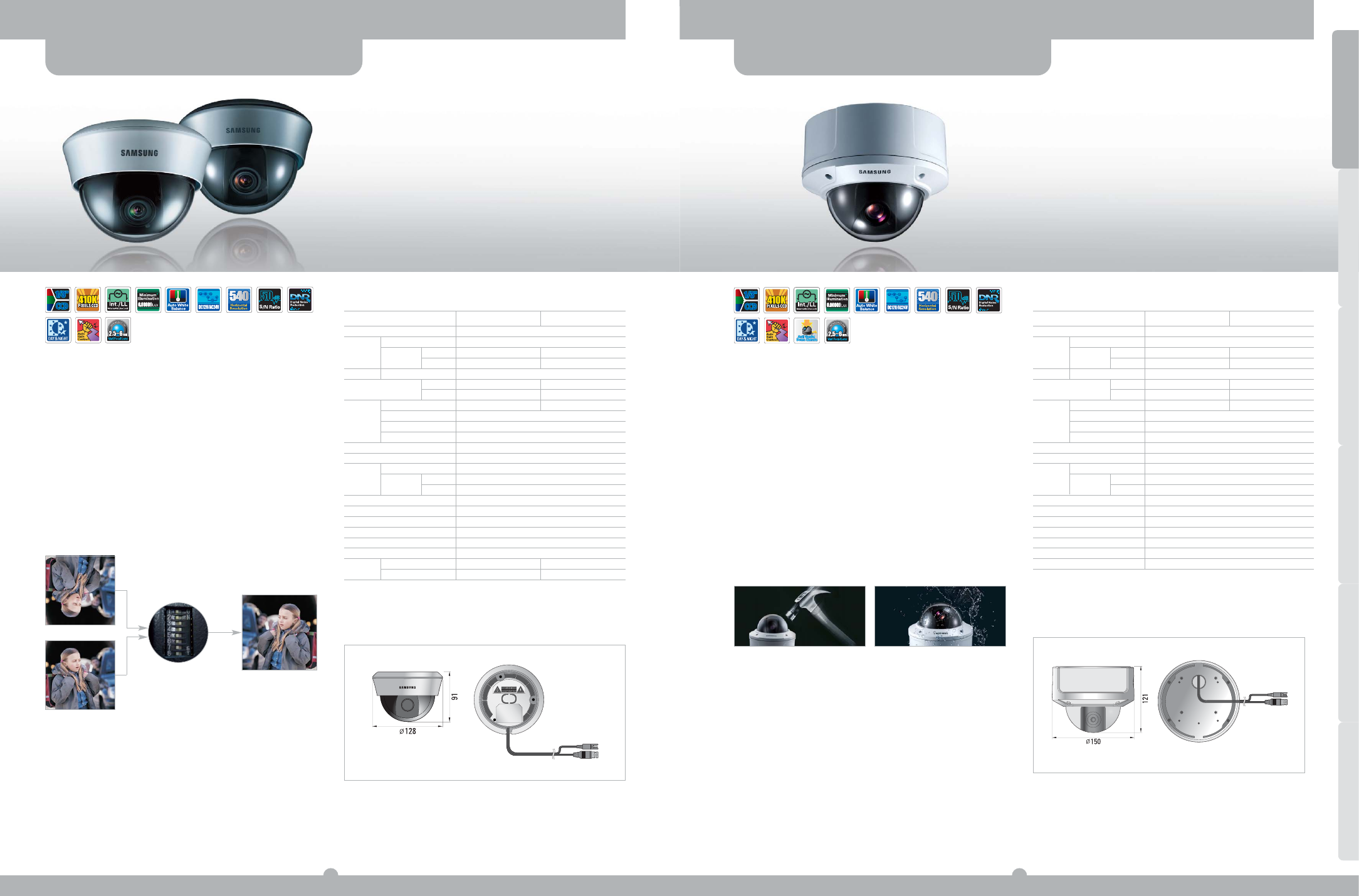

SCC-B5352/B5353
SCC-B5354/B5355
1/3" Color Vari-Focal Dome Camera
Features
Dimensions (unit:mm)
• Horizontal resolution : 540 TV Lines
• Minimum scene illumination : (SCC-B5352 : 0.0009Lux
SCC-B5353 : 0.0009(color)/0.00009(B/W)Lux)
• Horizontal and vertical mirroring
• 3-Axis Design
• DNR (Digital Noise Reduction)
• Variable focal length of lens (2.5-6mm / 2.9-10mm)
Specifications
Summary
The SCC-B535X series cameras are variable dome cameras that reduce
or eliminate the image blurring effect that results from video capture of a
moving object. With its interior-friendly color and elegant design, the
SCC-B535X series cameras are suited for luxurious interior spaces.
Camera Type 1/3" Day & Night Color Fixed Dome Camera
Image Device Super-HAD IT CCD
Effective NTSC 811(H) x 508(V) 768(H) x 494(V)
Pixels PAL 795(H) x 596(V) 752(H) x 582(V)
Scanning System NTSC : 525 Line, 2:1 Interlace / PAL : 625 Line, 2:1 Interlace
Minimum Scene Color 0.0009(Sens up 128X,15IRE)Lux 0.0009(Sens up 128X,15IRE)Lux
Illumination B/W 0.0009(Sens up 128X,15IRE)Lux 0.00009(Sens up 128X,15IRE)Lux
Functions Day & Night Yes(Electric) Yes(Moving Filter)
Sens Up(LSS) Off, AUTO 128X
BLC Yes(On/Off)
FLC Yes(On/Off)
Horizontal Resolution 540TV Lines
Video Output VBS 1.0Vp-p (75 Ω, composite)
Lens Focal Length 2.5~6.0mm
Viewing Horizontal 108°(Wide) ~ 46°(Tele)
Angle Vertical 80°(Wide) ~ 34°(Tele)
Operating Temperature -10°C~50°C
Operating Humidity Within 90% RH
Power Requirement AC24V / DC12V compatible
Power Consumption 1.7W
Weight 327g
Dimensions 128(ø) x 91(H)mm
Body Color White SCC-B5352 SCC-B5353
Titan Silver SCC-B5352S SCC-B5353S
Model SCC-B5352 SCC-B5353
Setting function switch
3. H-REV ON/OFF
4. V-REV ON/OFF
H/V-REV ON
Convenient Installation
The SCC-B535X camera uses horizontal and vertical mirroring functions to provide
correct images regardless of the cameras installation environment.
H-REV Off
V-REV Off
15
NEW PRODUCTS_CAMERAS Video Security System
NEW PRODUCTS
CAMERAS
MONITORS
DVRS
NETWORK SECURITY
CONTROLLERS
14
NEW PRODUCTS_CAMERAS Video Security System
SCC-B5392/B5393
SCC-B5394/B5395
1/3" Color Vari-Focal Anti Vandal Dome Camera
Features
Dimensions (unit:mm)
• Horizontal resolution : 540 TV Lines
• Minimum scene illumination : (SCC-B5392 : 0.0009Lux
SCC-B5393 : 0.0009(color)/0.00009(B/W) Lux)
• External impact protection, water resistant and dust resistant (IP66 Grade)
• Horizontal and vertical mirroring
• 3-Axis Design • IP66 Grade
• DNR (Digital Noise Reduction)
• Variable focal length of lens (2.5-6mm / 2.9-10mm)
Summary
The SCC-B539X series cameras provide clear 540TVL images by using
Digital Signal Processing and Sony's Super-HAD 410,000 pixel CCD chip
which specializes in processing horizontal correction and high frequency
signals. The 3-axis dome design ensures easy installation even on an
inclined surface.
External impact protection, waterproof and
dust proof
The SCC-B539X camera uses a polycarbonate dome cover, so that it is resistant to
external impact. The camera housing is also water resistant and dust proof.
Specifications
Camera Type 1/3" Day & Night Color Fixed Dome Camera
Image Device Super-HAD IT CCD
Effective NTSC 811(H) x 508(V) 768(H) x 494(V)
Pixels PAL 795(H) x 596(V) 752(H) x 582(V)
Scanning System NTSC : 525 Line, 2:1 Interlace / PAL : 625 Line, 2:1 Interlace
Minimum Scene Color 0.0009(Sens up 128X,15IRE)Lux 0.0009(Sens up 128X,15IRE)Lux
Illumination B/W 0.0009(Sens up 128X,15IRE)Lux 0.00009(Sens up 128X,15IRE)Lux
Functions Day & Night Yes(Electric) Yes(Moving Filter)
Sens Up(LSS) Off, AUTO 128X
BLC Yes(On/Off)
Anti Vandal Yes(IP66 Grade)
Horizontal Resolution 540TV Lines
Video Output VBS 1.0Vp-p (75 Ω, composite)
Lens Focal Length 2.5~6.0mm
Viewing Horizontal 108°(Wide) ~ 46°(Tele)
Angle Vertical 80°(Wide) ~ 34°(tele)
Operating Temperature -10°C~50°C
Operating Humidity Within 90% RH
Power Requirement AC24V / DC12V compatible
Power Consumption 1.7W
Weight 960g
Dimensions 150(ø) x 121(H)mm
Body Color EMS PEARL WHITE
Model SCC-B5392 SCC-B5393
Impact Waterproof
* SCC-B5354 is same as SCC-B5352 except for Focal length of Lens. (2.9~10mm)
SCC-B5355 is same as SCC-B5353 except for Focal length of Lens. (2.9~10mm)
* SCC-B5394 is same as SCC-B5392 except for Focal length of Lens. (2.9~10mm)
SCC-B5395 is same as SCC-B5393 except for Focal length of Lens. (2.9~10mm)
