XT385 Treadmill 8
1. Connect the Speed Adjustment Switch Cable ( 54) to the Speed Cable (Upper)(37). Connect the
Incline Adjustment Switch Cable ( 55) to the Incline Cable (Upper)(38). Connect the Computer
Cable (Middle)( 50) and Computer Cable (Upper)(48).
2. Insert Console Assembly ( 52) into right and left Uprights (4) and (5) and secure with four Button
Head Socket Bolts ( 133) and four Split Washers (113) using the M6 Allen Wrench (132). Now go
back and completely tighten the ten bolts inserted in Step 1 that join the upright tubes ( 4 & 5) to
the frame base ( 2).

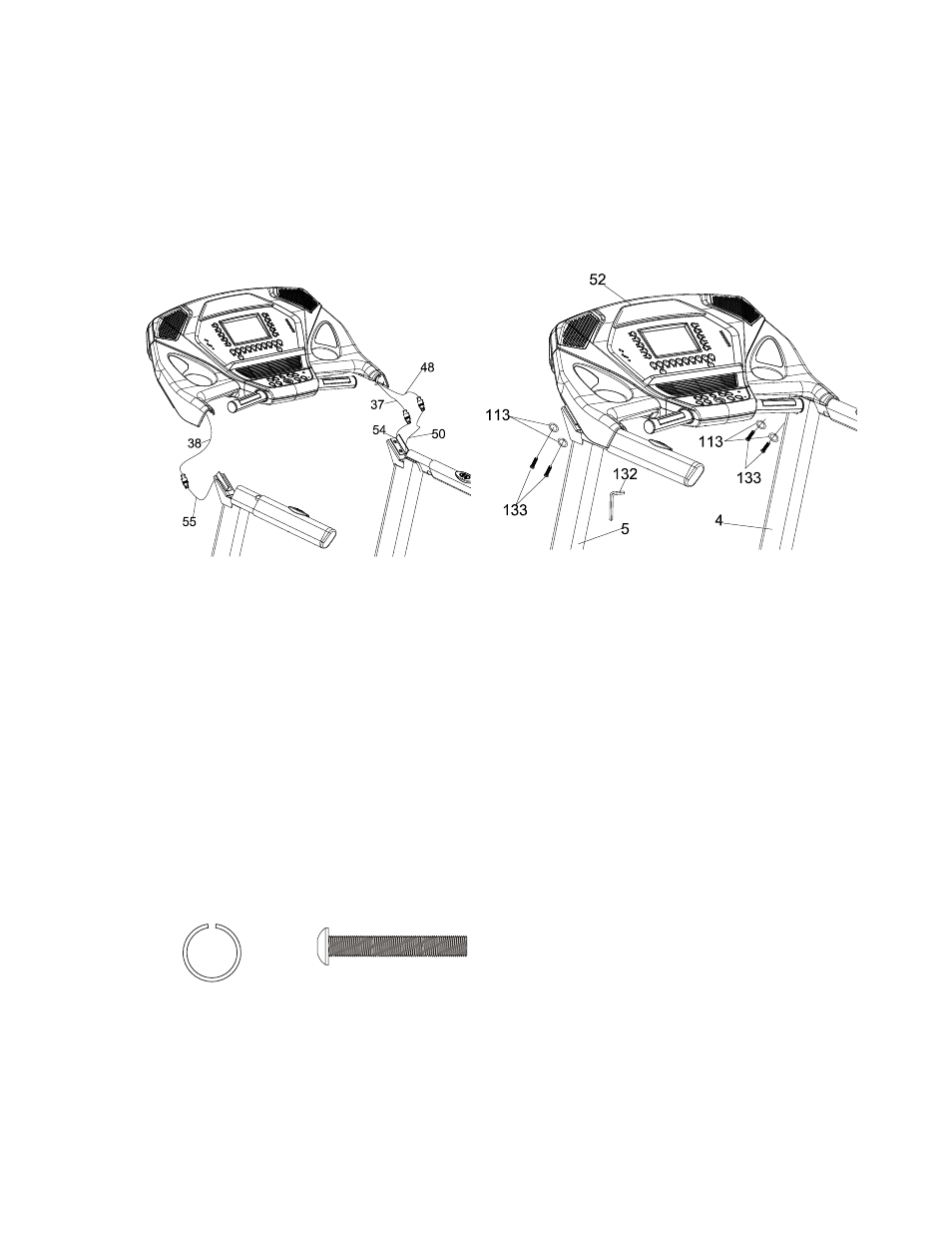

CONSOLE ASSEMBLY
2
HARDWARE
#133. 3/8” x 1-3/4”
Button Head Socket
Bolt (4 pcs)
#113. 3/8” x 2.0T
Split Washer (4 pcs)
