SMOOTH 9.17HRO MOTORIZED TREADMILL
Visit us at: www.smoothfitness.com
13
ASSEMBLY
STEP 2:

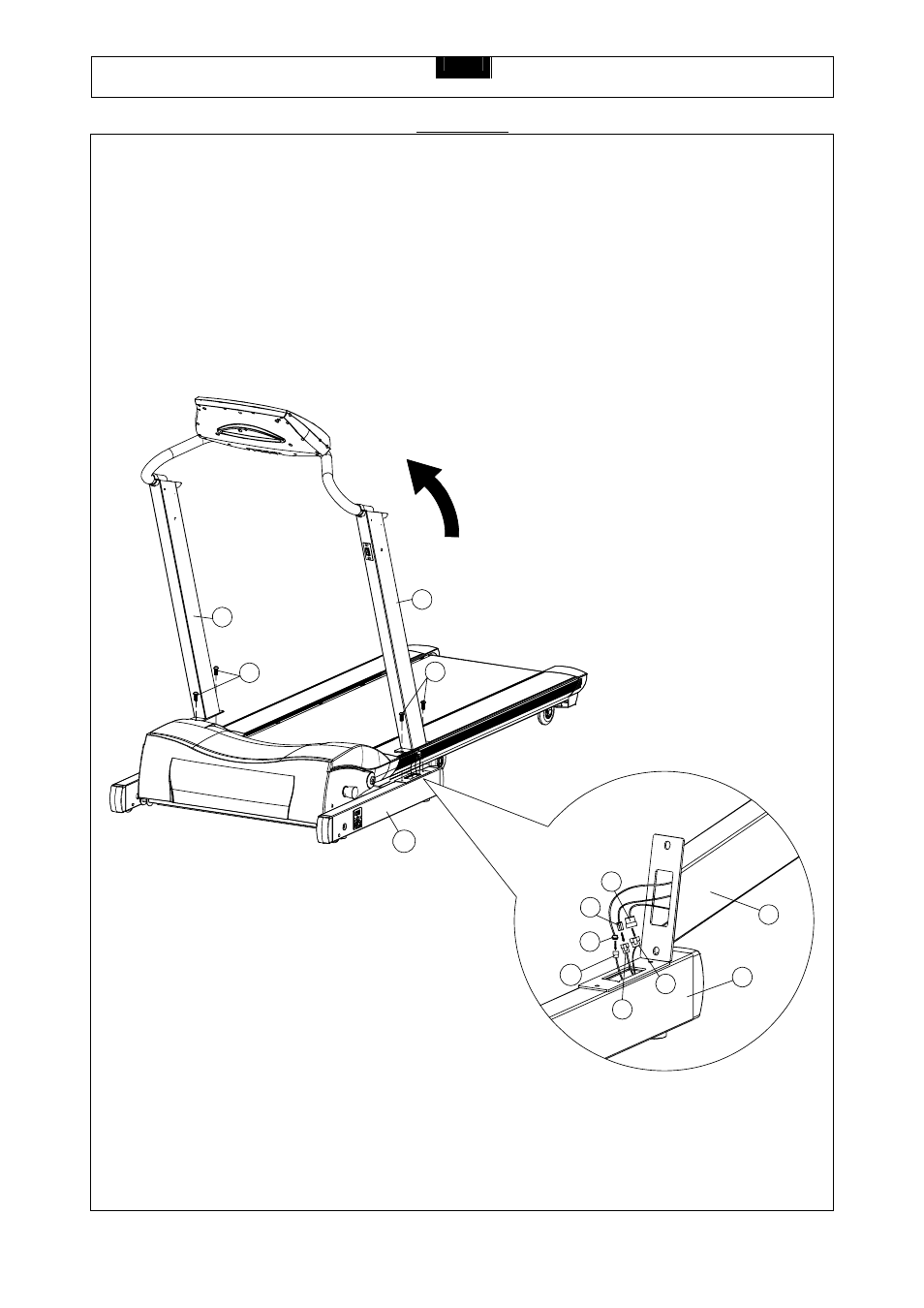

First connect the wires between Left Upright (30) and Base Frame (55). Rotate up the Left Upright (30) and Right
Upright (36) then secure it to the Base Frame (55) with four M8 x 15mm Allen Head Screws (19).
NOTE: Make sure all wires are recessed into the frame, do not trap any of the wires. Do not fully tighten screws (19)
at this point. You may find it easier to stand on the bed of the treadmill to perform this part of the assembly.
30
55
36
19
19
140
141
142
143
139
138
55
30
