Sanyo DC INVERTER SPLIT SYSTEM AIR CONDITIONER C1271 User Manual
Page 47

1
2
3

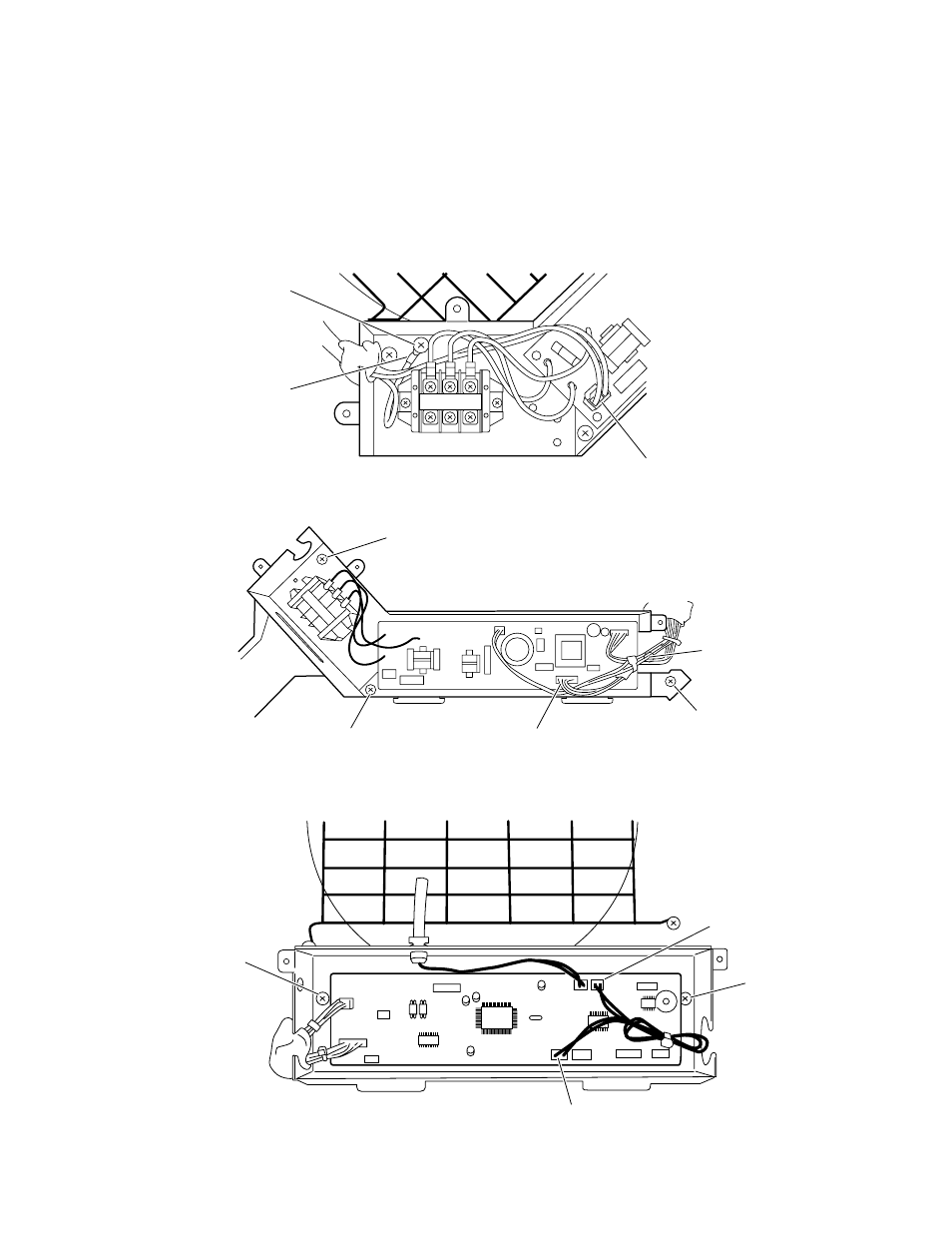

(4) Disconnect the connector CN07 (DP 2P) in the power box. (Fig. 13)
Remove a screw and disconnect the ground cable. (Fig. 13)
(5) Disconnect the connector CN03 (DCM 6P) in the power box. (Fig. 14)
(6) Remove the 4 screws and remove the power box. (Fig. 14)
(7) Disconnect the connectors CN06 (FS 3P) and CN09 (COIL-1 2P) in the control box. (Fig. 15)
(8) Remove the 2 screws and remove the control box. (Fig. 15)
Fig.13
Fig.14
Fig.15
Screw
Screw
Screw
Screw
Screw
CN06
CN03
Screw
Screw
Ground cable
CN07
CN09
47
