2-3. Other Component Specifications
Indoor Unit XS1271 & PNR-XS1872
XS1872 & PNR-XS1872
Outdoor Unit C1271 C1872
CL1271 CL1872
0
32 50 68 86 104 122 140 158 176 194
(0) (10) (20) (30) (40) (50) (60) (70) (80) (90)
40
60
80
100
120
140
160
180
200
20
50
1
0
2
3
4
5
6
7
8
9
10
59 68 77 86 95 104
(10) (15) (20) (25) (30) (35) (40)

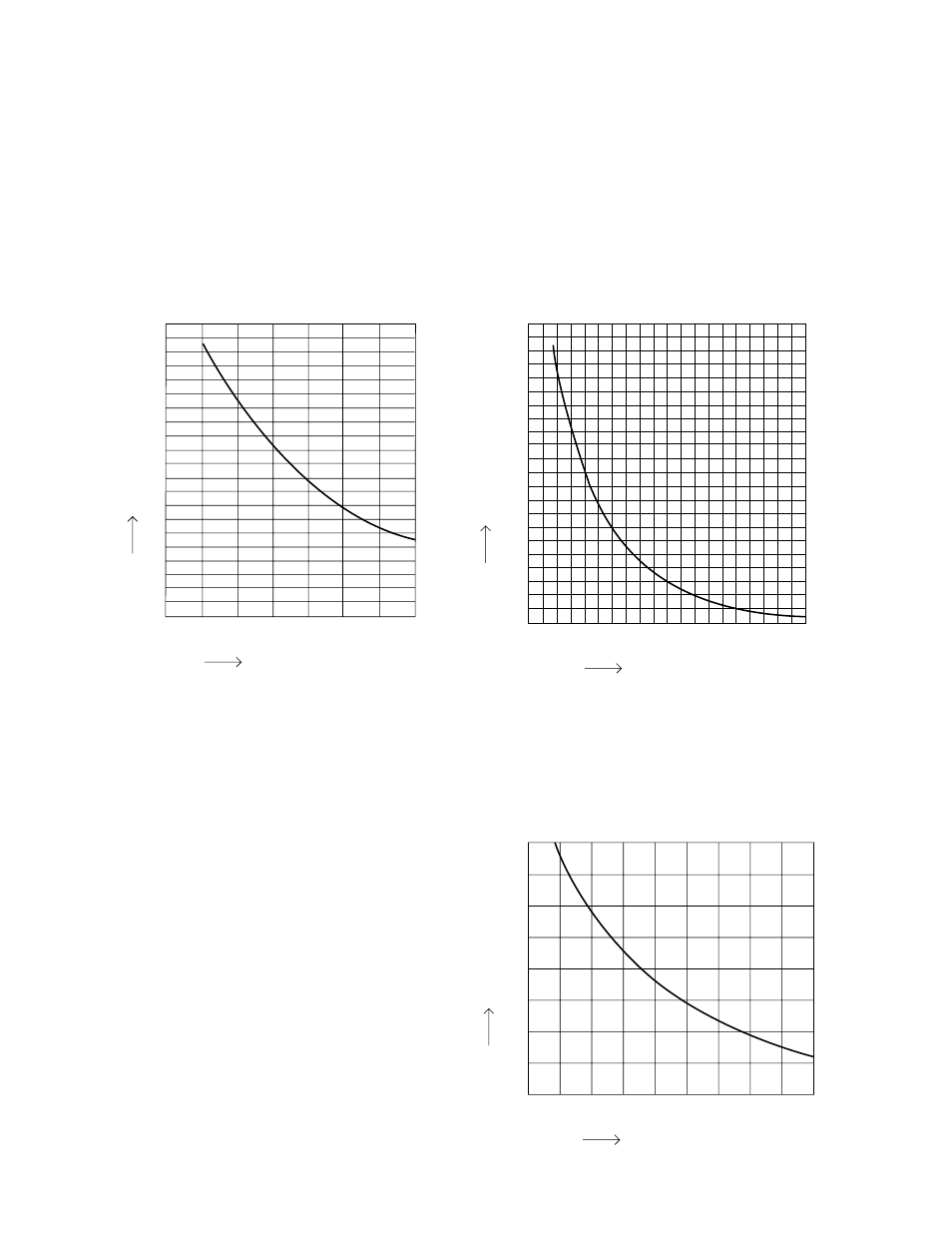

• Indoor air temp sensor
(Model:KTEC-35-S98)
• Indoor heat exchanger sensor
(Model:PT2M-51H-S3)
• Compressor temp sensor
(C1271, CL1271...Model:DTN-TKS274Y TH2)
(C1872, CL1872...Model:DTN-TKS293B)
Resistance (k ohm)
Resistance (k ohm)
Temperature °F ( °C )
• Outdoor air temp sensor
(C1271, CL1271...Model:DTN-TKS269B)
(C1872, CL1872...Model:TKS295B)
• Outdoor heat exchanger sensor
(C1271, CL1271...Model:DTN-TKS274Y TH1)
(C1872, CL1872...Model:TKS292B)
40
35
30
25
20
15
10
5
0
-4 5 14 23 32 41 50 59 68
(-20)(-15)(-10) (-5) (0) (5) (10) (15) (20)
Resistance (k ohm)
Temperature °F ( °C )
Temperature °F ( °C )
