6
OPTICAL COAX 1 COAX 2
AC INPUT 120V~60Hz 200W
ANTENNA
AUX PLAY REC PLAY REC PLAY VIDEO 1
VIDEO 2
SUB WOOFER
TAPE MON. VIDEO 1 CD VIDEO 2 MONITOR
PRE OUT
VIDEO OUT VIDEO IN
VIDEO 1
SUB WOOFER CENTER
FRONT REAR
6-CH DIRECT INPUT
DIGITAL IN
MODEL NO. RD-6108
AUDIO/VIDEO RECEIVER
MADE IN CHINA DESIGNED IN USA
SER. NO
AVIS : RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR.
WARNING : SHOCK HAZARD-DO NOT OPEN.
WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
MANUFACTURED UNDER LICENSE FROM DIGITAL THEATER SYSTEMS,INC.
US PAT. NO. 5,451,942, 5,956,674, 5,974,380, 5,978,762 AND OTHER WORLD-WIDE
PATENTS ISSUED AND PENDING. "DTS" AND "DTS DIGITAL SURROUND" ARE
REGISTERED TRADEMARKS OF DIGITAL THEATER SYSTEMS, INC.
COPYRIGHT 1996, 2000 DIGITAL THEATER SYSTEMS, INC. ALL RIGHTS RESERVED.
L
R
FRONT SPEAKERS (6 )
REAR SPEAKERS (6 )
CENTER SPEAKER (6 )
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2)THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
MANUFACTURED UNDER LICENSE FROM DOLBY LABORATORIES.
“DOLBY”, “PRO LOGIC”, AND THE DOUBLE-D SYMBOL ARE TRADEMARKS OF
DOLBY LABORATORIES.
R
LISTED
E208974 7H86
AUDIO/VIDEO EQUIPMENT
ANTENNA
L
R
AM LOOP

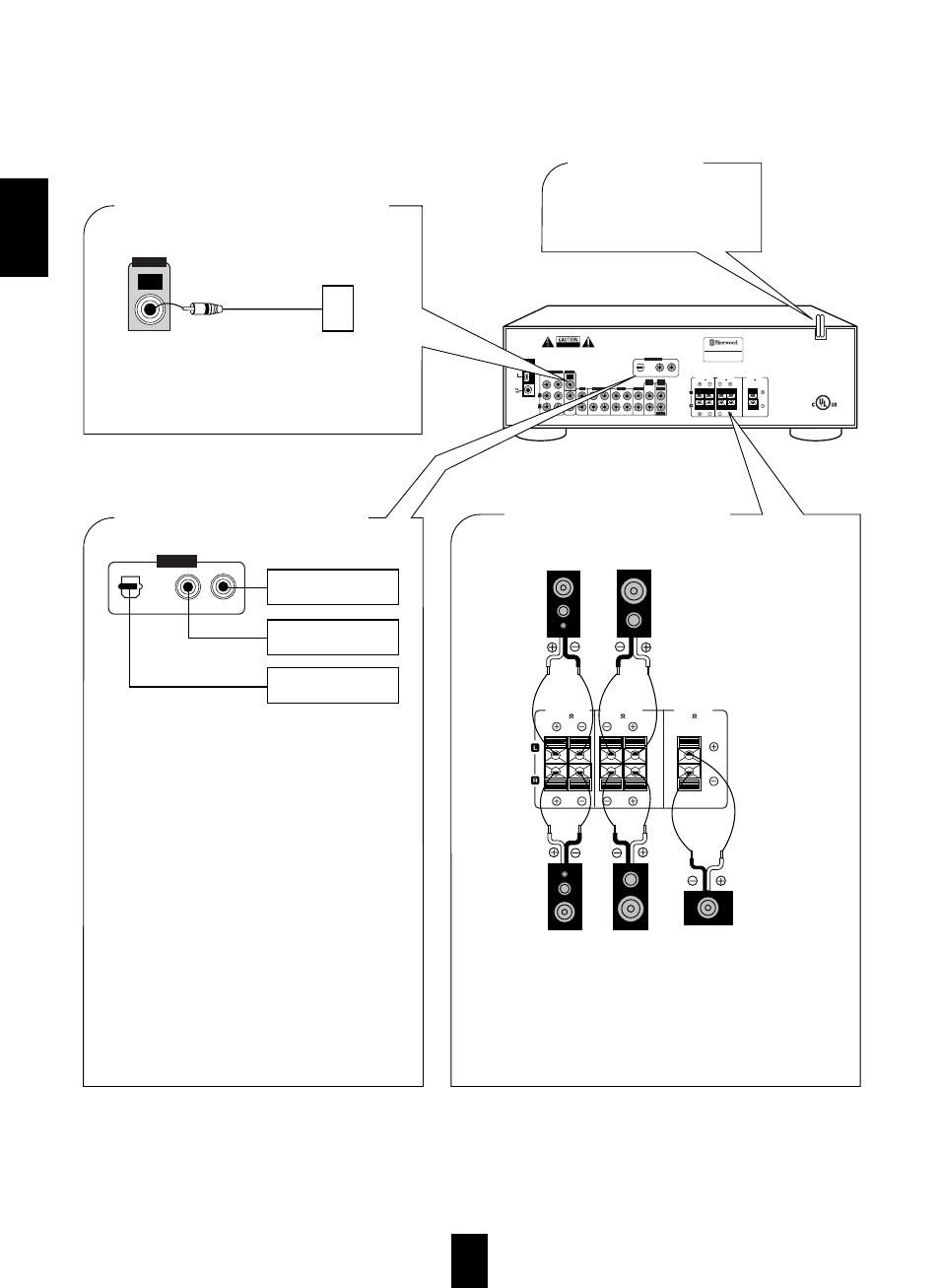

■ CONNECTING DIGITAL INPUTS
• The COAXIAL or the OPTICAL DIGITAL OUTs
of the components that are connected to CD and
VIDEO 1~3 of this unit can be connected to these
DIGITAL INPUTS.
• A digital input should be connected to the
components such as a CD player, LD player, DVD
player, etc. capable of outputting DTS Digital
Surround, Dolby Digital or PCM format digital
signals.
• For details, refer to the operating instructions of the
component connected.
• When making the COAXIAL DIGITAL
connection, be sure to use a 75
Ω COAXIAL cord,
not a conventional AUDIO cord.
• All of the commercially available optical fiber cords
cannot be used for the equipment. If there is an
optical fiber cord which cannot be connected to your
equipment, consult your dealer or nearest service
organization. • Never short-circuit the + and - speaker cords.
• Be sure to connect speakers firmly and correctly according to
the channel (left and right) and the polarity (+ and -).
• Be sure to use the speakers with the impedance of over 6 Ω.
• For installing the speakers, refer to "Speaker placement" on
page 14.
■ CONNECTING SPEAKERS
Powered subwoofer
■ SUBWOOFER PRE OUT connection
• To emphasize the deep bass sounds, connect a
powered subwoofer.
SUB
WOOFER
PRE OUT
OPTICAL COAX 1 COAX 2
DIGITAL IN
Component with
COAXIAL DIGITAL OUT
Component with
COAXIAL DIGITAL OUT
Component with
OPTICAL DIGITAL OUT
FRONT
SPEAKERS
(6 )
REAR
SPEAKERS
(6 )
CENTER
SPEAKER
(6 )
Front left Rear left
Center
Front right Rear right
■ AC INPUT CORD
Plug this cord into a wall AC
outlet.
