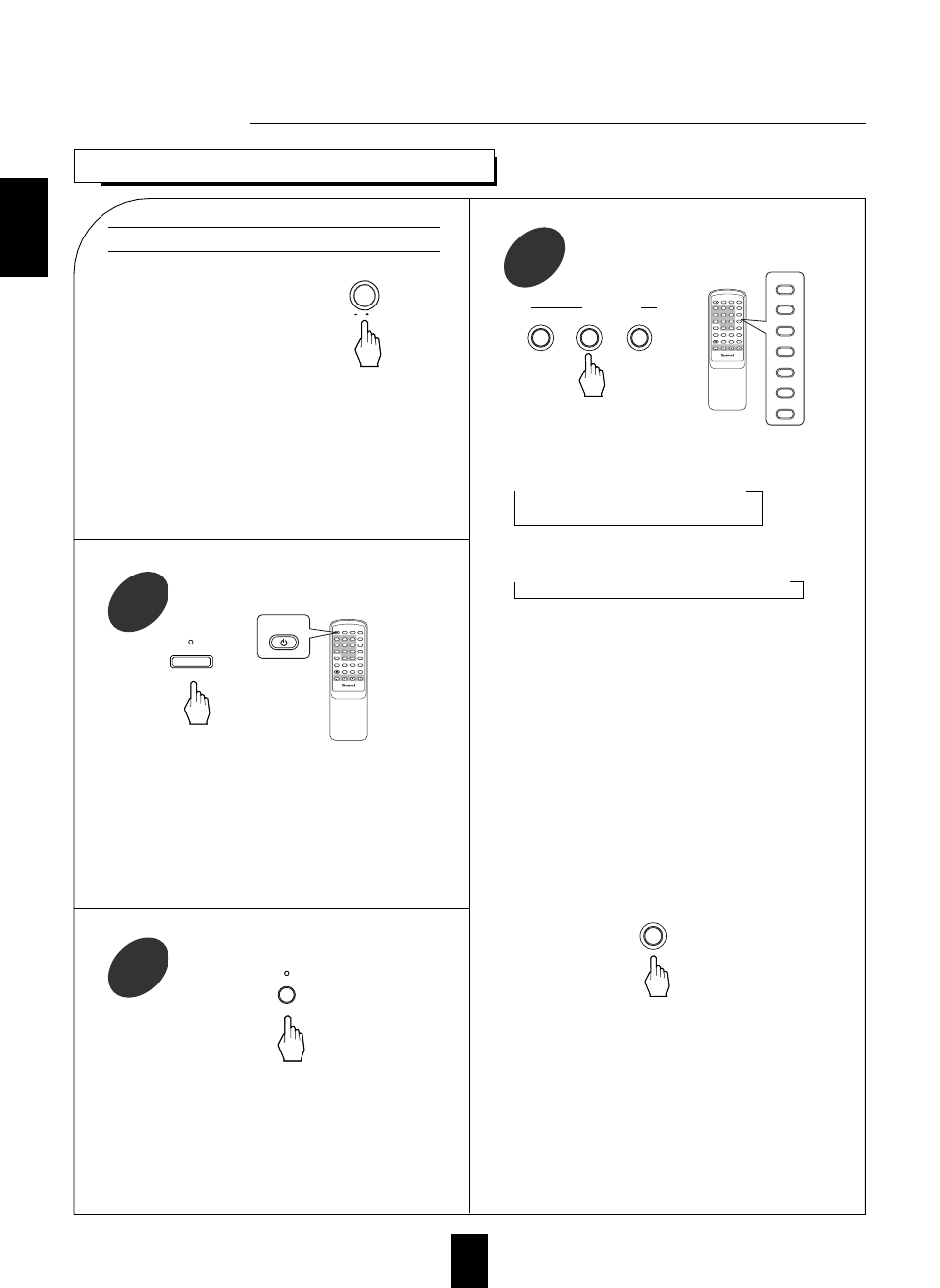

LISTENING TO A PROGRAM SOURCE
Operations
Before operation
Select the desired input source.
3
Enter the standby mode.
The STANDBY indicator lights up.
This means that the receiver is not disconnected from
the AC mains and a small amount of current is
retained to support the memorized contents and
operation readiness.
To switch the power off, push the POWER switch again.
Then the power is cut off and the STANDBY
indicator goes off.
Each time the STANDBY button on the front panel
or the POWER button on the remote control is
pressed, the receiver is turned on to enter the
operating mode or off to enter the standby mode.
In the standby mode, if the INPUT SELECTOR
button is pressed, the receiver is turned on
automatically and the desired input is selected.
Then the SPEAKER indicator lights up and the
sound can be heard from the speakers connected to
the speaker terminals.
When using the headphone for private listening,
press the SPEAKER button again to switch the
speakers off.
Each time the “AUDIO” button is pressed, the input
source changes as follows;
TUNER CD AUX
(frequency display)
Each time the “VIDEO” button is pressed, the input
source changes as follows;
VIDEO 1 VIDEO 2 VIDEO 3
When the TAPE MONITOR button is set to on so that
“TAPE M” indicator lights up, other inputs can not be
heard from the speakers.
To listen to an input source other than TAPE MONITOR,
be sure to set the TAPE MONITOR button to off.
TAPE MONITOR function
You can connect either a tape deck or a graphic equalizer to
the receiver’s TAPE MONITOR jacks.
Only when you listen to the component connected to these
jacks, set the TAPE MONITOR button to on.
If you connect a 3-head tape deck, you can listen to the sound
being recorded during recording, not the source sound.
For further details, refer to the operating instructions of the
component connected.
When selecting the 6 CH DIRECT as desired,
“6-DIRECT” is displayed and the 6 separate analog
signals from 6 CH decoder connected to this unit pass
through the tone (bass, treble) and volume circuits
only and directly transfer to the speakers. (In case that
the TAPE MONITOR button is set to on, the TAPE
MONITOR button is automatically set to off.)
Press the 6 CH DIRECT button or select the desired
input source to cancel the 6 CH direct function.
These 6 separate analog signals can be heard only, not
recorded.
