Smooth Fitness 5.25 Motorized Treadmill - Manual (Page 23)

www.smoothfitness.com 23
ASSEMBLY

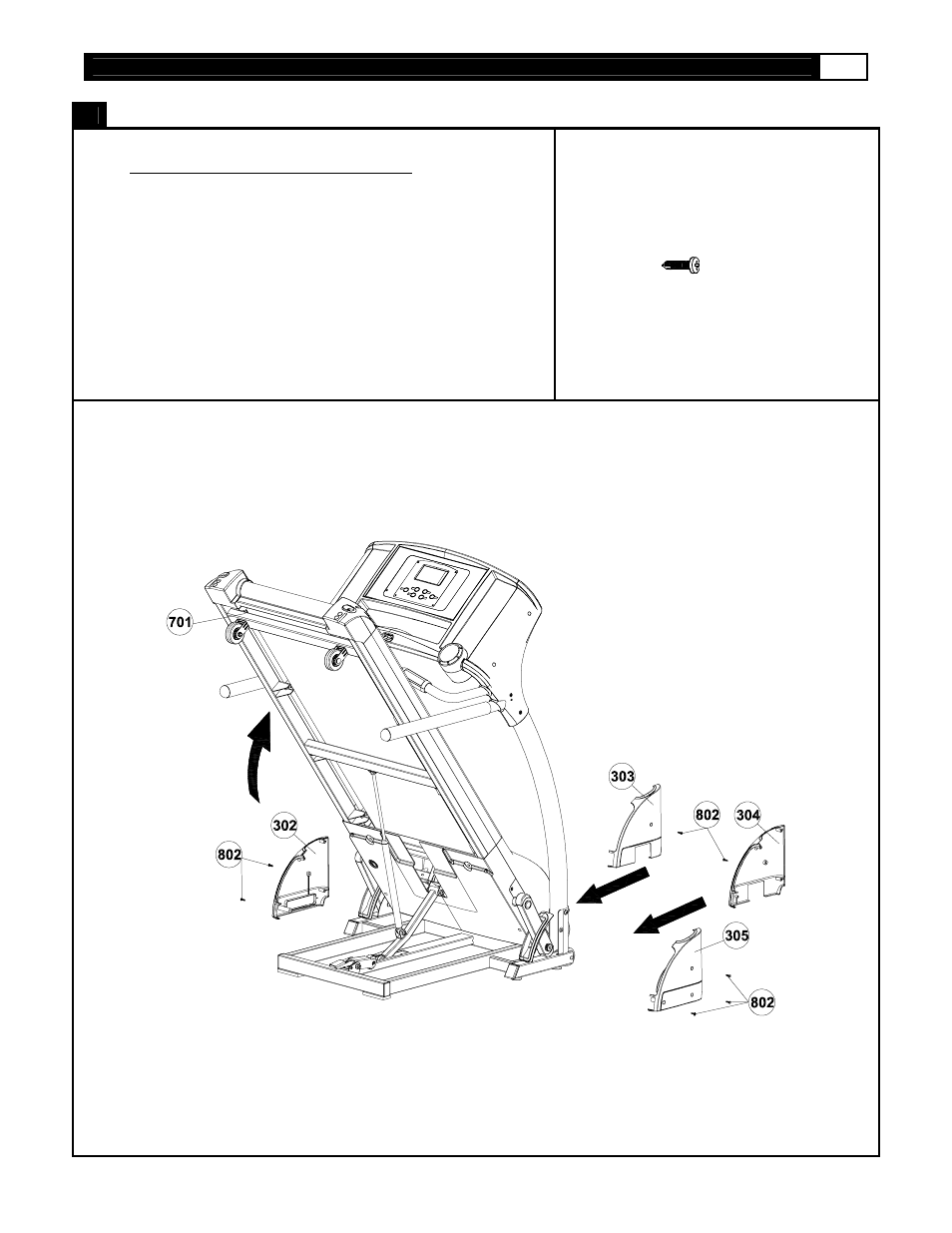

STEP 6 : Assemble Base Covers
NOTE: Refer to the folding instructions on page 26.
A) Fold up the running deck until it locks in place.
B) Attach Upright Base Cover (302) to the outside of the Left
Upright (301). Secure with two M4x15mm screws(802)
C) Attach Upright Base Cover (303) to the inside of the Left
Upright (301). Secure using one M 4x15 mm.
D) Attach Upright Base Cover (302) to the outside of the Right
Upright (301). Secure with three M4x15mm screws(802)
E) Attach Upright Base Cover (304) to the inside of the Right
Upright (301). Secure using one M 4x15 mm.
802
X7
