Smooth Fitness 5.25 Motorized Treadmill User Manual
Page 21
www.smoothfitness.com
21

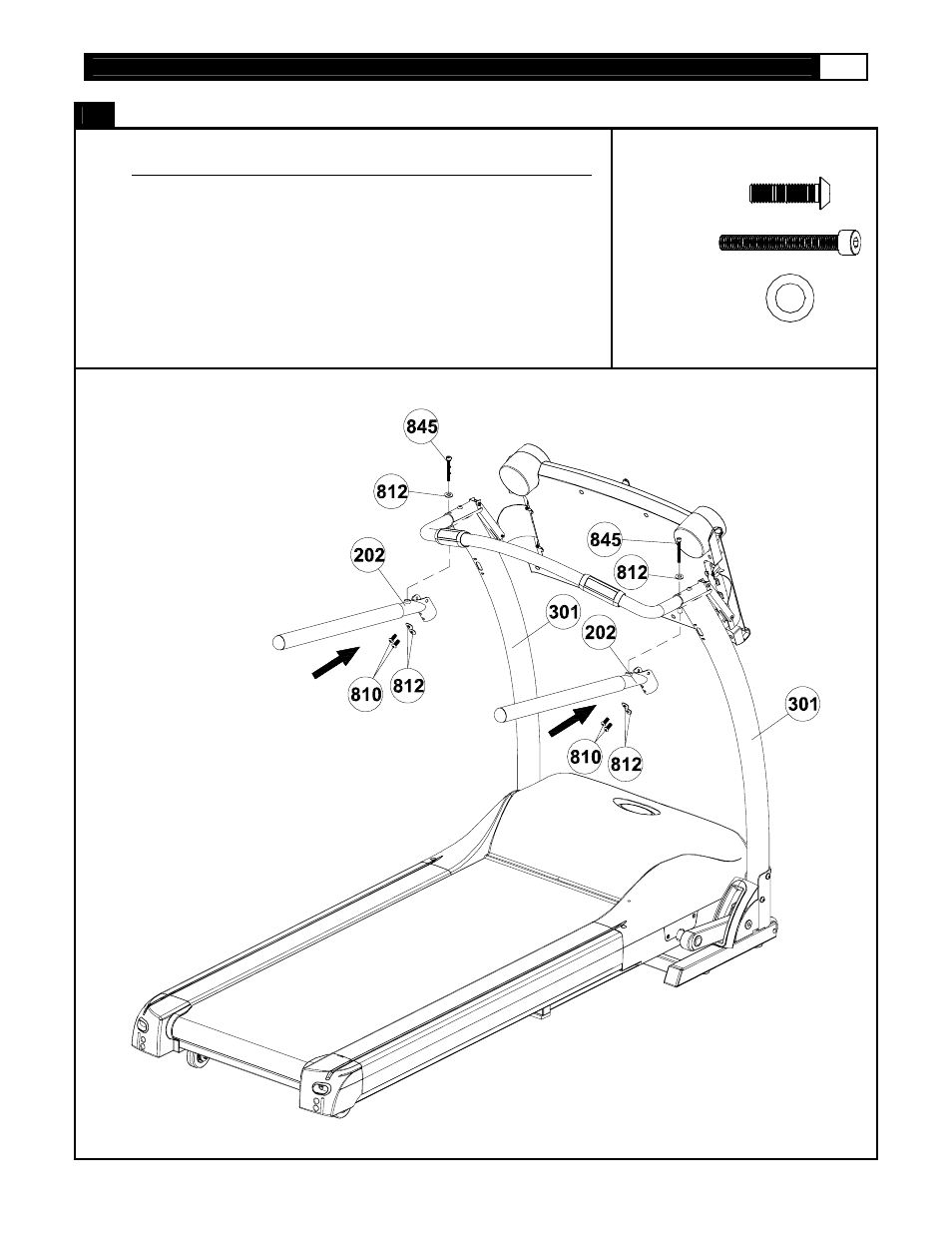

ASSEMBLY
STEP 4
:
Assemble The Side Handlebars
NOTE:
Side rails are interchangeable for use on both right and left sides
A) Attach one handlebar (202) to the left upright (301)
B) Secure the Side Handlebar with one M8×75mm bolt (845) and one #8
washer, through the top of front handle bar into the side handle bar.
C) Insert two M8×18mm (810) and two #8 washers (812) through the side
handrail plate and thread into the upright
D) Repeat the above process for the right side
E) Tighten all bolts with Allen wrench
810
X4
845
X2
812
X6
