Smooth Fitness 5.25 Motorized Treadmill User Manual
Page 22
www.smoothfitness.com
22
ASSEMBLY

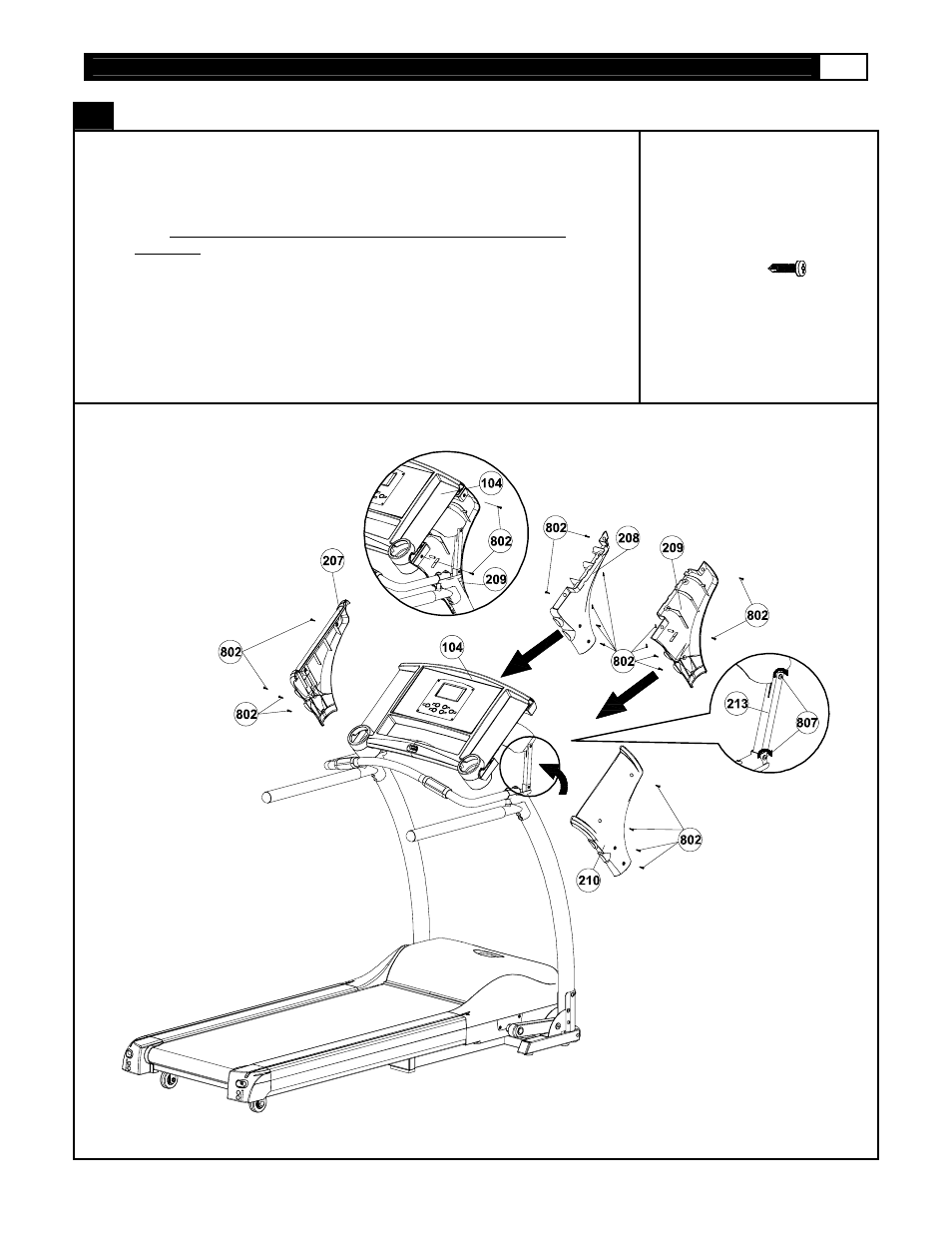

STEP 5:Assemble Computer Console
A) Rotate the console up until it stops as shown in diagram below.
B) Tighten the screw (807) of the console connect tube (213) for right and left
side. Console connect tube (213) will be loose for the next steps of
assembly.
C) Attach Handle Bar Cover (208) to the underside of the console and the
inside of the Left Upright (301). Secure with four M4×15mm screws (802).
D) Attach Handle Bar Cover (207) to the top left side of the console and to the
outside of the Left Upright. Secure with four M4x15mm screws (802).
E) Repeat the above process for the right hand side as shown in diagram.(209)
(210)
802
X20
