Smooth Fitness 5.25 Motorized Treadmill User Manual
Page 20
www.smoothfitness.com
20
ASSEMBLY

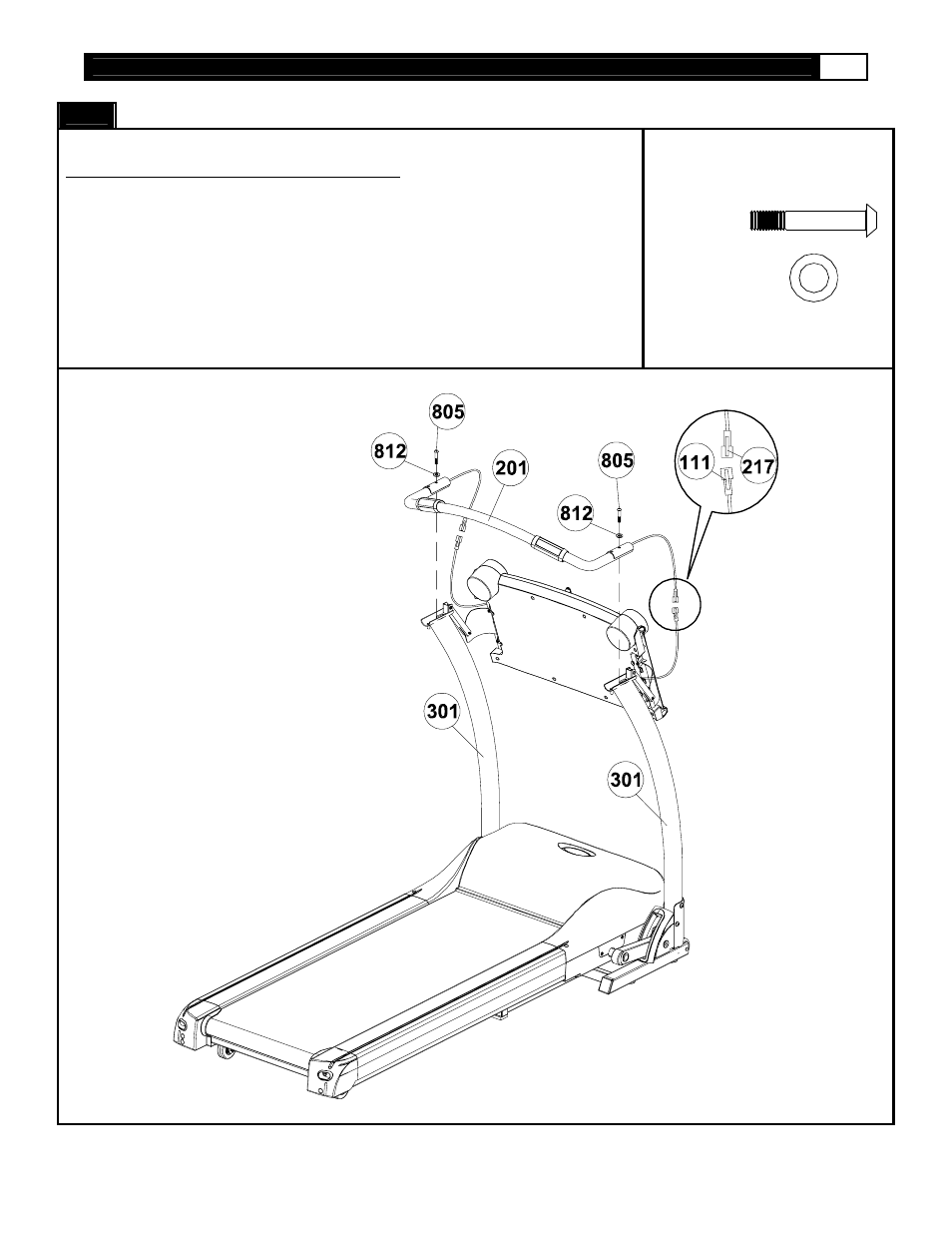

STEP 3: Assemble Front Handle Bar
Note: Only hand tighten bolts until last step
A) Place the front handle bar (201) on top of the left and right uprights (301).
B) Secure left side with one #8 washer (812) and one M8x45mm Allen bolt (805)
in the forward most hole
C) Secure right side with one #8 washer (812) and one M8x45mm Allen bolt (805)
in the forward most hole
D) Connect contact pulse wire (217) and wire (111) on left and right side (as
shown in diagram). Then insert the remaining length of wire into the front
handle bar tube. Tighten all bolts with Allen wrench.
805
X2
812
X2
