Page 14
14
ELECTRICAL CONNECTIONS (continued)

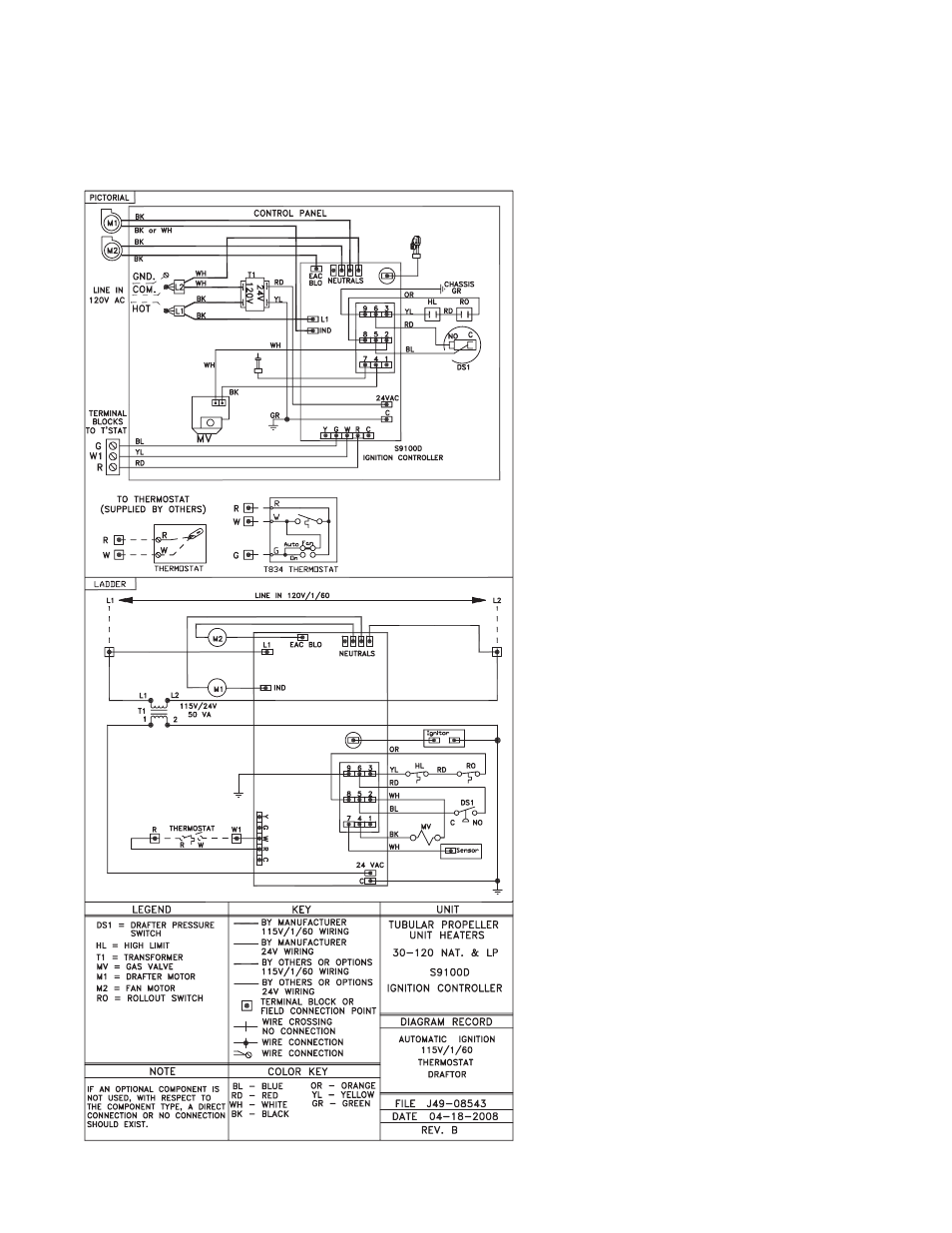

Figure 11B - Tubular Propeller Units 30-120 with Natural and Propane (LP) Gas
with Single Stage Gas Control and Honeywell Control Board
NOTICE: See Figures 7, 8, 9, 10B, 10C, 11B
and 11C for connecting the thermostat to the
unit heater. If using a standard low voltage
thermostat with a sub-base switch for fan
control, connect the G terminal of the thermostat
to the G terminal of the unit heater.
