Instructions for the user

22

6. DESCRIPTION OF CONTROL ON THE FRONT CONTROL PANEL

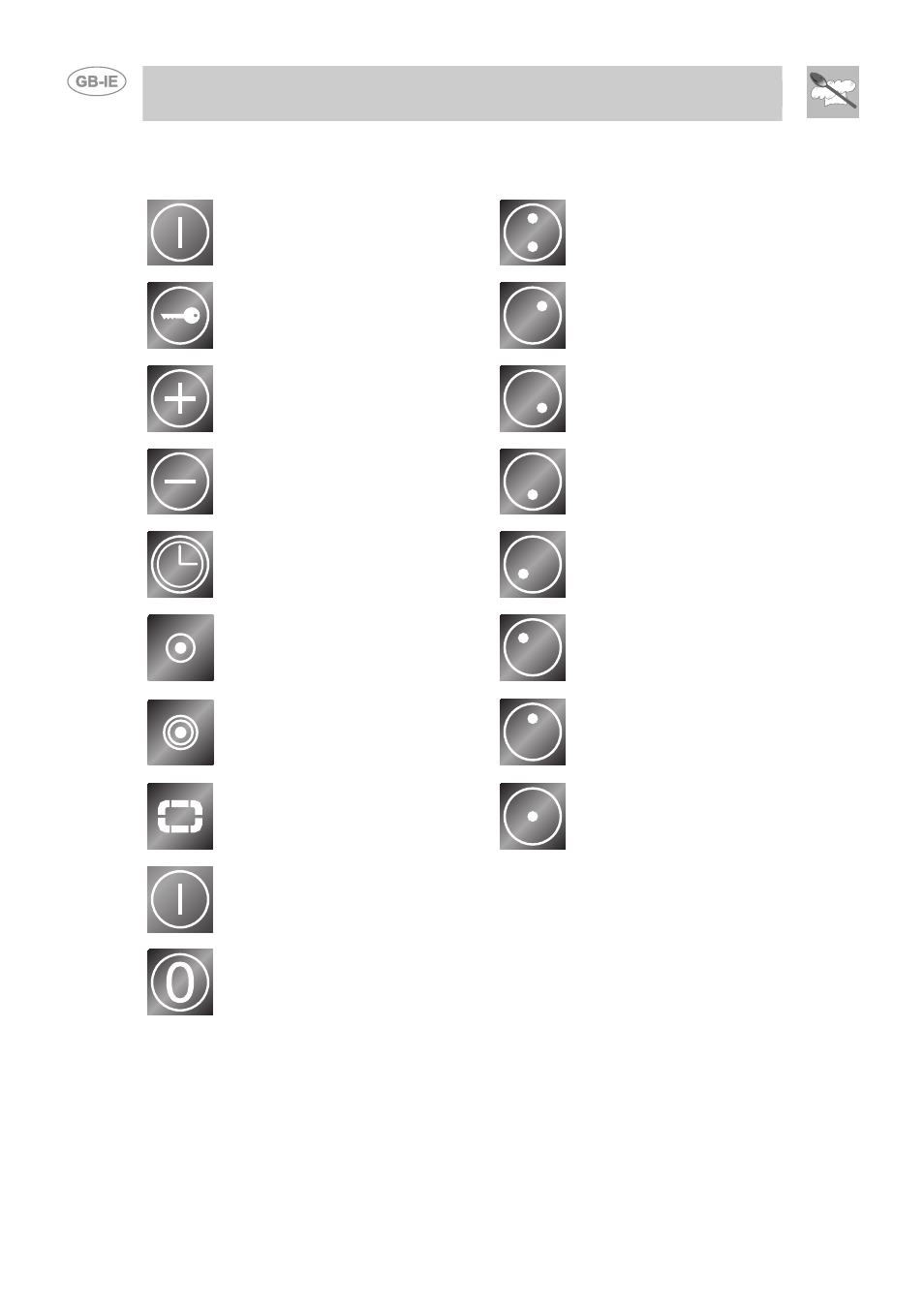

All the hob controls are grouped together on the front panel. The table below provides a description of
the symbols used.

HOB IGNITION

OVAL COOKING ZONE

CONTROLS ON-OFF

REAR RIGHT-HAND COOKING ZONE

VALUE INCREASE BUTTON

FRONT RIGHT-HAND COOKING
ZONE

VALUE DECREASE BUTTON

FRONT CENTRAL COOKING ZONE

TIMER SETTING BUTTON

FRONT LEFT-HAND COOKING ZONE

DUAL COOKING ZONE

REAR LEFT-HAND COOKING ZONE

TRIPLE COOKING ZONE

REAR CENTRAL COOKING ZONE

HEATING ZONE
(MOD. SE2958TC)

CENTRAL COOKING ZONE

SWITCHING ON THE HEATING
ZONE
(MOD. SE2958TC)

SWITCHING OFF THE HEATING
ZONE
(MOD. SE2958TC)
