30

Adjustments/Service

BELT REPLACEMENT

Auger Drive Belt

The drive belts are of special construction and must
be replaced with original factory replacement belts
available from your nearest authorized service center.
Some steps require the assistance of a second
person. If the auger drive belt is damaged, the snow
thrower will not discharge snow. Replace the
damaged belt as follows.

1. Disconnect the spark plug wire.

2. Loosen the capscrews (A, Figure 30) on each side

of the bottom panel (B).

3. Remove the bottom panel (B).

I

J

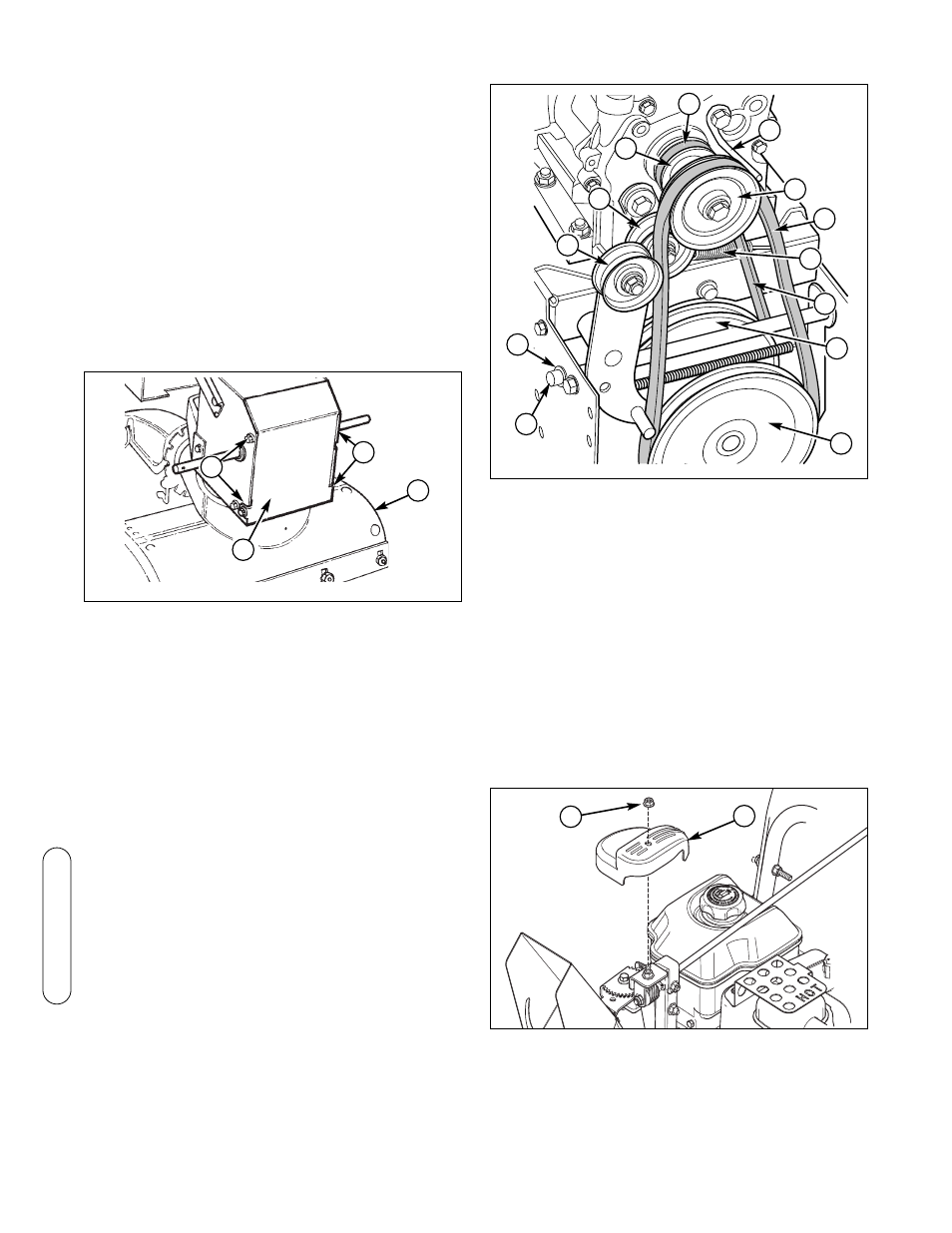

Figure 31. Pulleys and Belts
A. Traction Drive Belt
B. Belt Guide
C. Auger Drive Pulley, Engine
D. Auger Drive Belt
E. Traction Drive Spring
F. Traction Drive Pulley, Engine
G. Traction Drive Pulley
H. Impeller Pulley
I.

Swing Plate Axle Rod

J. “E”-Ring
K. Auger Idler Pulley
L. Traction Drive Idler Pulley

Figure 30. Bottom Cover
A. Capscrews
B. Bottom Panel
C. Auger Housing

C

Service

4. Loosen screw (B, Figure 26) from belt cover (A).

Remove belt cover (A).

5. Loosen the belt guide (B, Figure 31). Pull the belt

guide away from the auger drive pulley (A).

6. Pull the auger idler pulley (K) away from the auger

drive belt (D) and slip the belt off of the idler.

7. Remove the auger drive belt (D) from the engine

pulley. To remove the auger drive belt (D), the
auger drive pulley (C) may have to be partially
rotated.

8. Remove the 5/16 flange lock nut (B, Figure 32)

securing the rotator cover (A).

Figure 32. Rotator Cover Removal
A. Cover
B. Nut, flange, lock 5/16-18

A

B

A

A

B

H

G

A

E

D

C

B

A

F

L

K
