22

Maintenance

CHECK / LUBRICATE LINKAGE

Check the function of the Hand controls: the controls
should function as described in the CONTROLS
section. It is critical for the safe operation of the
unit that the controls disengage when released.

Lubricate as shown in figure 18.

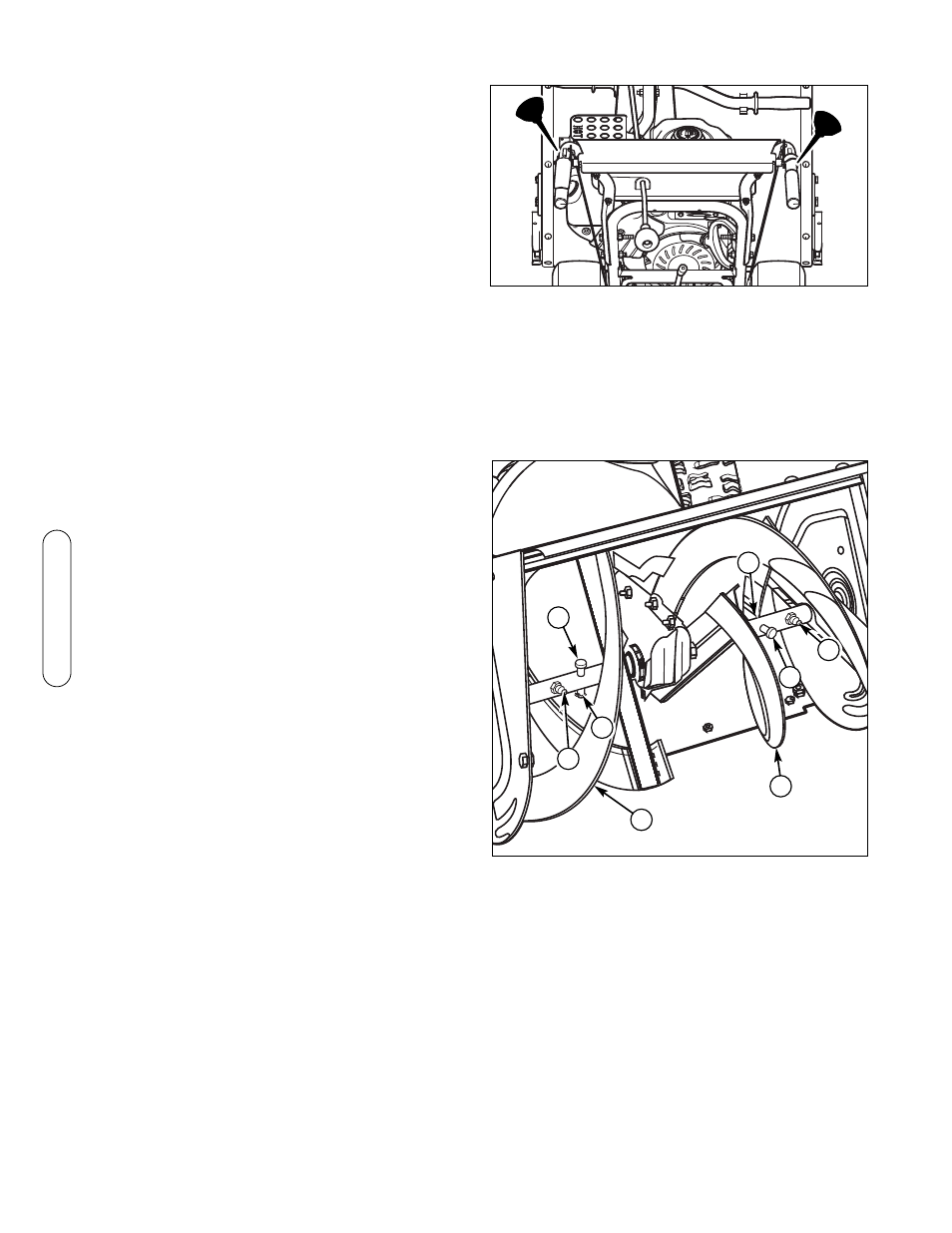

Figure 18. Lubricate Hand Control

Figure 19. Lubricating the Auger Shaft Assembly
A. Grease Fittings

C. Cotter Pins

B. Shear Pins

D. Auger Assembly

B

D

LUBRICATING THE AUGER SHAFT
& ASSEMBLY

1. Remove cotter pin (C, Figure 19) and shear pin

(B).

2. Use a grease gun and squirt several shots of

grease into grease fitting (A).

3. Rotate auger assembly (D) several times to

distribute the grease evenly. Repeat step 2.

4. Reinstall shear pin (B) and cotter pin (C).

5. Repeat procedure for other side.

B

D

IMPORTANT NOTE

It is very important that grease fittings on the auger
shaft are lubricated regularly. If auger rusts to shaft,
damage to worm gear may occur if shear pins do not
break.

IMPORTANT NOTE

If the controls do not function properly, lubricate them.
If lubrication does not rectify the problem, see your
dealer. Under no circumstances should the unit be
used if the controls are not functioning properly.

Regular Maintenance

C

A

C

A

Not

for

Reproduction
