12

Features & Controls

Please take a moment
and familiarize
yourself with the
name, location, and
function of these
controls
so that you will
better understand the
safety and operating
instructions provided in
this manual.

Features & Controls

CONTROL LOCATIONS

The information below briefly describes the function of individual controls. Starting, stopping, and driving require
the combined use of several controls applied in specific sequences. To learn what combination and sequence of
controls to use for various tasks see the OPERATION section.

Speed Selector

Selects forward speeds 1-6 and reverse speeds 1-2.
No neutral position or gate is required, since the
traction drive design automatically provides "neutral"
(no forward or reverse movement), whenever the
Drive Control is released.

Auger Control

Engages the auger/impeller when depressed.
Releasing the control stops the auger/impeller.

Drive Control

Engages the traction drive to wheels when depressed.
Releasing the control stops the traction drive.

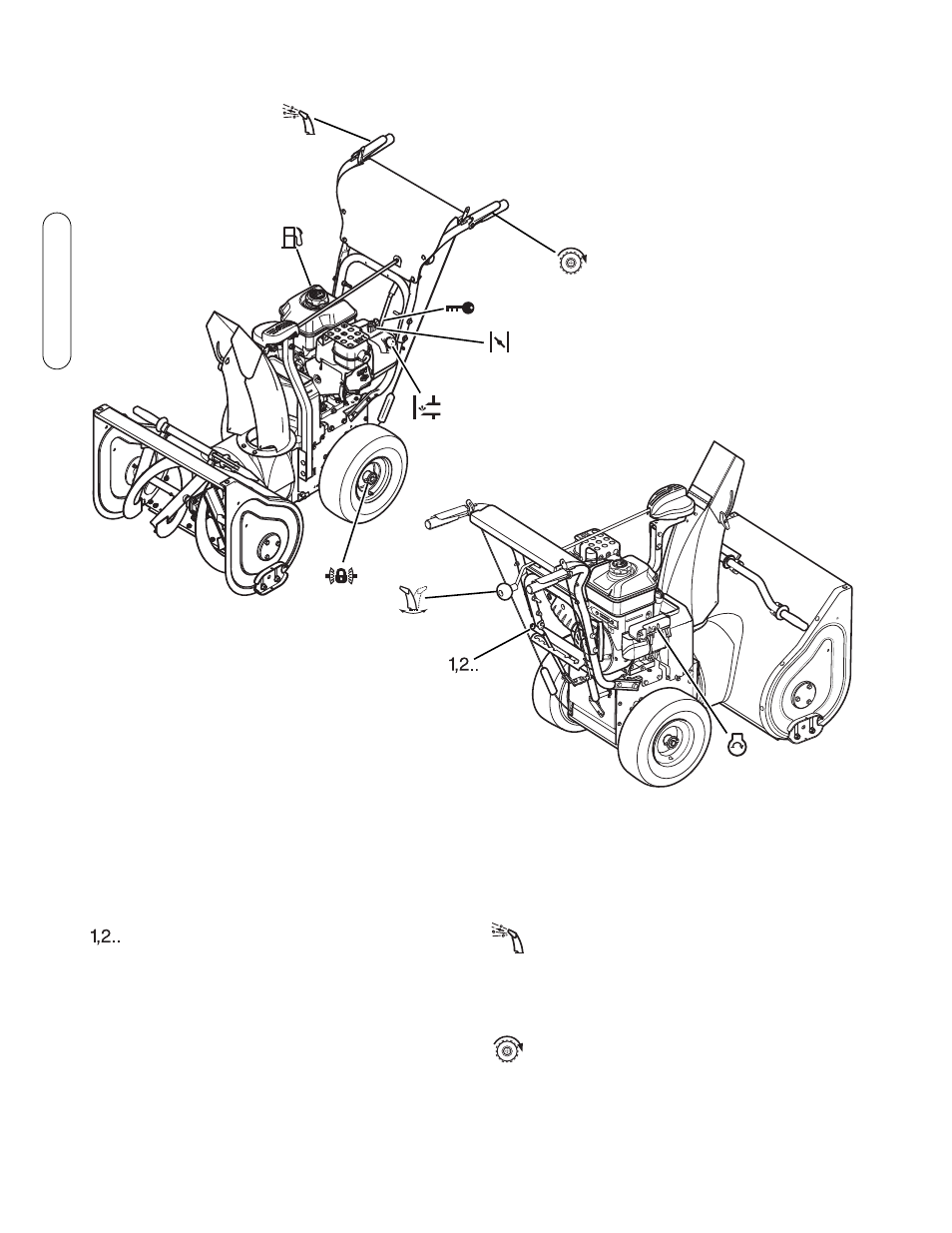

Figure 1. Control Locations
