Instructions for the User
33
7. Using the hob

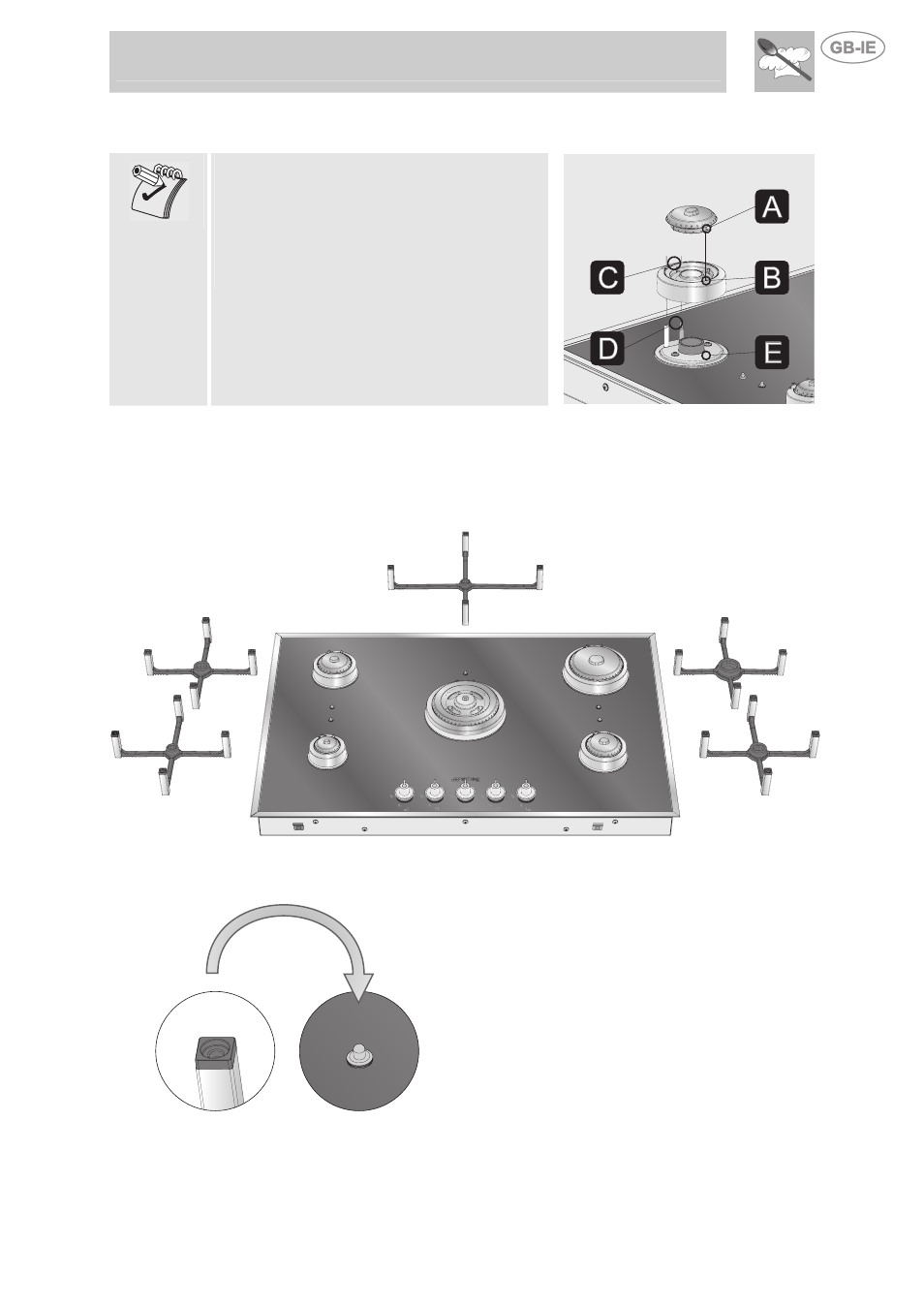

Check that the fixing cover plates E, the
burners, the flame diffuser rings and the pan
stands are fitted correctly.
The projections A on the flame diffuser rings
must be fitted into the recesses B in the burner.
The holes C in the burner must mate with the
ignition plugs and thermocouples D on the hob.
7.1 Fitting the pan stands
The pan stands are supplied dismantled from the hob. To place each pan stand on its
burner correctly, follow the instructions provided below:
The ends of the feet of each pan stand carry
silicone rubber pads with holes which must be
fitted onto the fixing pins provided on the hob.
