Sinclair Electronic Automatic Grommet PG-239 User Manual
Page 26

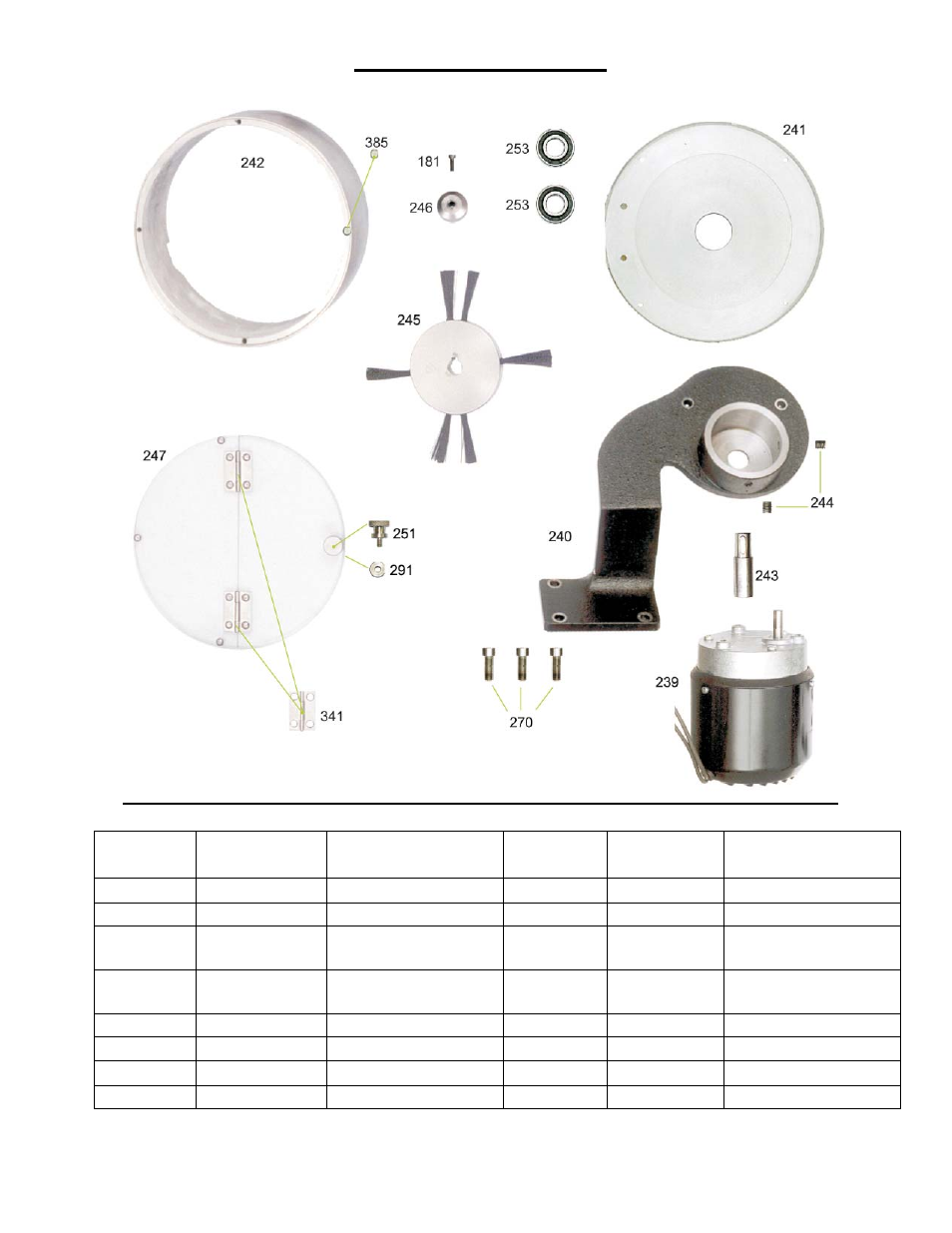

GROMMETS RACEWAY
Schematic
#
Part #
Description
Schematic
#
Part #
Description
181
PGR239181
Screw for part 246
246
PGR239246
Brush spacer
239
PGR239239
Hopper box motor
247
PGR239247
Acrylic box cover
240
PGR239240
Front hopper box
mntg brkt
251
PGR239251
Knob for opening
hopper cover
241
PGR239241
Hopper box bottom
plate
253
PGR239253
Upper box bearing
242
PGR239242
Hopper box housing
270
PGR239270
Mounting studs
243
PGR239243
Brush pin
291
PGR239291
Knob washer
244
PGR239244
Threaded pin
341
PGR239341
Acrylic box hinge
245 PGR239245 Brushes
385 PGR239385
Magnet
