Sinclair Electronic Automatic Grommet PG-239 User Manual
Page 25

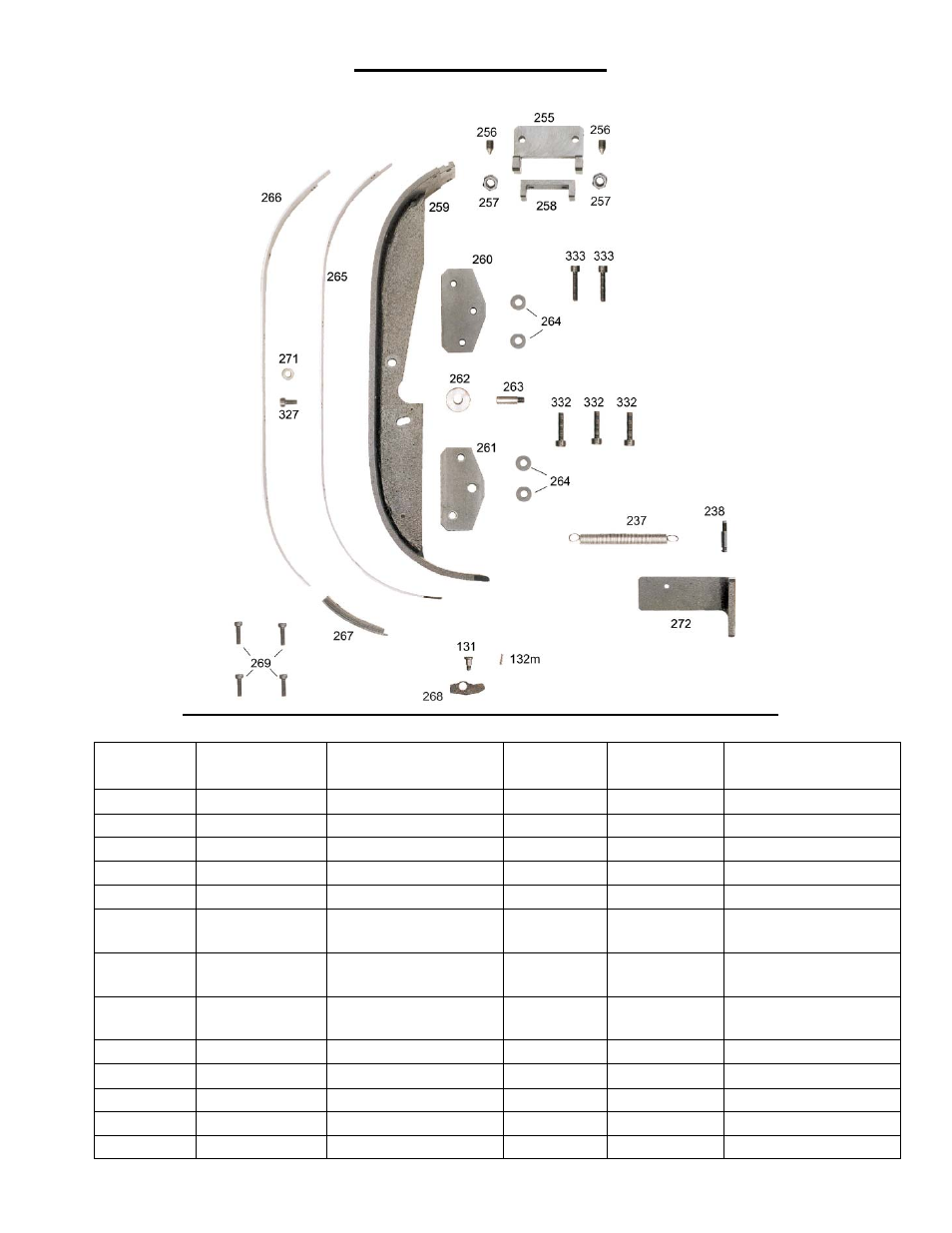

GROMMETS RACEWAY
Schematic
#
Part #
Description
Schematic
#
Part #
Description
131
PGR239131
Finger cut off screw 264
PGR239264
Right
strip
132m
PGR239132M
Spring for part 268
265
PGR239265
Left upper strip
237
PGR239237
Stripper plate spring 266 PGR239266
Fixed
guide
238
PGR239238
Raceway spring nut
267
PGR239267
Fixed guide
255
PGR239255
Front Hppr lwr brkt
268
PGR239268
Finger cut off
256
PGR239256
Mounting studs
269
PGR239269
Hopper box assy
screws
257
PGR239257
Mounting stud nut
271 PGR239271
Raceway
strip
spacers
258
PGR239258
Front hopper lower
bracket support
272
PGR239272
Front raceway brkt
259
PGR239259
Raceway support
327
PGR239327
Raceway screws
260
PGR239260
Outer raceway sprt 332
PGR239332
Mounting
screws
261
PGR239261
Inner raceway sprt
333
PGR239333
Mounting screws
262
PGR239262
Raceway Brkt spacer
263 PGR239263 Spacer
stud
