Sinclair Electronic Automatic Grommet PG-239 User Manual
Page 18

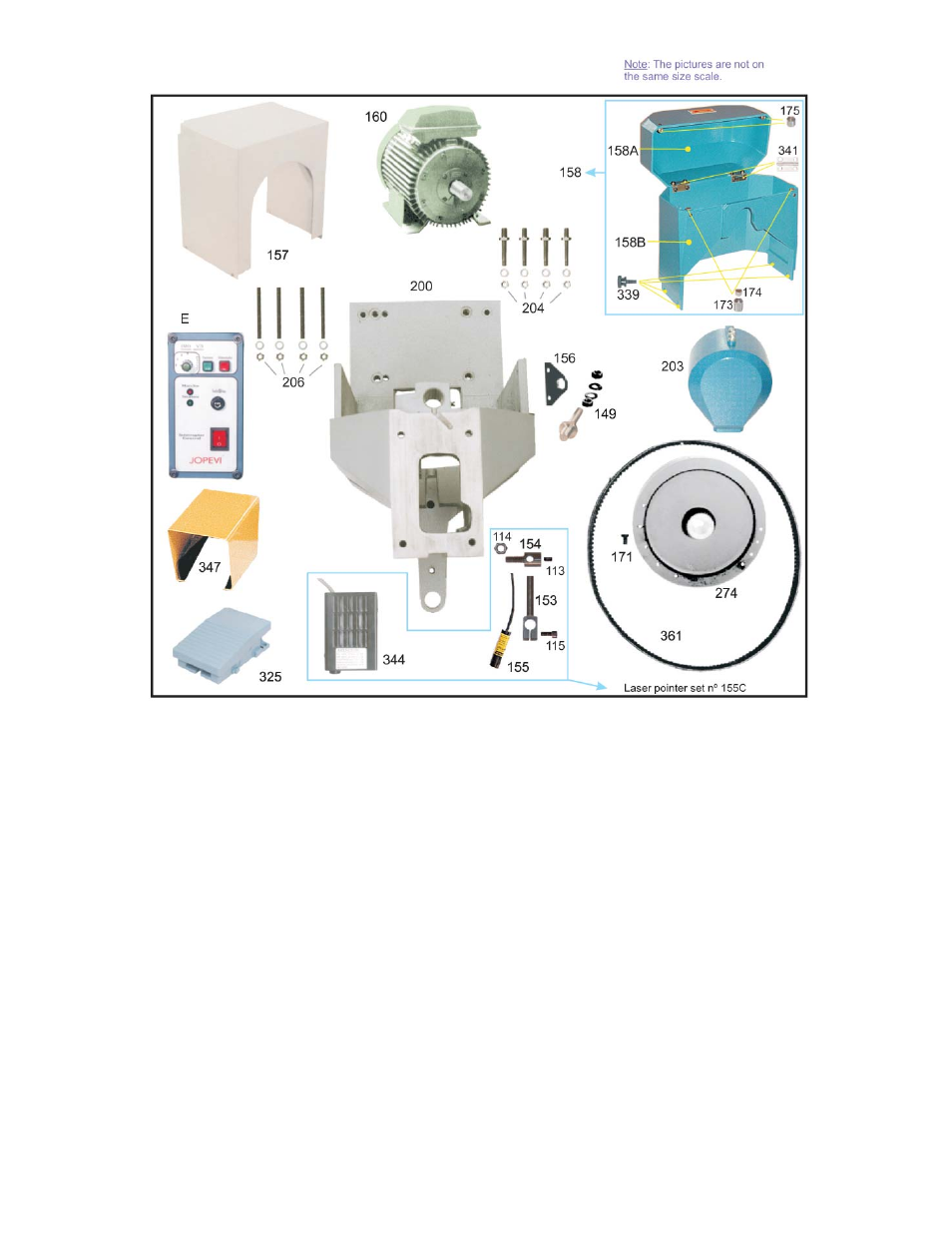

Schematic
#
Part #
Description
Schematic
#
Part #
Description
E
PGR239E
Electronic Device IMO V3
171
PGR239171
Flywheel Detector Screw
113
PGR239113
Threaded Pin
173
PGR239173
Bracket
114 PGR239114
Nut
174 PGR239174
Magnet
7mm
115
PGR239115
Screw
175
PGR239175
Part to fix with magnet
149
PGR239149
Flywheel Detector
200
PGR239200
Housing For Machine
153
PGR239153
Laser Pointer Bracket
203
PGR239203
Cover for Plunger Unit
154
PGR239154
Laser Pointer Threaded
Support
204
PGR239204
Motor Mount Bolts, Nuts,
& Washers (4)
155
PGR239155
Laser Pointer
206
PGR239206
Machine House Bolts,Nuts,
& Washers (4)
155c
PGR239155C
Laser Pointer Set
274
PGR239274
Flywheel
156 PGR239156
Flywheel
Detector
Bracket
325
PGR239325
Electric Foot Pedal
157
PGR239157
Motor Cover
339
PGR239339
Screw For Plastic Cover
158 PGR239158
Flywheel
Cover
341 PGR239341
Hinge
158a
PGR239158A
Upper Part of Flywheel
Cover
344 PGR239344
Transformer
Laser
158b
PGR239158B
Bottom Part Of Flywheel
Cover
347
PGR239347
Foot Pedal Protector
160
PGR239160
Main Motor
361
PGR239361
Drive Belt
