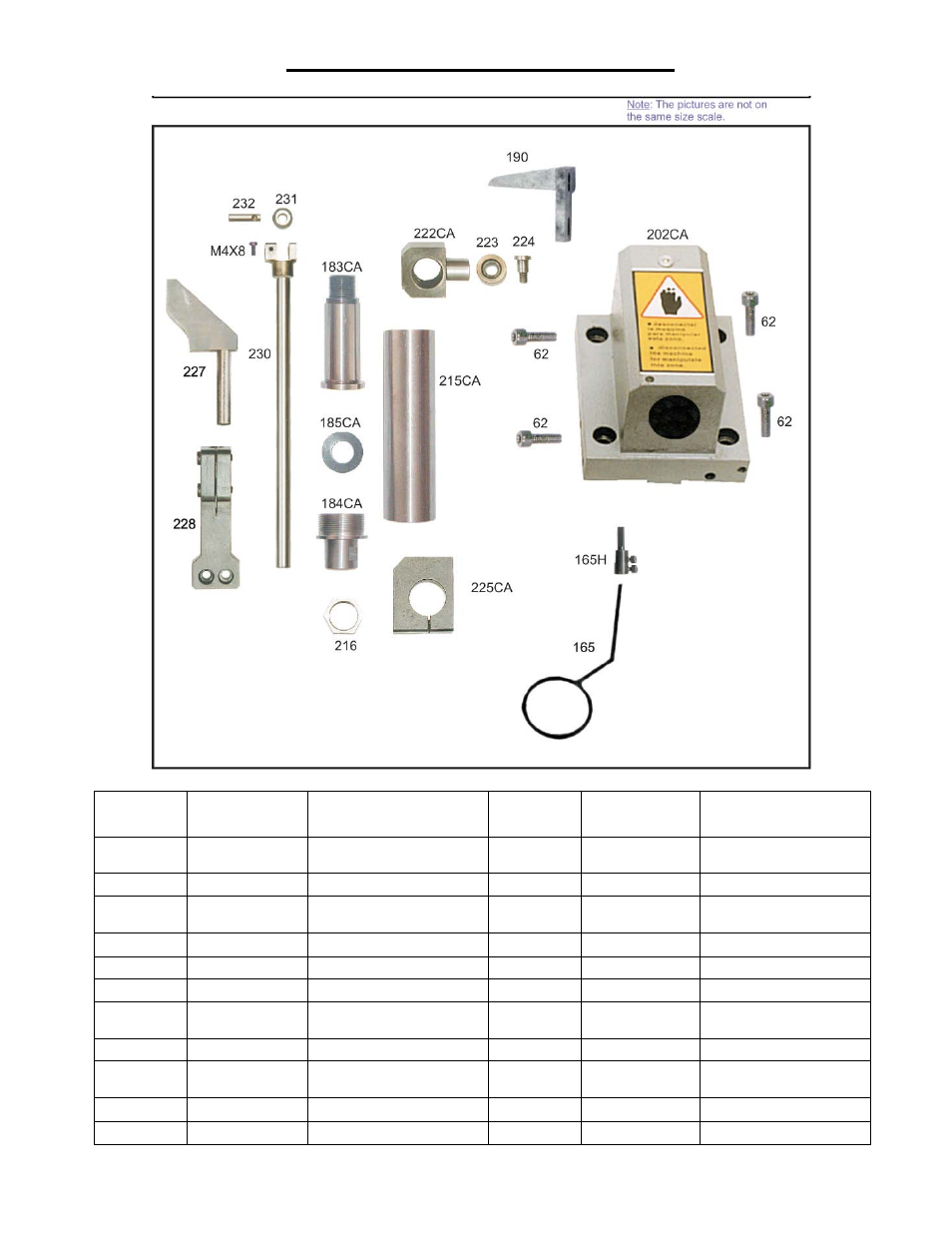

WITHOUT WASHER COMPENSATOR
Schematic
#
Part #
Description
Schematic
#
Part #
Description
62
PGR23962
Screw To Fix Plunger
Hsng
224 PGR239224
Screw for part 223
165 PGR239165
Ring Guard
225
PGR239225
Bottom Plunger Collar
165H PGR239165H
Ring Guard Bracket
226
PGR239226
Bottom Plunger Guide
Pin
190 PGR239190
Plunger
227
PGR239227
Raceway Cam
202 PGR239202
Plunger Housing
228
PGR239228
Raceway Cam Bracket
215 PGR239215
Upper Guide Collar
230
PGR239230
Driving Stem
216 PGR239216
Lock Nut
231
PGR239231
Driving Stem Guide
Wheel
222 PGR239222
Upper Guide
232
PGR239232
Driving Stem Pin
223 PGR239223
Plunger guide wheel for
part #222
M4X8 PGR239M4X8
Screws to fix part #232
