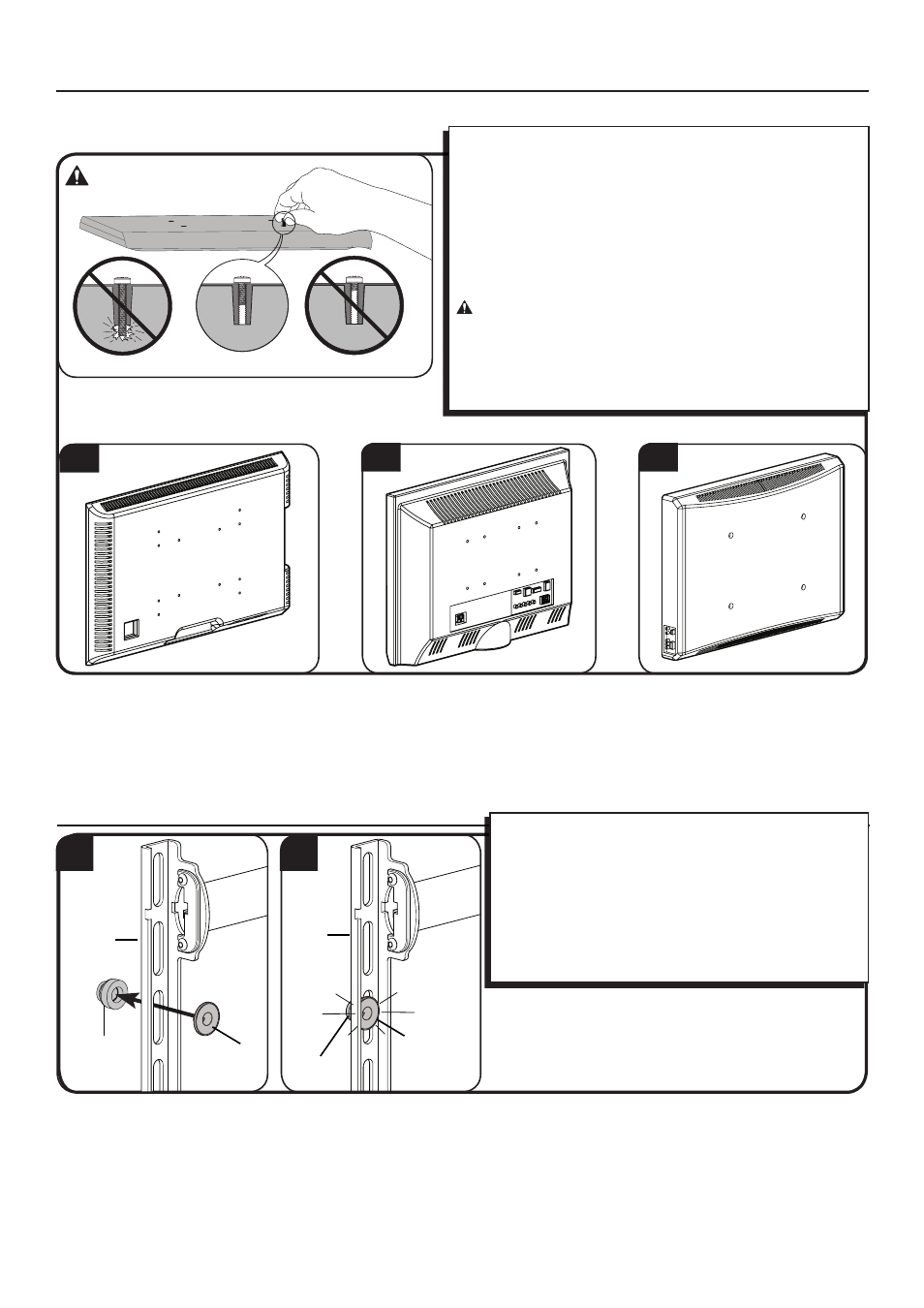

Your TV type will help you determine which hardware configuration to
use. Match your type of TV to the suggested hardware configuration
on the next page.
A. Installation option using 4 or 7mm spacers (TVs with flat backs)
B. Installation option using 14mm spacers (TVs with irregular backs)
C. Installation option using 24 or 38mm spacers (For TVs with irregular
backs that require more length than the 14mm spacer provides.)
Hand thread screws into the threaded inserts on the back of your TV
to determine the correct screw diameter (M4, M5, M6, or M8).
CAUTION:
Avoid potential personal injuries and property
damage! Verify that there are adequate threads to secure the brackets
to the monitor. If you encounter resistance, stop immediately
and contact customer service. Use the shortest screw and spacer
combination to accommodate your needs. Using hardware that is too
long may damage your TV.
B C
1-2
Select the hardware diameter and length
A
A
[02]
[16, 17, 18,
19, 20.]
[21]
B
[02]
[21]
1-3
Attach spacers to brackets
1. Push the shoulder washer [21] through the appropriate
openings of the brackets [02].
2. Snap shoulder washer [21] into the spacer you selected in
step 1-2.
If your TV has a flat back, use either the 4mm or 7mm spacer
[16 or 17].
If your TV has a curved or obstructed back, or if you need more
room for cables, recesses, or protrusions, use either the 14mm,
24mm, or 38mm spacer [18, 19, or 20].
[16, 17, 18,
19, 20.]
