Local IR Interface Port
Use this connector when utilizing
the Olé-SF’s local control features,
such as local source control, local
IR sensors, or sense-enabled auto-
mated sequences.
Warning: The connection
labeled “+1 Volts Out” is a
voltage output. Do not con-
nect a power supply to this
connection!
IR-Emitter Out
The Local IR-EMITTER OUT is
typically used to control a device
that is not part of the main IR
system, such as a TV or DVD player
located within the same room as
the touchpad or electronic volume
controls. IR is routed to an emitter
or IR distribution block connected to
the Local IR output in two ways:
1. Any IR signal that is received from
the Local IR-RECEIVER IN is sent
out both the Local IR-EMITTER
OUT and the system IR output.
2. IR signals may be specified in
programming as “Local” and be
routed through the Local IR-EMIT-
TER OUT.

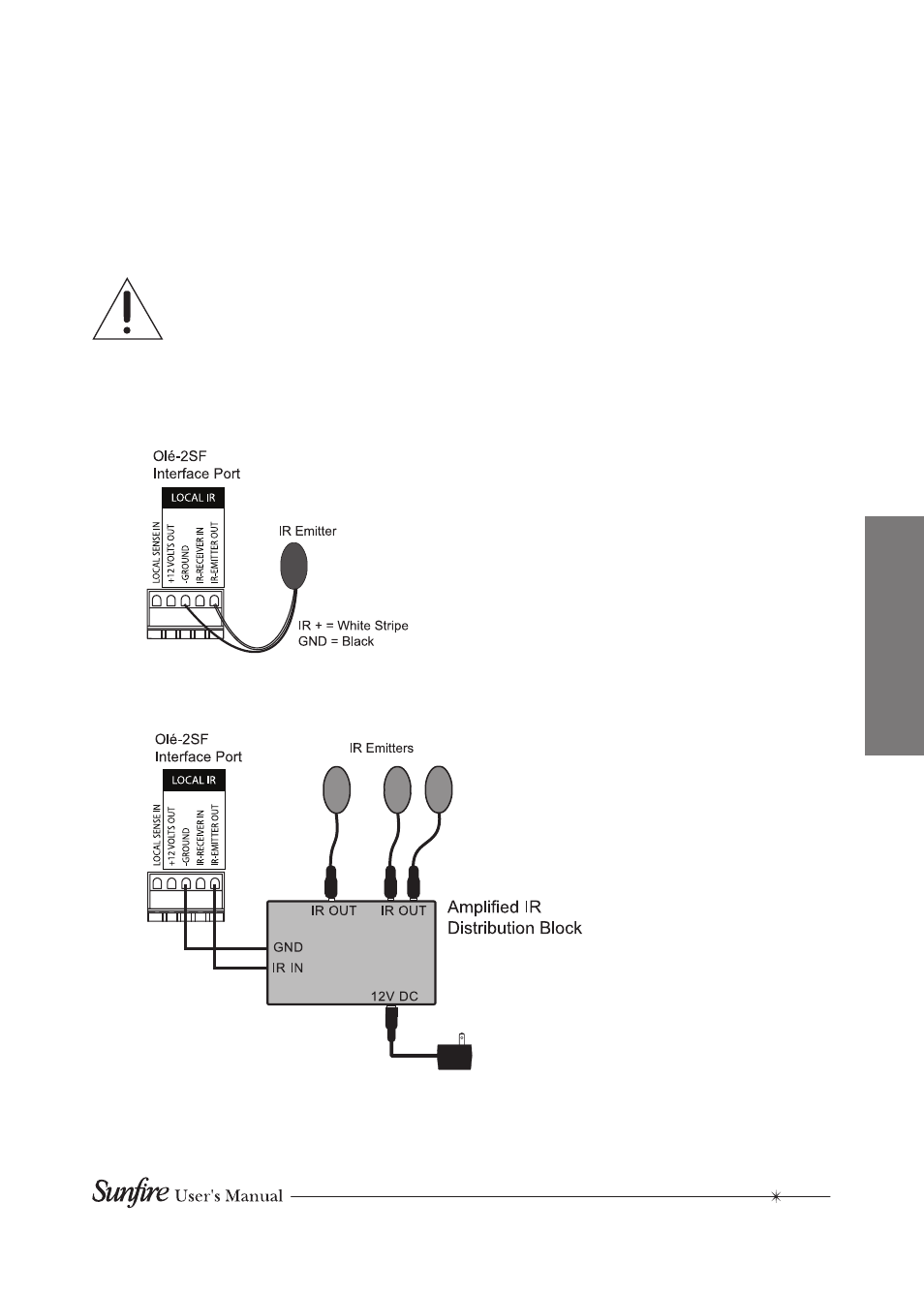

Connect IR-EMITTER OUT and
-GROUND as shown here.
Controlling a single local device
Controlling multiple local devices
13
