Connectors/Pinout
The Olé-SF has a system RJ-4
connector and a five-pin Interface
Port connector which each perform
specific functions. All applications
use the RJ-4 connector, while
certain situations will require the use
of the Local interface port.

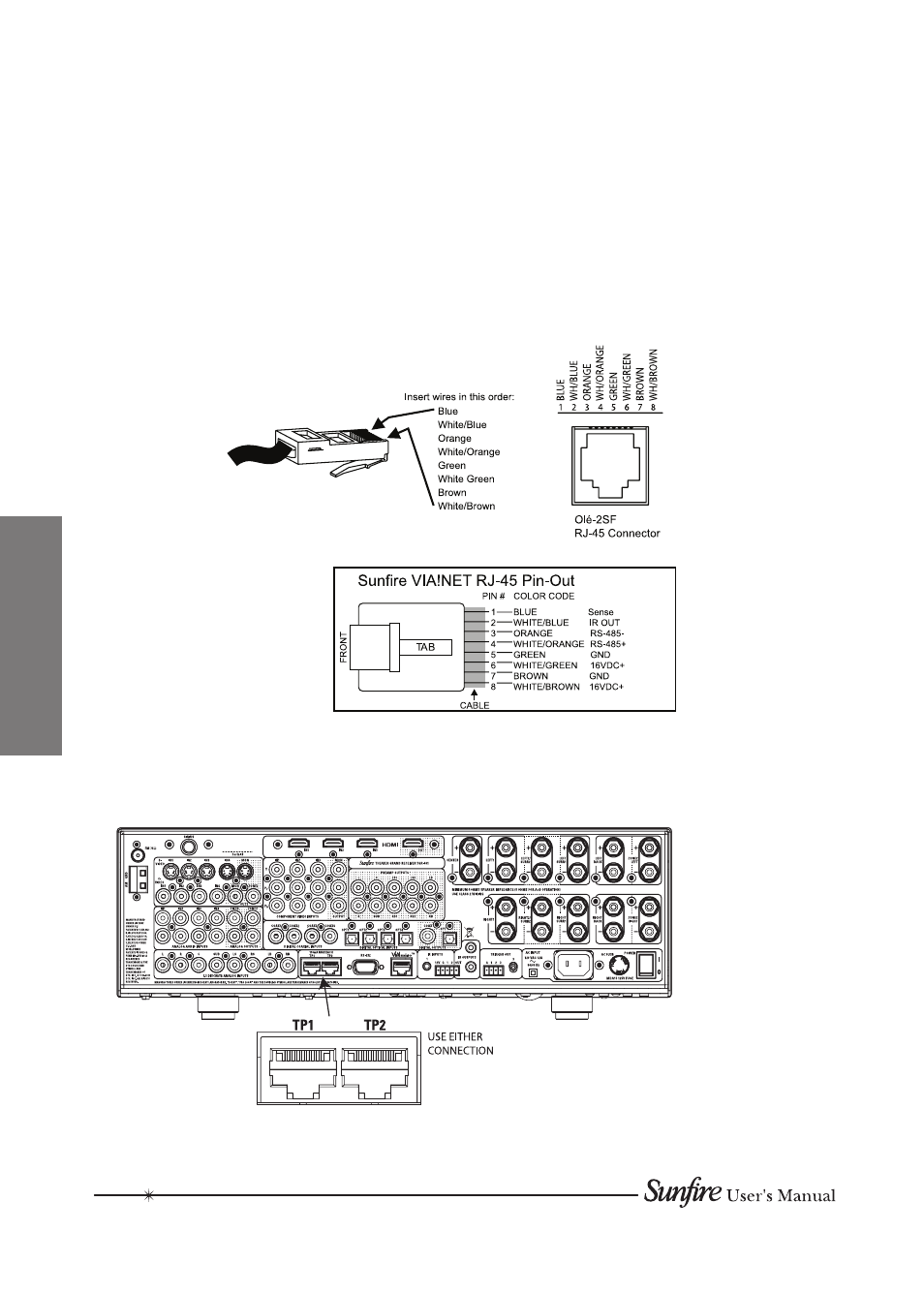

RJ-4 Connector
Use Cat- cable to connect the
Olé-2SF to a Sunfire receiver or pro-
cessor. The Sunfire standard pinout
configuration is shown below.
1
Sunfire TGR-401 Theater Grand Receiver
