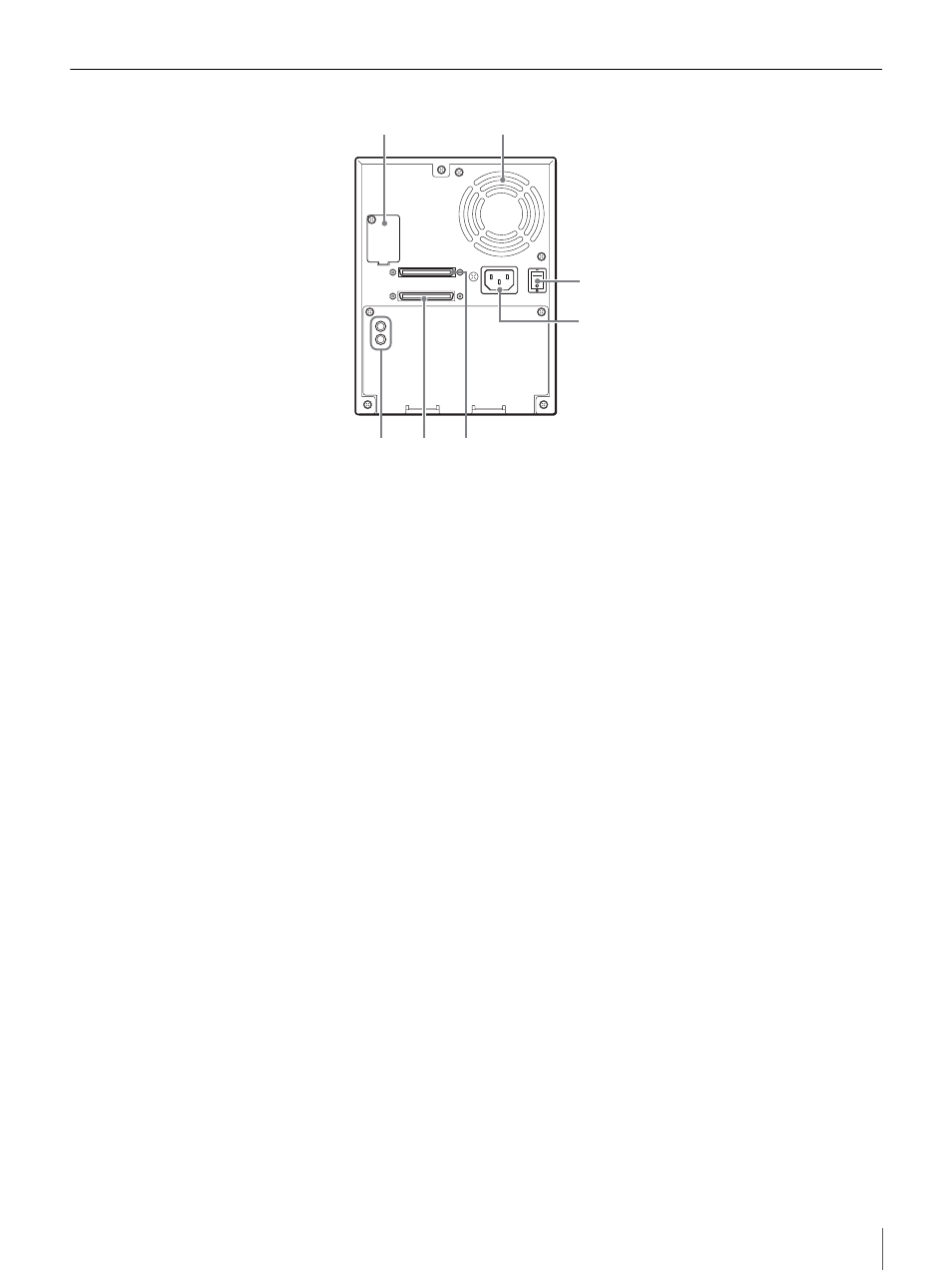

Rear
A Setup DIP Switches and DIP Switch Cover
Used to set up the AIT autoloader. Remove the screws and cover to access the
DIP switches. For details, see “Setting the DIP Switches” (page 19).
B Ventilation Holes
Please be careful not to block the ventilation holes. If the ventilation holes are
blocked, the AIT autoloader may overheat, resulting in damage.
C Power Switch
To turn the AIT autoloader on or off, press this power switch. When you restart
the AIT autoloader, be sure to wait at least 10 seconds before turning it on again.
D Power Supply Connector
Plug the provided power cord into this connector.
E SCSI connector 1 6 SCSI connector 2
For information about connecting the SCSI connectors, see “Connecting to the
Host Computer” (page 17) and “Connecting SCSI Peripheral Devices” (page
22) in Chapter 2, “Installation”.
F SCSI ID Setup Switch
Used to set the SCSI ID of the AIT autoloader. For details, see“Setting the SCSI
ID” (page 21).
