Specifications
72

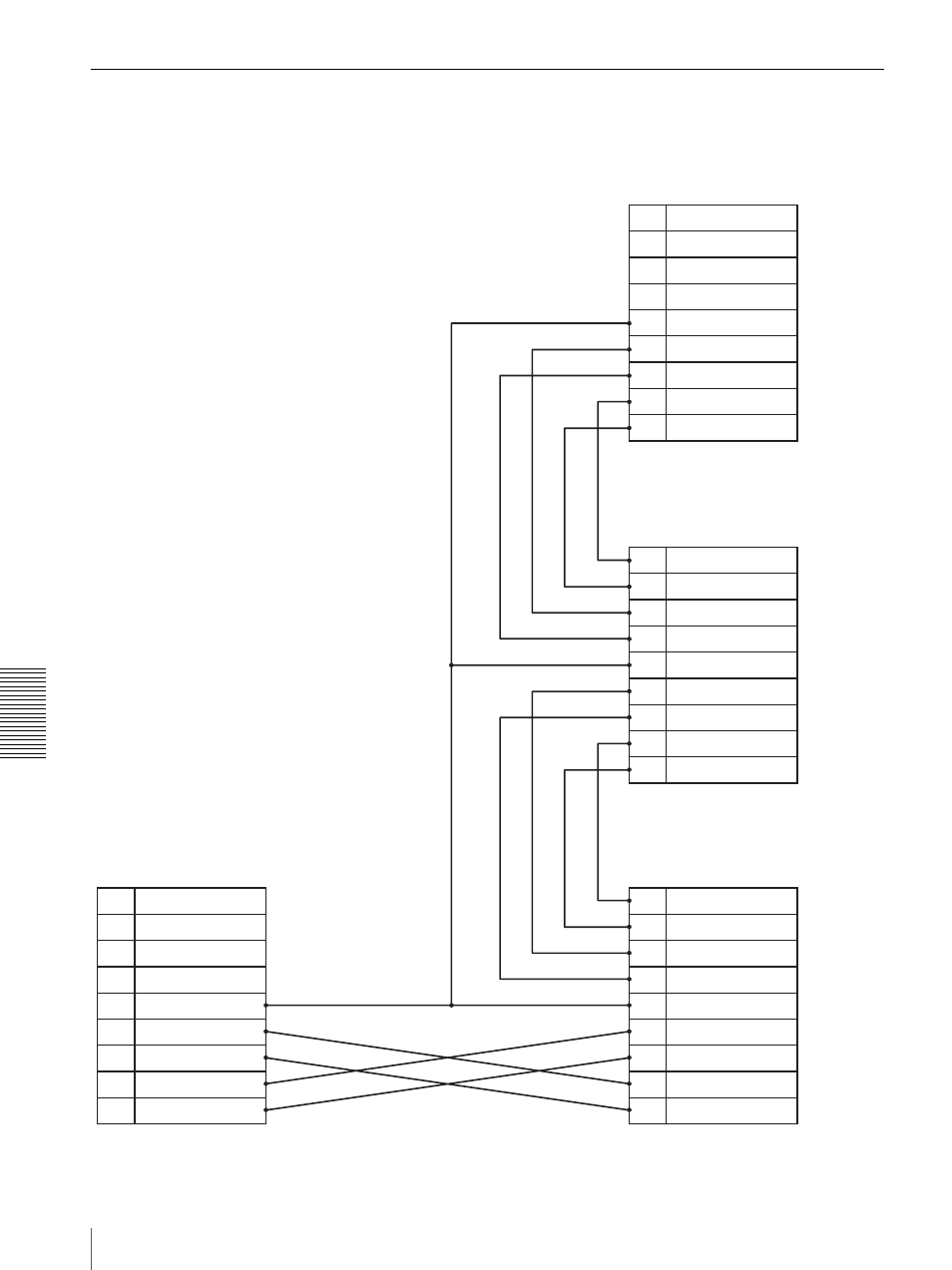

Wiring Diagram of VISCA RS-422 Connection
1 RXD OUT –
2 RXD OUT +
3 TXD OUT –
4 TXD OUT +
5 GND
6 RXD IN –
7 RXD IN +
8 TXD IN –
9 TXD IN +
1 RXD OUT –
2 RXD OUT +
3 TXD OUT –
4 TXD OUT +
5 GND
6 RXD IN –
7 RXD IN +
8 TXD IN –
9 TXD IN +
1 RXD OUT –
2 RXD OUT +
3 TXD OUT –
4 TXD OUT +
5 GND
6 RXD IN –
7 RXD IN +
8 TXD IN –
9 TXD IN +
1 NC
2 NC
3 NC
4 NC
5 GND
6 RXD IN –
7 RXD IN +
8 TXD IN –
9 TXD IN +
RM-BR300 Remote Control Unit
VISCA RS-422 connector
NC = No Connection
Third to Seventh BRC-Z330
VISCA RS-422 connector
Second BRC-Z330
VISCA RS-422 connector
First BRC-Z330 camera
VISCA RS-422 connector
