Location and Function of Parts
5
GB
Location and Function
of Parts
This manual focuses on the operations of the RM-
BR300 when it is used with the BRC-300/300P, BRC-
H700 or BRC-Z700 camera.

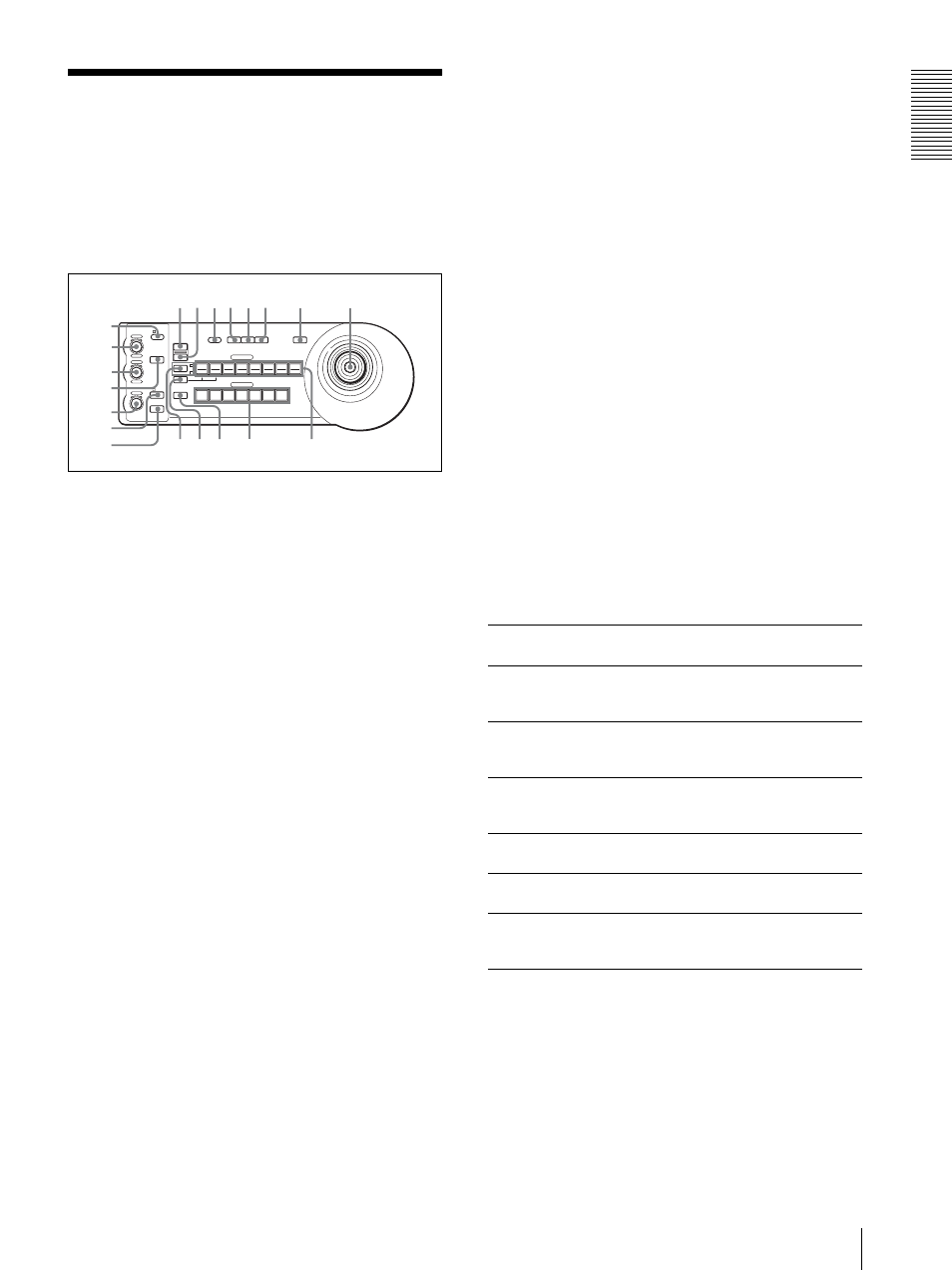

Front
A LOCK button and indicator
Press the LOCK button for more than one second,
and the LOCK indicator lights and the values set by
the VALUE/R, BRIGHT/B and FOCUS controls
are locked. (The indicators of the locked controls
are turned off.).
The AUTO/MANUAL button is also disabled.
Press the LOCK button for more than one second
again to unlock the controls and buttons.
B VALUE/R control
When the brightness adjustment mode is
selected with the MODE button (with the
VALUE indicator lit):
This control adjusts the value of the item
(SHUTTER or IRIS) selected on the camera.
When the VALUE indicator is lit, the function of
the control varies according to the exposure mode
selected on the camera. For details, see “Functions
of the VALUE and BRIGHT controls” on page 5.
When the white balance adjustment mode is
selected with the MODE button (with the R
indicator lit):
This control adjusts the R. GAIN (red gain) (except
the EVI-D30/D30P).
When the BRC-H700 or BRC-Z700 camera is
connected, the function of the control with the R
indicator lit varies according to the white balance
mode selected on the camera. For details, see
“Functions of the R and B controls for the BRC-
H700 and BRC-Z700 cameras” on page 5.
C BRIGHT/B control
When the brightness adjustment mode is
selected with the MODE button (with the
BRIGHT indicator lit):
This control adjusts the value of the brightness of
the camera, etc.
When the BRIGHT indicator is lit, the function of
the control varies according to the exposure mode
selected on the camera. For details, see “Functions
of the VALUE and BRIGHT controls” on page 5.
When the white balance adjustment mode is
selected with the MODE button (with the B
indicator lit):
This control adjusts the B. GAIN (blue gain)
(except the EVI-D30/D30P).
When the BRC-H700 or BRC-Z700 camera is
connected, the function of the control with the B
indicator lit varies according to the white balance
mode selected on the camera. For details, see
“Functions of the R and B controls for the BRC-
H700 and BRC-Z700 cameras” on page 5.
Functions of the VALUE and BRIGHT controls
The functions of the VALUE control and the BRIGHT
control change according to the exposure mode setting
on the camera, as follows:
*
When the exposure compensation function is activated on
the camera.
**
Iris and gain controls are operable for the BRC-H700 and
BRC-Z700 when the DIP switch at the bottom of the
camera is set to ON.
*** Available for the BRC-H700 and BRC-Z700 only
Functions of the R and B controls for the BRC-
H700 and BRC-Z700 cameras
When the white balance adjustment mode is selected
with the MODE button of this unit, the functions of the
1
1
9
LOCK
MODE
VALUE
RESET
MENU
PRESET
SHIFT
L/R
DIRECTION
PANEL
LIGHT
BLACK
LIGHT
PAN-TILT
RESET
ONE PUSH
AWB
POWER
AUTO
MANUAL
AUTO
ONE PUSH
AF
2
3
4
5
6
7
2
10
STD
REV
3
11
4
POSITION
CAMERA
12
5
13
6
14
7
15
8
16
R
–
+
BRIGHT
B
–
+
FOCUS
NEAR
FAR
1
8
qh qj qk
ql
w;
90qaqsqd
qf
qg
2
3
4
5
6
7
Exposure mode
on the camera
Function of
VALUE control
Function of
BRIGHT control
FULL AUTO
Not used
Exposure
compensation level
control*
SHUTTER Pri
Shutter speed
control
Exposure
compensation level
control*
IRIS Pri
Iris control
Exposure
compensation level
control*
BRIGHT
Not used
Brightness level
control
MANUAL
Shutter speed
control
Iris control**
GAIN Pri***
Gain control***
Exposure
compensation level
control*
