NOTE: The use of an adapter plug is not recommended.
Recommended minimum AWG size for extension cord:
8.3
100 feet long or less - use an 12 gauge extension cord. •
Over 100 feet long - use a 10 gauge extension cord. •

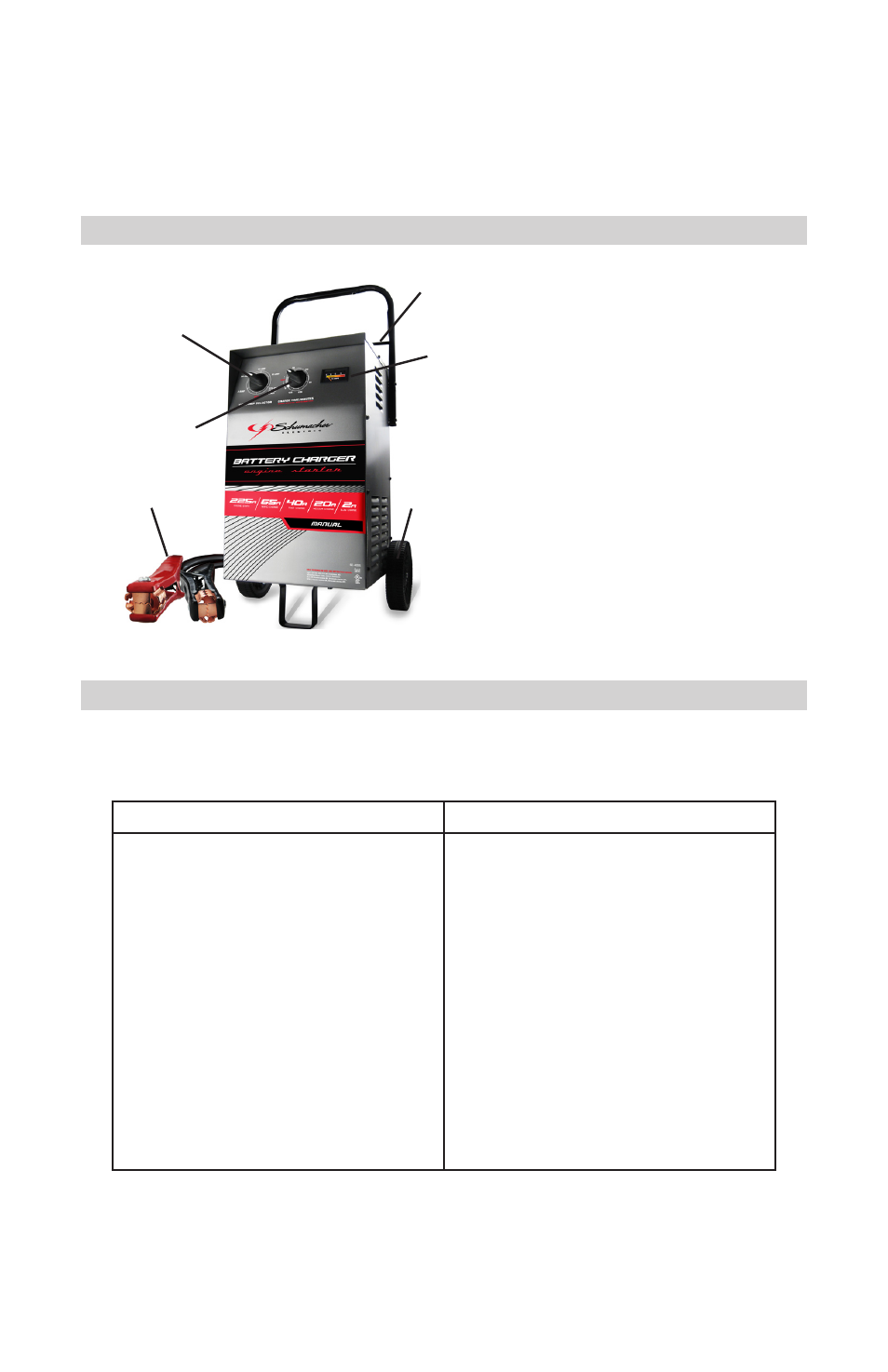

FEATURES 9.
Ammeter 1.
Fiberglass Clip Rod 2.
Clips 3.
Charge Rate Selector Switch 4.
Timer 5.
Wheel 6.
2
4
5
1
3 6
ASSEMBLY INSTRUCTIONS 10.
It is important to fully assemble your charger before use. Follow these 10.1
instructions for assembly.
PARTS TOOLS NEEDED
(2) 10-32, thread cutting
screws
(4) ¼-20, thread cutting
screws
(2) wheels
(1) axle
(2) axle caps
(2) axle brackets
(1) handle
(1) foot
(1) fiberglass clip rod
3/8” wrench (for mounting
foot)
5/16” wrench (for mounting
wheels)
1/4” wrench (for mounting
handle)
Hammer
Screwdriver (flat blade)
