8.25E TREADMILL
www.smoothfitness.co.uk
ASSEMBLY

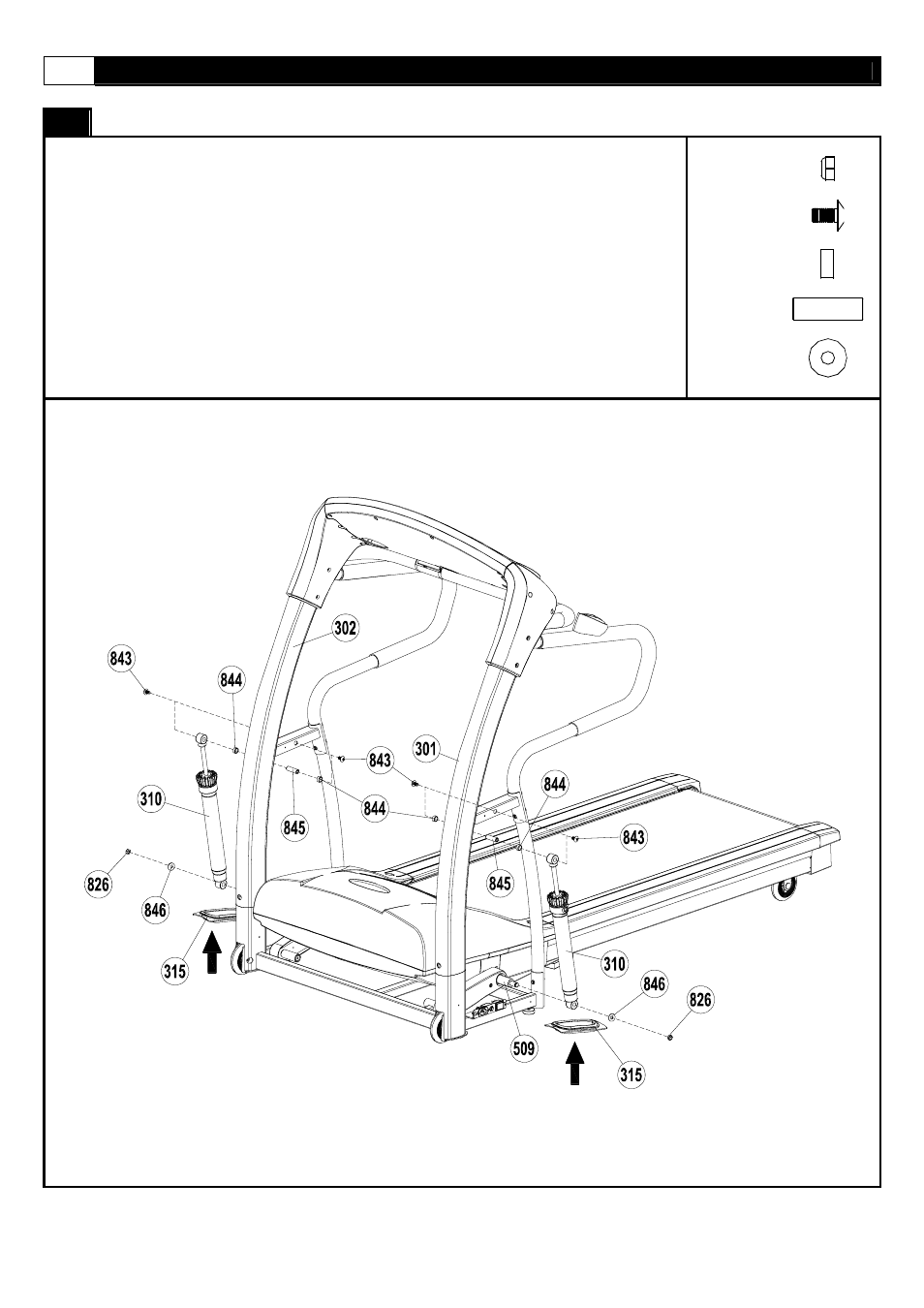

STEP 6:
Put Adjustable Cylinder Cover – Upper
（315）into Adjustable Cylinder (310). Attach the Adjustable
Cylinder (310) to the Left Upright (301) and secure with two Plastic Spacers (844), one 13 x 42mm
Bolt (845) and two
M8 × 15mm Allen Head Bolt
(843).Upper , one Washer
（846）and one Nylon Nut
（826）bottom. Repeat this procedure on the Right Upright (302).
826
X2
843
X4
844
X4
845
X2
846
X2
