Assembly – Smooth Fitness Motorized 8.25E User Manual
Page 22
22
8.25E TREADMILL
www.smoothfitness.co.uk
ASSEMBLY

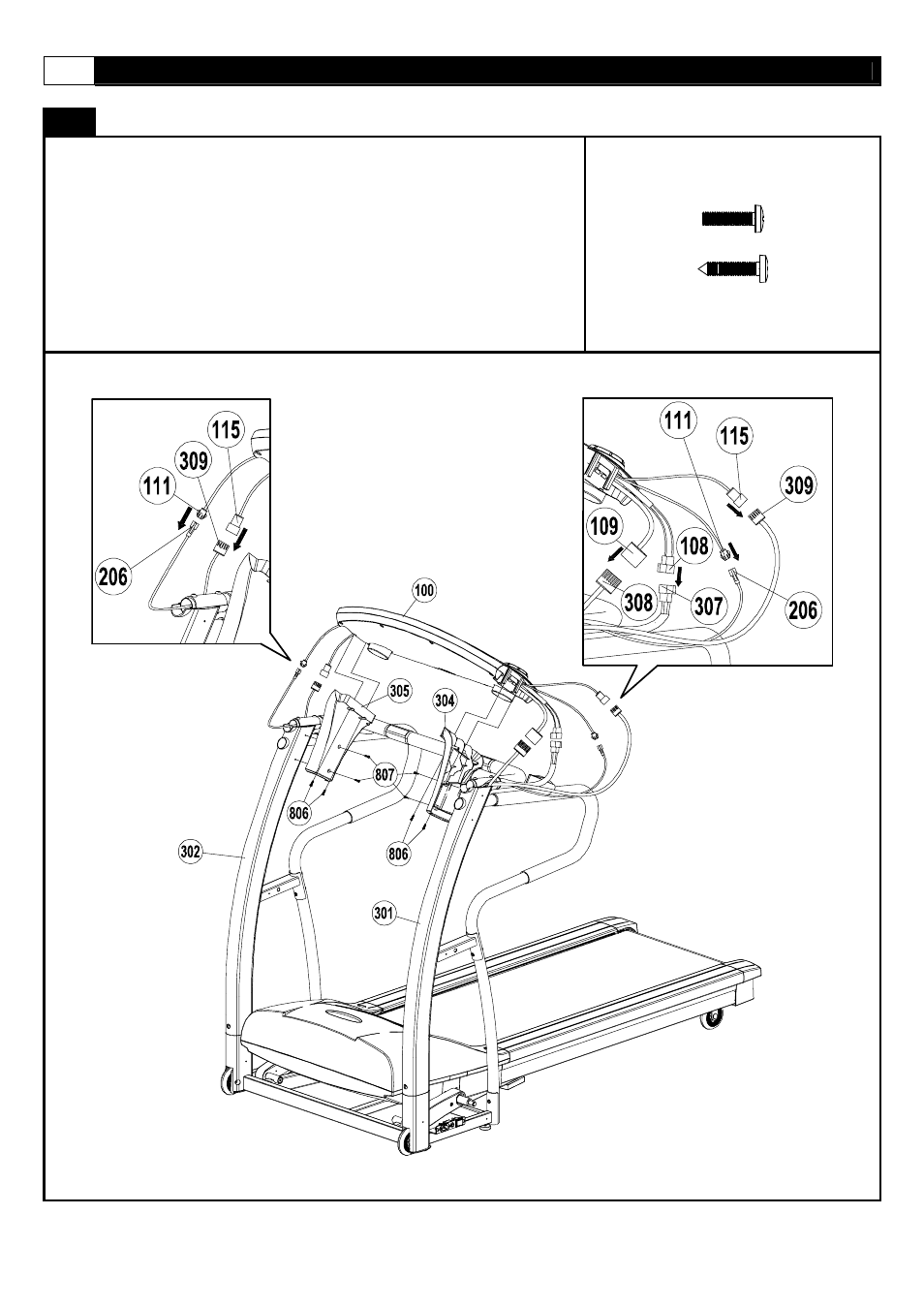

STEP 4:
Connect the Upper Section Computer Wire (109) to the Middle Section Computer
Wire (308) and the Upper Section Safety Key Wire (108) to the Middle Section
Safety Key Wire (307).
Connect the Upper Section Hand Pulse Wires (111) to Lower Section Wires (206)
and Upper Section Motion Control Wires (115) to Lower Section Wires (309) for
each side.
Attach the Upright Cover RL (305) and Upright Cover LR (304). Secure using four #8
x 19mm Screws (806) and four #8 x 19mm Metal Screws (807).
806
X4
807
x4
