ENGLISH
Step 9: Hang the Television onto the Wall Plate
CAUTION: Some televisions may require two people to lift. Sanus is not responsible for personal injury or product damage.
CAUTION: The Monitor Brackets must hang on the left and right extension panels of the Wall Plate Assembly, they can not
hang directly on the center plate.
NOTE: For the Low Profile Monitor Bracket, make sure the latch is in the open position.

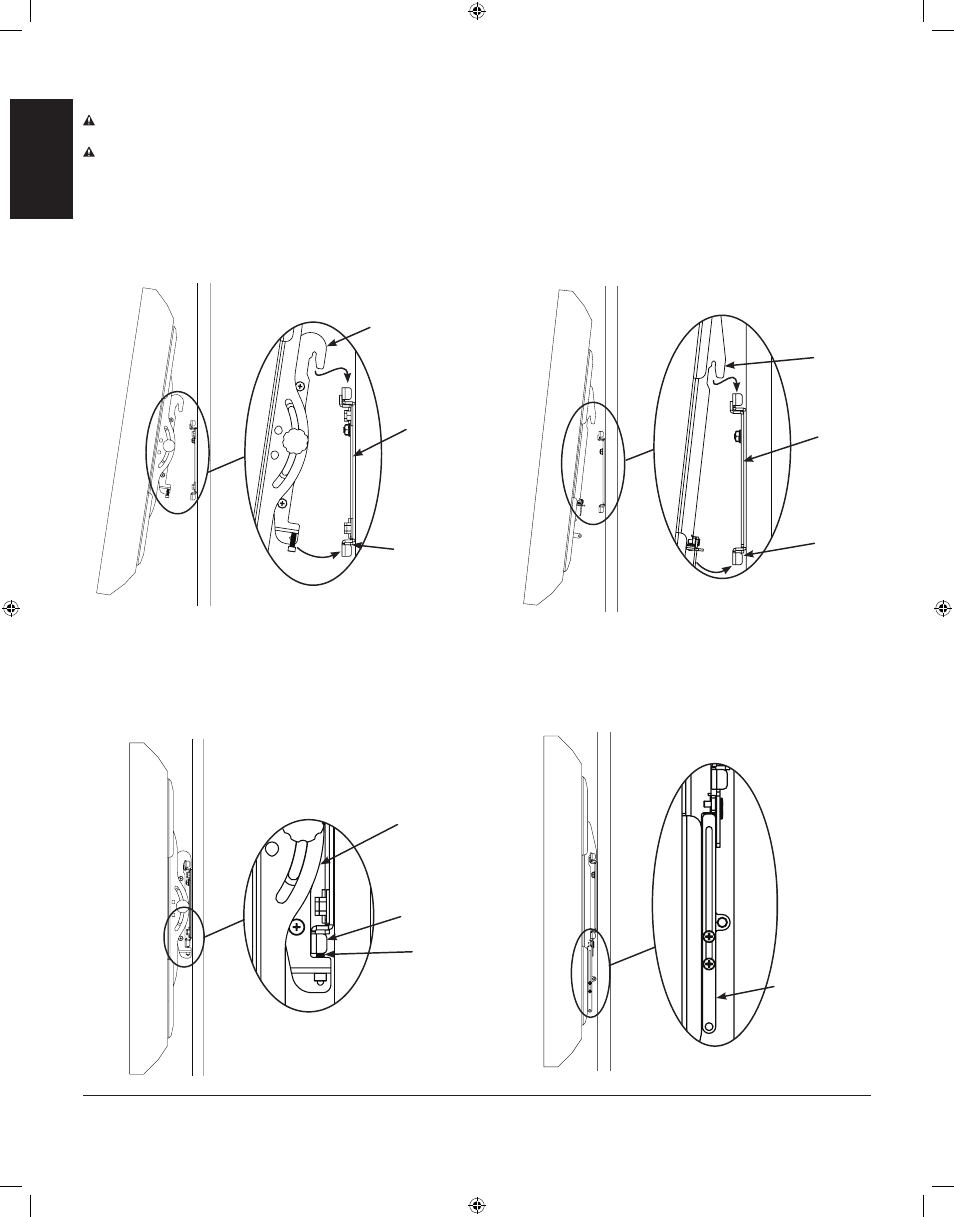

Hook the Tilting Monitor Brackets ( D,E) as shown in Diagram 9A, or the Low Profile Monitor Brackets (F) as shown in Diagram 9B over the
top of the Wall Plate Assembly ( A); then, let the bottom of the Monitor Brackets rotate in under the bottom of the Wall Plate Assembly.
Diagram 9A
D,E
Diagram 9B
A
Bottom
Tab
Bottom
Tab
D,E
I
F
A
Bottom
Tab
Latch
Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 USA
Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com
On the Tilting Monitor Brackets ( D,E) tighten Safety Bolts (I) with the Allen Key (J) so that they sit behind the bottom tab on the Wall Plate
Assembly ( A) as shown in Diagram 9C or rotate the Latch downward on the Low Profile Monitor Brackets (F) as shown in Diagram 9D.
On Tilting Monitor Brackets ( D,E) only, set tension of the knobs and you are free to adjust your new flat panel television without having to
re-tighten the knobs.
Diagram 9C Diagram 9D
