Cylinders for Schlage Locksets
Cylinder Only Compr. Ring & Spring
9
Concealed Shell Cylinder
Cam for All Functions Except L9060 Outside Cam for L9060 Outside and Most Brands of
Old Black Cast Iron Mortise Locks
Blocking Rings*
L583-254
Classic Conventional
L583-153
Everest & Primus
B502-191
Classic Conventional
B502-948
Everest & Primus
Primus
Primus Primus UL437
Design Function Conventional Primus UL437 Lockout Lockout
All Except Below 30-021 20-793 20-593 20-717** 20-517**
L9060P Outside 26-021 20-701 20-501 20-715** 20-515**
L9485, L9486
30-022* N/A N/A N/A N/A
Hotel Funtions
All Except Below 30-004 20-789 20-589 N/A N/A
L9080P Outside 26-023 N/A N/A N/A N/A
L9485, L9486
30-005* N/A N/A N/A N/A
Hotel Funtions
All Except Below 30-001 20-787 20-587 20-717 20-517
L9060P Outside 20-001 20-700 20-500 20-715 20-515
L9485, L9486
30-002* N/A N/A N/A N/A
Hotel Funtions

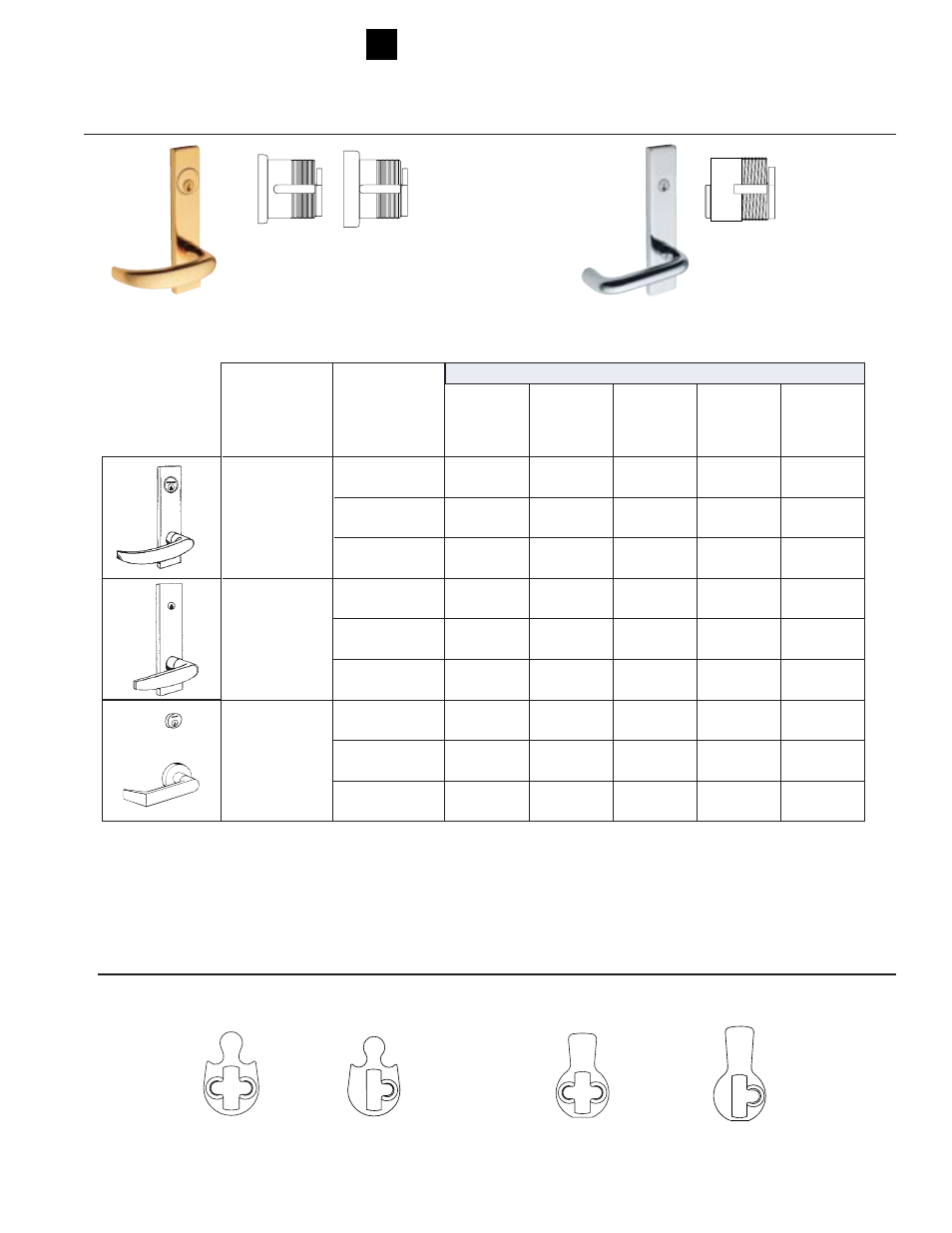

Cylinders for Schlage L-Series Mortise Locks
Cylinder Mechanism
* Specify door hand for hotel function cylinders.
** Discard compression ring for Lockout cylinders with escutcheon trim.
L & N
Escutcheons
(cylinders and
spring only)
L Escutcheon
with concealed
shell cylinder
(C suffix)
Sectional Trim
(cylinder with
compression ring
& spring)
Notes 1. Available 605, 606, 612, 613, 625, 626, 629, and 630 finish. Concealed shell cylinders available 606 and 626 only.
2. To differentiate between Classic and Everest, specify keyway. Example: C or CP (Classic), C123 (Everest).Everest C123 keyway standard.
3. 1
1 / 8 ˝ length standard. Optional lengths available in 1 / 8 ˝ (4mm) increments up to 1 3 / 4 ˝ (44mm).
4. To order less Schlage logo, specify with K510-612 faceplate.
5. Lockout keys must be ordered separately and lockout cylinders will not be master keyed by Schlage.
6. Specify LKB if 0-bitted Primus cylinders are required less key blanks.
C Y L I N D E R S , K E Y S A N D K E Y C O N T R O L
