watch

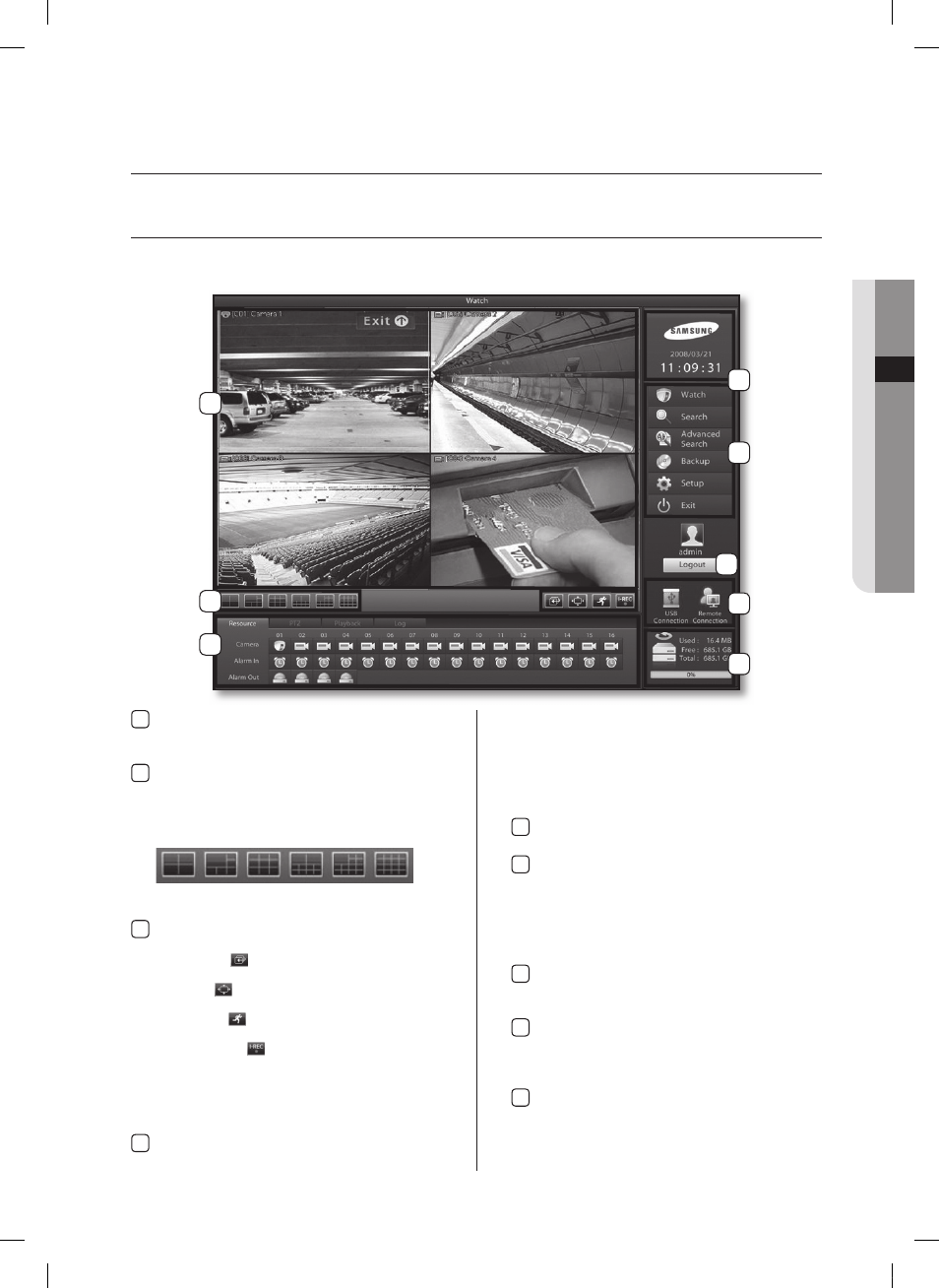

LIVE WATCH SCREEN
Live Watch supports full screen and various split-screen confi gurations. From Live Watch, you will be able to control PTZ, perform 1ch
instant playback and make a backup. The buttons located within the watch screen also provide access to the other menus.(search,
setup, etc).
1 Video Display window
Displays the live video feeds on screen. Simply drag
and drop a camera channel to move a video feed.
2 Split-screen Buttons
These buttons indicate 4-, 6-, 9-, 10-, 13-, and
16-split screen modes. Continue clicking on the
same mode to sequentially cycle through the
other camera channels in the same split.
3 Switch Screen/Full Screen/Switch to Live/In-
stant Recording.
Switch Screen(
)
: Automatically cycles through the
video feeds.
Full Screen(
)
: Expands the video feeds to a full screen
view.
Switch to Live(
)
: Reverts a 1-channel playback screen
back to the live feed screen.
Instant Recording(
)
: Starts the instant recording of the
selected channels. In the event
of an emergency, clicking on this
button initiates selected camera
channels to start continuous
recording
4 Resource/pTZ/playback/Log
Resource: Select and view the status of cameras,
sensors, alarms, and other devices
connected to the DVR.
PTZ: Displays PTZ controls.
Playback: Displays the controls for 1 channel
playback.
Log: Displays information on the 100 most recent events
that have transpired during DVR system operation.
5 Clock
Displays the current time of your DVR system.
6 Menu Buttons
Watch: Accesses the Live Watch screen.
Search: Accesses the Search screen.
Advanced Search: Accesses the Advanced Search screen.
Backup: Accesses the Backup screen.
Setup: Accesses the System Setup screen.
Exit: Terminates the DVR program/system.
7 Login/Logout
Launches the login window for user ID and pass-
word entry.
8 USB Connection and Remote Connection
Displays the connection status of the USB stor-
age device and the connection status of a remote
PC. Blue icon indicates a connected status.
9 hard Drive Capacity
Displays the total hard drive space of the system,
the amount of space used, and the amount of
space available.
7
1
2
4
9
8
6
5
4-
Screen
6-
Screen
9-
Screen
10-
Screen
13-
Screen
16-
Screen
