Getting Star
ted
21 GB
DAV-S400 4-240-074-12(1)
Step 3: TV and Audio/Video Component Hookups

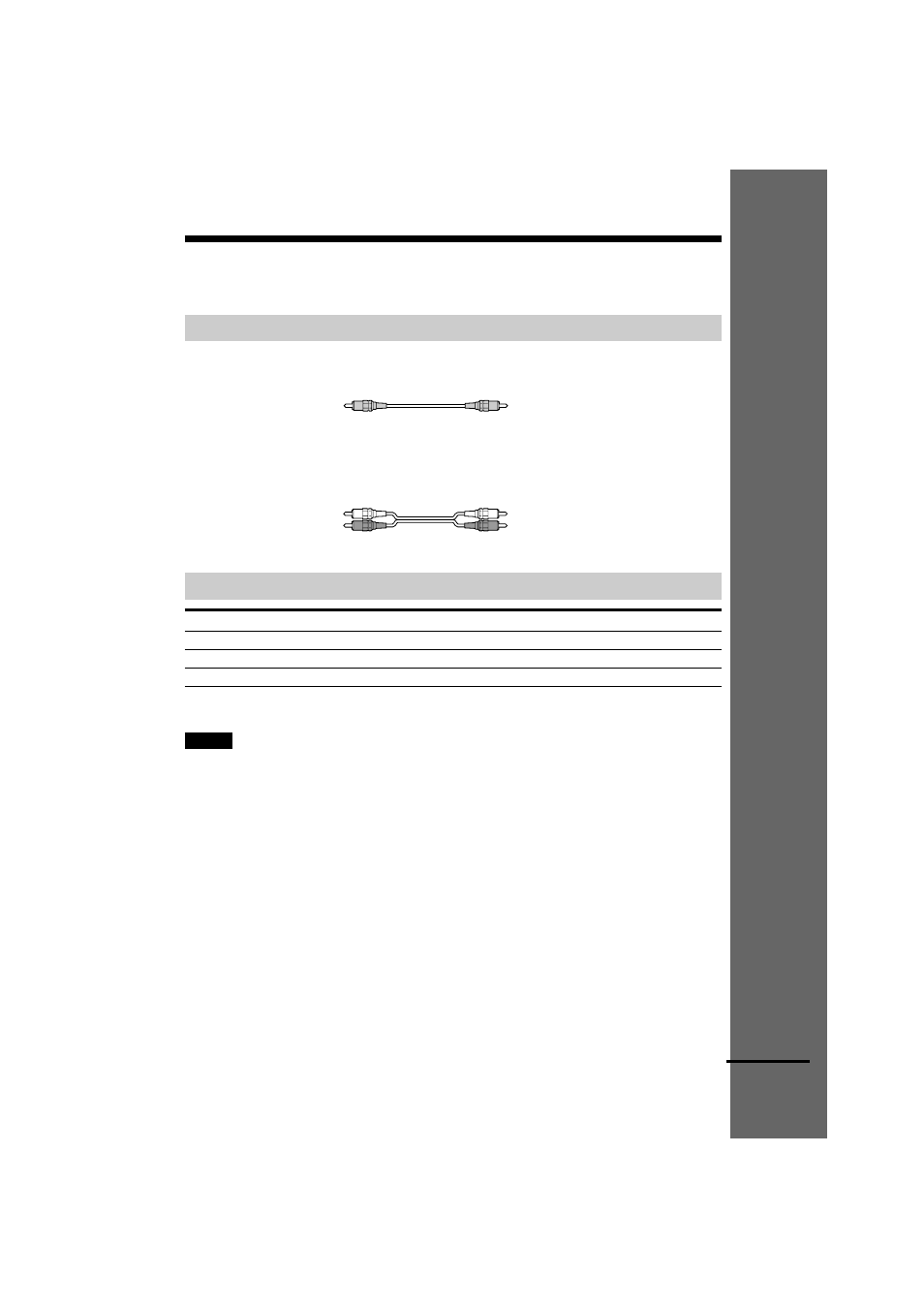

Required cords
Video cord for connecting a TV monitor
Audio cord (not supplied)
When connecting a cord, be sure to match the colour-coded pins to the appropriate jacks on the
components.
Jacks for connecting video components
Connect a To the
TV monitor MONITOR OUT jack
VCR AUDIO 1 jacks
MD deck AUDIO 2 jacks
Notes
• When you select AUDIO 1 using the FUNCTION button, the signal is output from the front L/R speakers, but
not from the AUDIO 1 AUDIO OUT L/R jacks.
• When you use the AUDIO 1 line outputs, please set the system to 2CH STEREO mode. If the system is not in
2CH STEREO mode, the line outputs may not function properly.
Red (R/audio)
Yellow Yellow
White (L/audio)
Red (R/audio)
White (L/audio)
continued
