Getting Star
ted
19 GB
DAV-S400 4-240-074-12(1)
AM
COAXIAL
FM
75 Ω
L
R
L
R OPTICAL
DIGITAL IN VIDEO OUT AUDIO OUT AUDIO IN AUDIO IN SPEAKER
FRONT R
REAR R
CENTER
WOOFER
FRONT L
REAR L
A
N
T
E
N
N
A
AUDIO 1 AUDIO 2
MONITOR
OUT
IMPEDANCE USE WOOFER: 3 Ω EXCEPT WOOFER: 6Ω

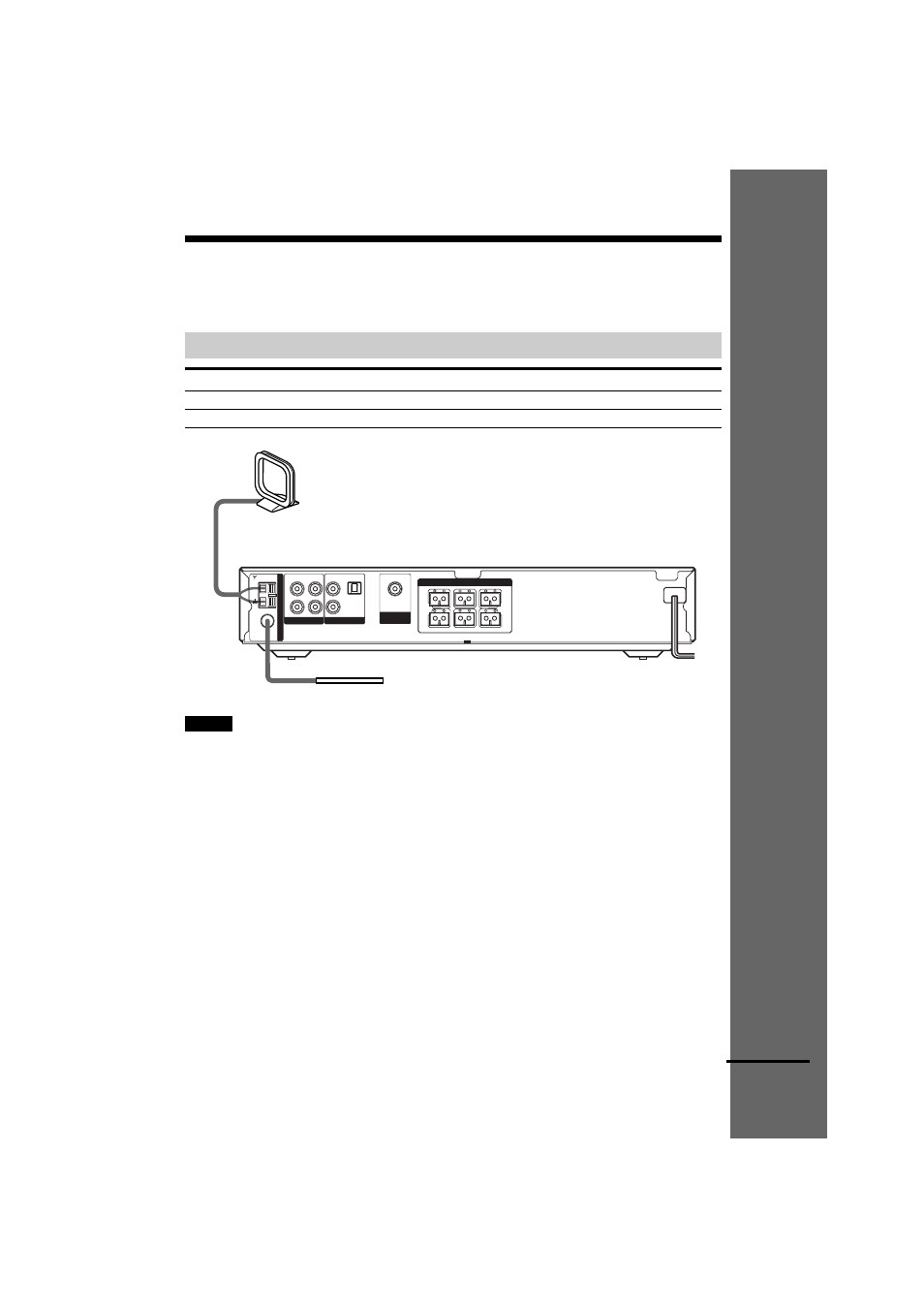

Step 2: Antenna Hookups
Connect the supplied AM/FM antennas to listen to the radio.
Terminals for connecting the antennas
Connect the To the
AM loop antenna AM terminals
FM wire antenna FM 75 Ω COAXIAL terminal
Notes
• To prevent noise pickup, keep the AM loop antenna away from the system and other components.
• Be sure to fully extend the FM wire antenna.
• After connecting the FM wire antenna, keep it as horizontal as possible.
AM loop antenna
FM wire antenna
continued
