Hardware Setup

1. Connecting Computers: Connect computers directly to the

Barricade on ports 1-4 on the front panel. If you have more than 4

computers to plug in, connect a hub or a switch (using its uplink port)

and connect additional computers to that device.

2. Connecting a Cable Modem or DSL Modem: Connect your Cable

or DSL modem to the WAN port on the rear panel.

3. Connecting a Dial-up Modem: If you use an external dial-up

modem or ISDN modem, connect it to the COM port on the rear

panel.

4. Connecting a Printer: If you have a printer that you want to share

between computers, connect it to the Printer port using a standard

parallel printer cable.

5. Power: Plug the power cord into the power jack.

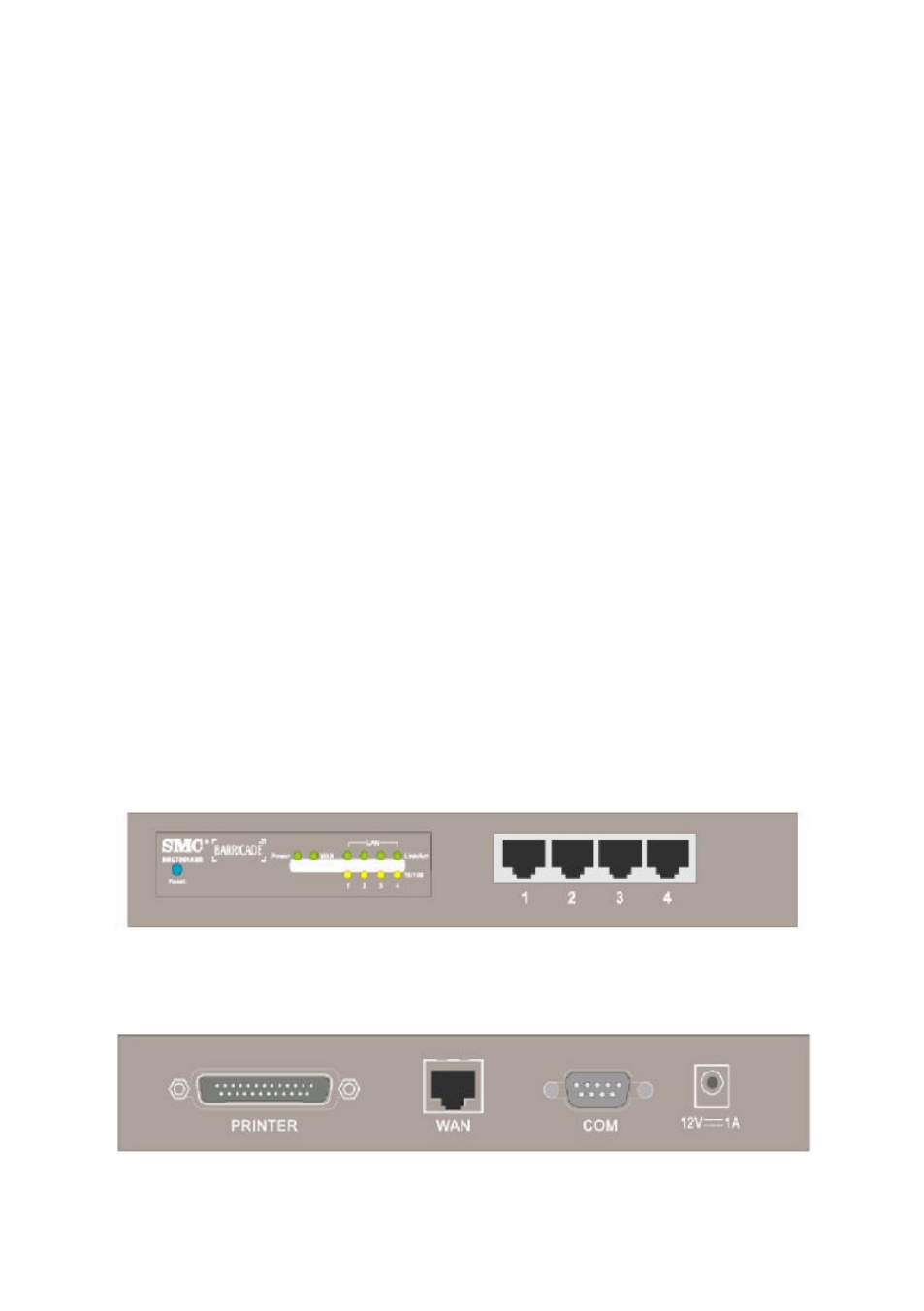

SMC7004ABR – Front Panel

SMC7004ABR – Rear Panel
