Chapter 2 Pin Assignment
2.1 Pin Assignment
Figure 2.1 shows the pin definitions of FV-M7. Table 2.1 describes the corresponding
definitions for pins.

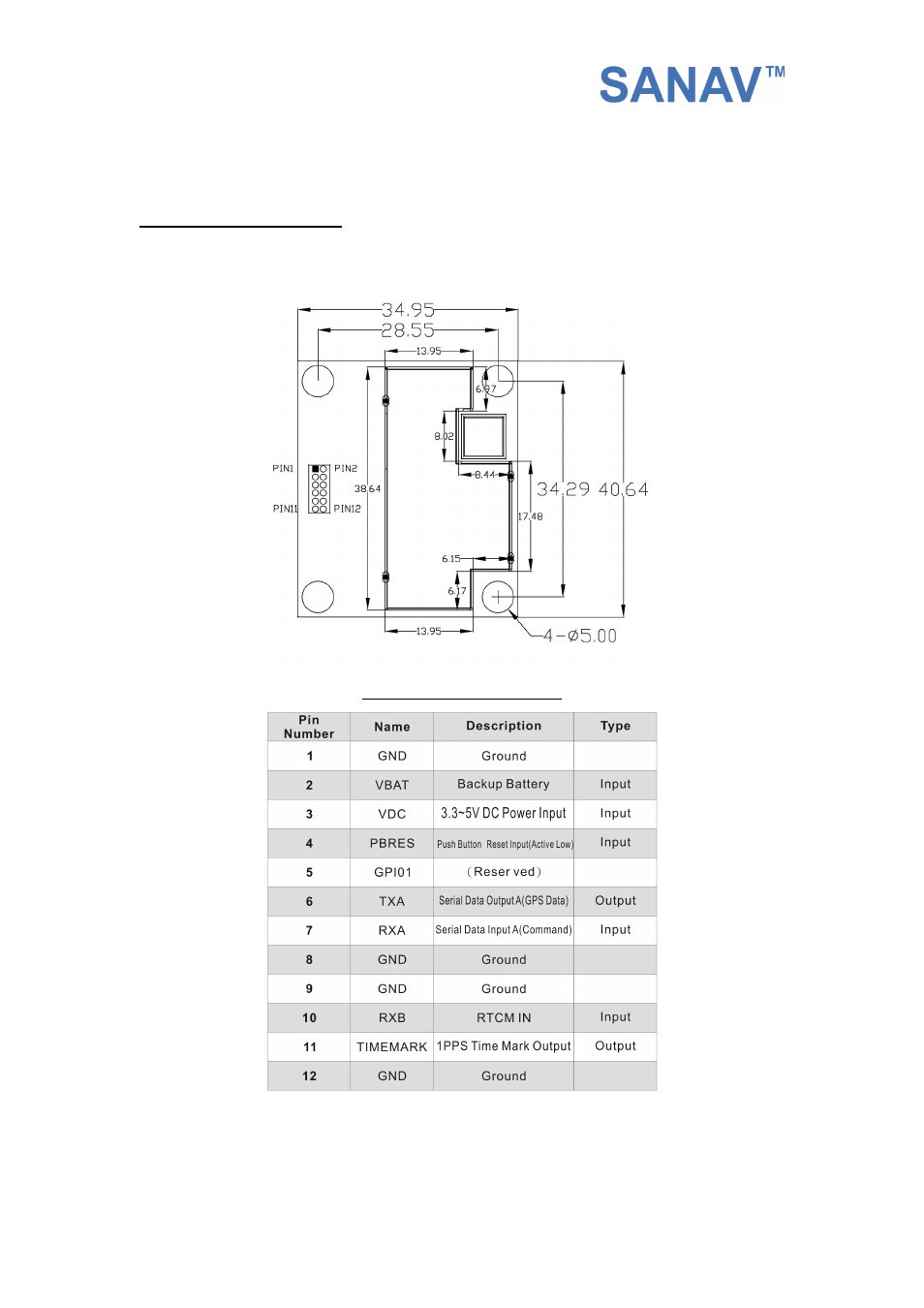

Figure 2.1 FV-M7 Pin definitions
